High Precision Auto Carton Packing Machine For Printing Packaging 7.2mm Thicknes
High Precision Auto Carton Packing Machine For Printing Packaging 7.2mm Thicknes
High Precision Auto Carton Packing Machine For Printing Packaging 7.2mm Thicknes
High Precision Auto Carton Packing Machine For Printing Packaging 7.2mm Thicknes
High Precision Auto Carton Packing Machine For Printing Packaging 7.2mm Thicknes
High Precision Auto Carton Packing Machine For Printing Packaging 7.2mm Thicknes
Specifications
Place of Origin :
HeBei Province,China
Brand Name :
XINTIAN
Certification :
CE,ISO9001:2000
Model Number :
XT-D
MOQ :
1set
Price :
$10000-$150000
Packaging Details :
pallet
Delivery Time :
30-90days
Payment Terms :
T/T or L/C
Supply Ability :
2set/month
Description

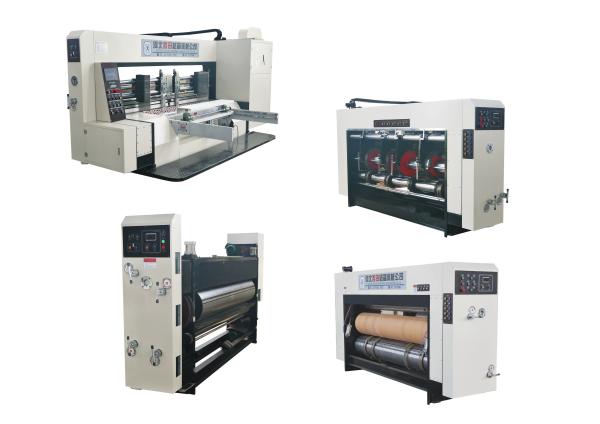

High Precision Auto Carton Packing Machine For Printing Packaging 7.2mm Thicknes

Specifications

1, Whole machine electric parts are domestic famous brand with good and steady quality

2, Tempering is used to decrease metal internal force in complete machine baffles and key parts, and these parts are made by high-precision processing center and grinded by numeric-control grinder.

3, All the transmission axles and rollers are made by high-quality steel, and processed by tempering and dynamic balance, plated with rigid chrome and grinded surface

4, All the transmission gears are made by the 45# alloy steel, and are grinded after heat-treatment, which maintains high topping precision

5, The whole machine adopts spray lubrication, equipped with double oil pipe balance system.

6, Optional equipments: presetting adjustment function, feeding, printing, slotting, all featuring automatic zero setting and memory reposition

7, Whole machine working interval adjustment, self-lock worm wheel and worm device, fast and convenient

8, Vacuum adsorption, kick or lead edge feeding to customers’ request

Option: Ceramic anilox roller and stacker Machine

Main technical parameter

SERIAL

WYAZS NAME

UNIT

WYAZS

1200×1800/2200

1400×1800/2600

1

Inboard width

mm

2200

2600

2600

3000

2

Max. coverage size

mm

1270×2000

1270×2400

1470×2400

1470×2800

3

Max. printing area

mm

1200×1800

1200×2200

1400×2200

1400×2600

4

Min.finish size

mm

320×640

320×640

380×720

380×720

5

Thickness of

printing plate

mm

7.2

7.2

7.2

7.2

6

Max. speed

Pieces/min

140

140

130

130

7

Economic speed

Pieces/min

110

110

100

100

8

Topping precision

mm

±0.5

±0.5

±0.5

±0.5

9

Slotting precision

mm

±1.5

±1.5

±1.5

±1.5

10

Max.slotting depth

mm

300

300

350

350

11

Min.slotting interval

mm

Clockwise:

160×160×160×160

260 ×60 ×260 ×60

Clockwise:

180×180×180×180

280 ×80 ×280× 80

12

Total Power

kw

18.5~30

18.5~30

13

Weight

T

18~22

20~24

20~24

22~26

14

Whole machine

size

mm

13000× 4100 ×3200

13000× 4500 ×3200

13000× 4500 ×3200

13000× 4900 ×3200
