Specifications
Brand Name :
Cartesysj
Model Number :
CTXX-10
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
$4,323.00 - $47,131.00/sets
Payment Terms :
L/C,T/T
Supply Ability :
1 Set/Sets per Month
Delivery Time :
20~25 working days
Packaging Details :
Wooden packing
Name :
Suspension Tester
Car Fitment :
BMW - Europe
Warranty :
12 Months
Port :
Guangzhou
Model Name :
CTZN-3
Max. pass axle load (KG) :
3000KG
Max. test axle load (KG) :
3000kg
Vibration Frequency (HZ) :
≧23
Applicable Tread (Inner Width/Outer Width) (mm) :
800/2700
Motor Power (KW) :
2×2.2
Power Supply :
AC380V 50Hz
Description
Cartesykj Vehicle Automotive shock absorption and damping tester suspension tester
Product description

The automobile shock absorption and damping tester uses a parallelogram mechanical excitation device to fully generate resonance in the automobile suspension system. Calculate the damping coefficient of the shock absorber through computer AI algorithms to quickly and accurately analyze and evaluate the performance of the car suspension. At the same time, chassis noise detection can be performed. It is one of the essential equipment for solving smart chassis faults.

Main features and characteristics
  • The body adopts frame welding, with high strength and easy installation
  • AI intelligent and accurate calculation of damping coefficient
  • Quickly and accurately determine the reliability and defects of shock absorbers
  • Equipment intelligent sensing, automatic start detection program

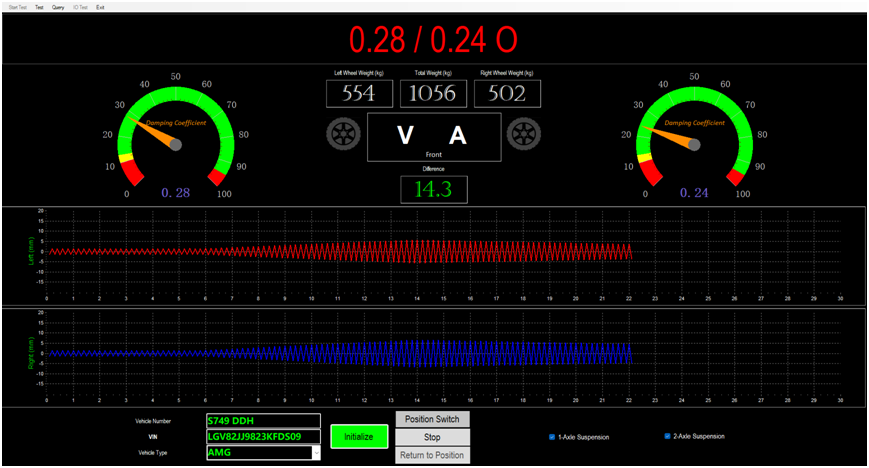

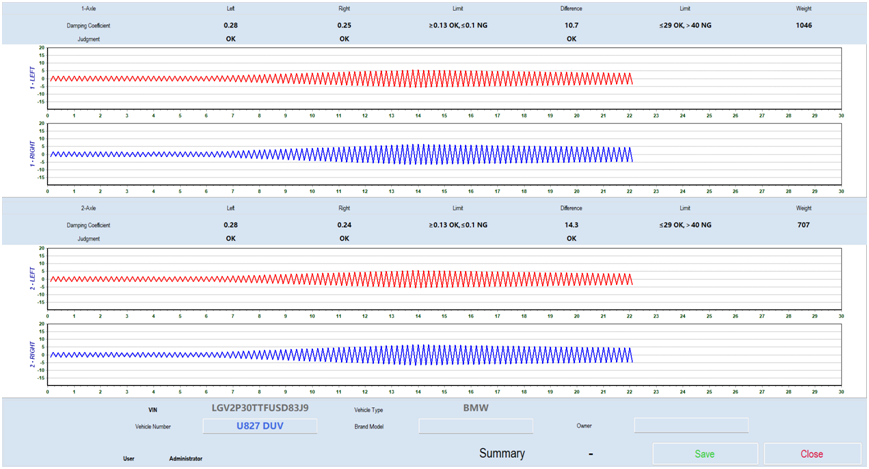

  • The vibration curve is intuitive and can be scientifically analyzed to evaluate the suspension performance
  • Latest structural design, more accurate data, and better repeatability
  • Standard computer control, software that can realize the D values and error differences of each round, etc
  • Compliant with EN1210-1/-2:2014/30ECI: EN61000-6-3 standard
Technical Specifications
model CTZN-3
Max.passing axle laod(kg) 3000
Max. testing axle laod(kg) 2200
Vibration frequency (Hz) 2—11.5
Indication accurancy 2%
amplitude of vibration(mm) 6
measurement stroke(mm) 72
Motor power(kw) 2×1.1
Wheel base(mm) 890/2250
vlotage AC380V 50Hz
Size (mm) 2320×800×280
