Specifications
Brand Name :
Cartesy
Model Number :
CTJX-3
Certification :
ISO
Place of Origin :
Guangdong,CHIna
MOQ :
1 unit
Price :
$2,300.00 - $5,000.00/sets
Payment Terms :
L/C,T/T
Supply Ability :
400 Set/Sets per Month
Delivery Time :
20-25 working days
Packaging Details :
Wooden packing
Name :
Vehicle Play Detector
Type :
Engine Analyzer
Voltage :
AC380
Car Fitment :
BMW - Europe
Power :
2.2KW
Applicable Models :
For cars
Color :
Blue or as your request
Version :
Newest
Capacity :
3T
Plate dimension (mm) :
500×750
Plate moving speed(mm/s) :
60-80
Weight (kg) :
2×470
Operation method :
Wireless remote control
Working pattern :
Hydraulic pressure drive
Port :
Guangzhou
Warranty :
24 Months
Description
Cartesykj CTJX-3C low profile ultra-thin Vehicle Play Detector Joint Play Detector Vehicle Inspection Equipment For Cars

Introduction:

The tester can easily check the gap between the car suspension and steering system parts. The car’s front wheel or rear wheel on two pieces of testing plates. We can use a remote controller to make the plates do longitudinal and latitudinal movements. it can check the gap between the car rod, ball head, steering arms, wheel bearing, etc.

Main features:Car- play detector foundation.pdf

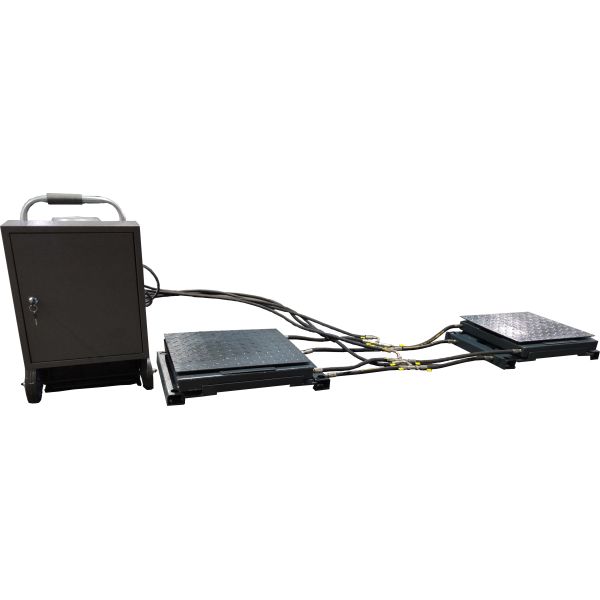

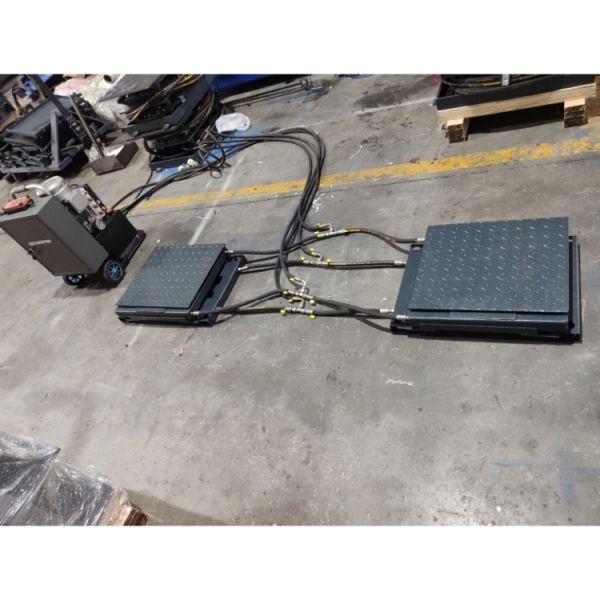

The tester is convenient to check the fitting clearance between the parts of the automobile suspension and steering system. Place the front or rear wheels of the car on two test boards of the machine,It can remotely control two test plates to do longitudinal and lateral movement, and can check the clearance of automobile horizontal tie rod, ball head, steering arm, Xuan wheel bearing, etc. The play detector, with two moving plates of play detector, is assisted to verify the joint play condition in a vehicle chassis. The play detector is made by three parts: 2x moving plates, hydraulic system and electric control system (with wireless remote & torch)

Hydraulic unit increases user convenience

Extra heavy duty structure, robust and lower noise design

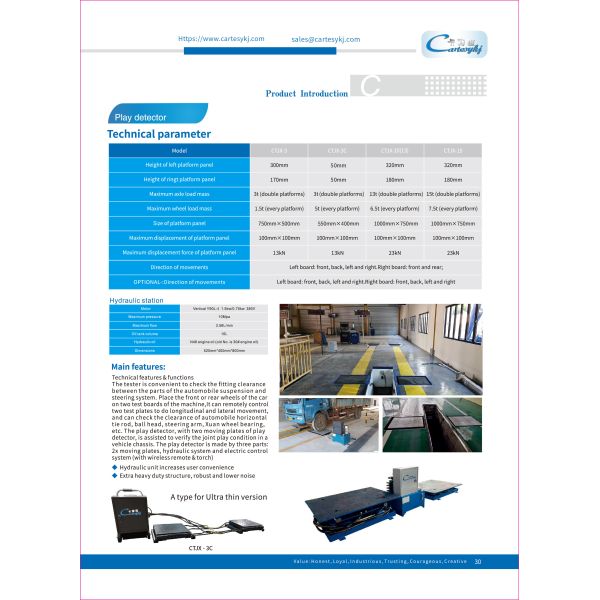

Technical parameters:car-play detector.pdf

Maximum axle load(kg) 10000/13000 Working pattern Hydraulic pressure drive
Plate dimension (mm) 1000×750 Supply voltage (V) AC380
Plate moving scope (mm) ±50 Motor power (kw) 3
Plate Max. moving force (kN) 20 Weight (kg) 2×470
Plate moving speed(mm/s) 60-80 Operation method Wireless remote control
