Specifications
Model Number :
CTZG
Payment Terms :
L/C,T/T
Car Fitment :
BMW - Europe
Port :
Guangzhou
Supply Ability :
200 Set/Sets per Month
Name :
Free roller
Price :
$2,000.00 - $13,000.00/sets
Applicable Models :
for cars
Warranty :
24 Months
MOQ :
1 unit
Delivery Time :
20-25 working days
Brand Name :
Cartesykj
Certification :
ISO CE
Place of Origin :
China
Packaging Details :
Wooden packing
Description
Cartesy Pneumati Free Roller Set of Bogie Rollers is used in connection with brake tester or speedometer 215mm diameter
Product Overview

Cartesy Pneumatic CTZG-15 Free Roller for Vehicle Inspection Equipment with 15T capacity, designed specifically for working with AWD or 4WD vehicles.

Main Features
  • Auxiliary equipment for double rear axle vehicle detection
  • Roller surface compound heat treatment for high hardness
  • High wear resistance and corrosion resistance
Technical Parameters
Parameter Specification
Model CTZG
Roller diameter * length 190mm * 1100mm
Tread (inside/outside) 700/2900 mm
Locking device Pneumatic, air cylinder
Power supply

Technical Data

Mechanics
Length x Width x Height mm 770 x 3300 x 491
Roller diameter mm 215
Roller length mm 1000
Number of rollers 2 x 3
Roller distance mm 225
Test width min.‑max. mm 800‑2800
Test speed max. km/h 90
Test weight t 15
Pneumatic roller brake 6‑fold
Air pressure max. bar 8
Weight kg approx. 850

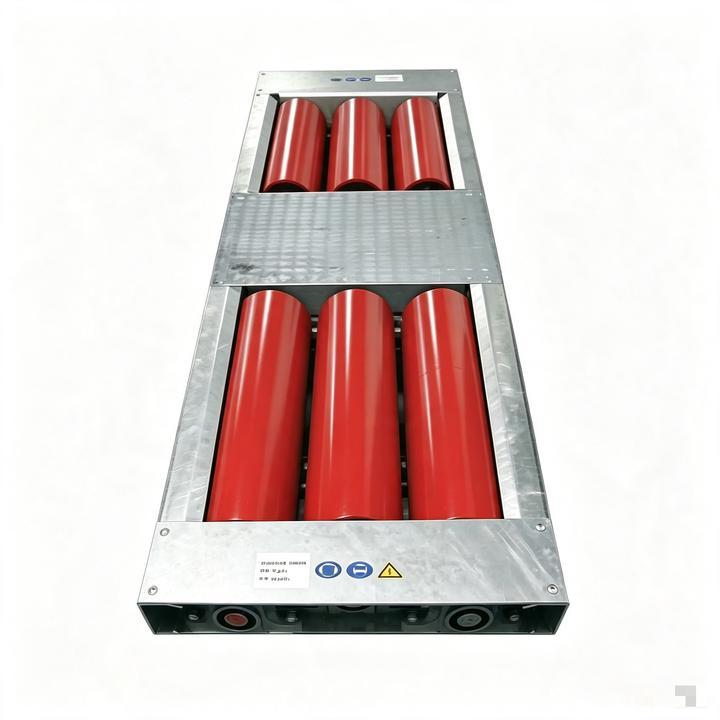

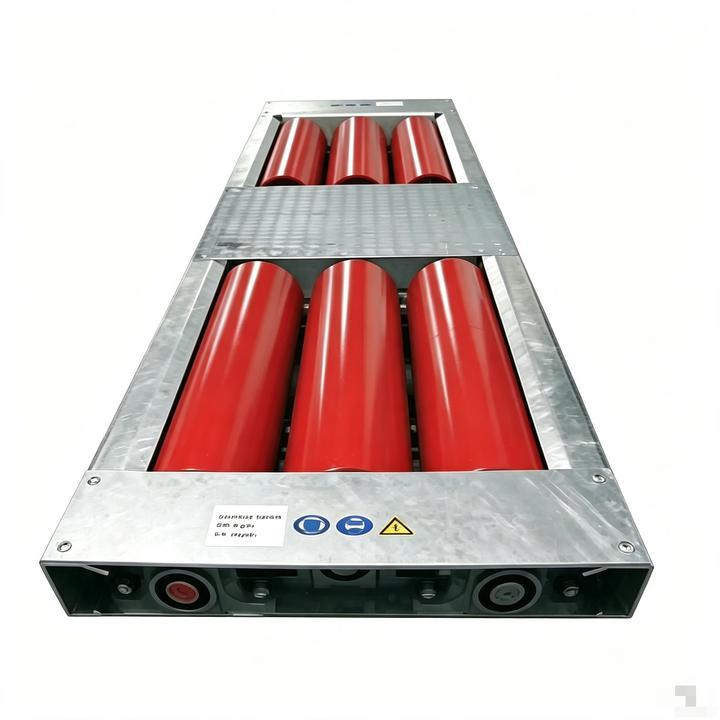

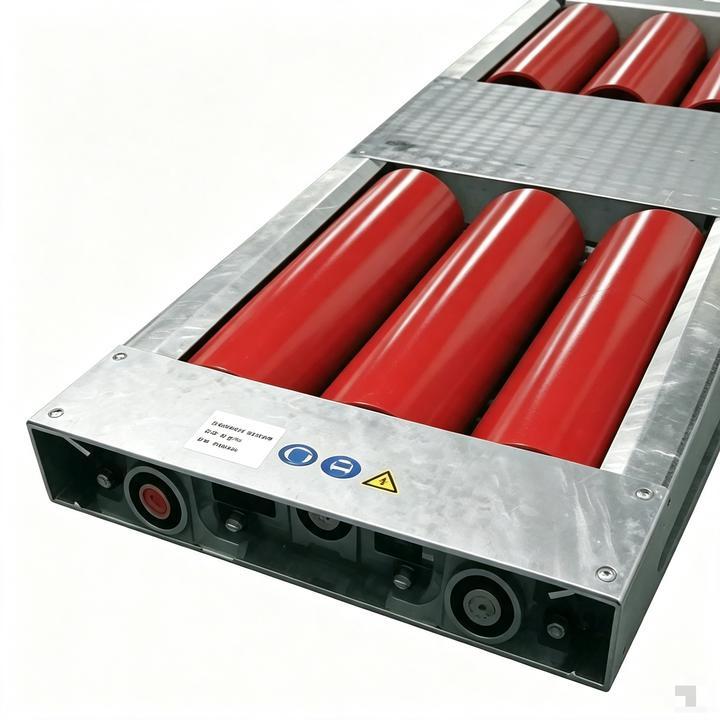

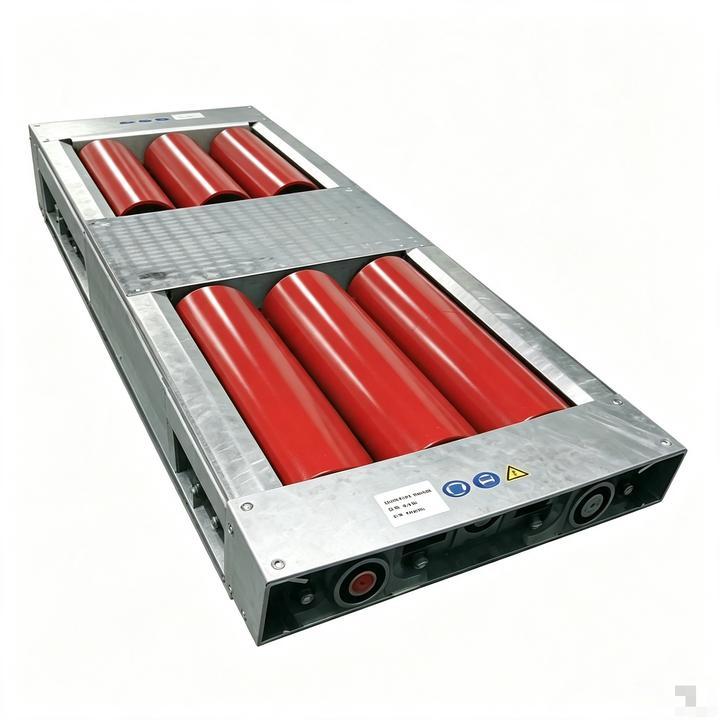

Product Images

Cartesy Pneumati Free Roller Set of Bogie Rollers is used in connection with brake tester or speedometer 215mm diameter

Cartesy Pneumati Free Roller Set of Bogie Rollers is used in connection with brake tester or speedometer 215mm diameter

Cartesy Pneumati Free Roller Set of Bogie Rollers is used in connection with brake tester or speedometer 215mm diameter

Cartesy Pneumati Free Roller Set of Bogie Rollers is used in connection with brake tester or speedometer 215mm diameter

Cartesy Pneumati Free Roller Set of Bogie Rollers is used in connection with brake tester or speedometer 215mm diameter Cartesy Pneumati Free Roller Set of Bogie Rollers is used in connection with brake tester or speedometer 215mm diameter Cartesy Pneumati Free Roller Set of Bogie Rollers is used in connection with brake tester or speedometer 215mm diameter Cartesy Pneumati Free Roller Set of Bogie Rollers is used in connection with brake tester or speedometer 215mm diameter Cartesy Pneumati Free Roller Set of Bogie Rollers is used in connection with brake tester or speedometer 215mm diameter Cartesy Pneumati Free Roller Set of Bogie Rollers is used in connection with brake tester or speedometer 215mm diameter Cartesy Pneumati Free Roller Set of Bogie Rollers is used in connection with brake tester or speedometer 215mm diameter Cartesy Pneumati Free Roller Set of Bogie Rollers is used in connection with brake tester or speedometer 215mm diameter Cartesy Pneumati Free Roller Set of Bogie Rollers is used in connection with brake tester or speedometer 215mm diameter Cartesy Pneumati Free Roller Set of Bogie Rollers is used in connection with brake tester or speedometer 215mm diameter
Frequently Asked Questions
Q1. What is your terms of packing?
A: Generally, we pack our goods in wooden case per set.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB
Q4. How about your delivery time?
A: Generally, it will take 10 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8. How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
