15m Bus Paint Booths Semi Truck Paint Booth Spray Room For Coating
15m Bus Paint Booths Semi Truck Paint Booth Spray Room For Coating
15m Bus Paint Booths Semi Truck Paint Booth Spray Room For Coating
15m Bus Paint Booths Semi Truck Paint Booth Spray Room For Coating
Specifications
Brand Name :
SINOCAR
Model Number :
SB-007
Certification :
CE/CCC/ISO 9001
Place of Origin :
Shanghai, China
MOQ :
1
Price :
Price private chat to get
Payment Terms :
T/T, Western Union
Supply Ability :
100 PCS Per Month
Delivery Time :
5-8 weeks
Packaging Details :
Standard Package
Product name :
Bus Spray Booth
Power :
84kw
External Size :
15200*6300*5300mm
Internal Size :
15000*5000*4800mm
Voltage :
220V/380V
Warranty :
12 Months
Diesel heating (optional) :
400000Kcal/h
Weight and Volume :
6t, 60 CBM
Description

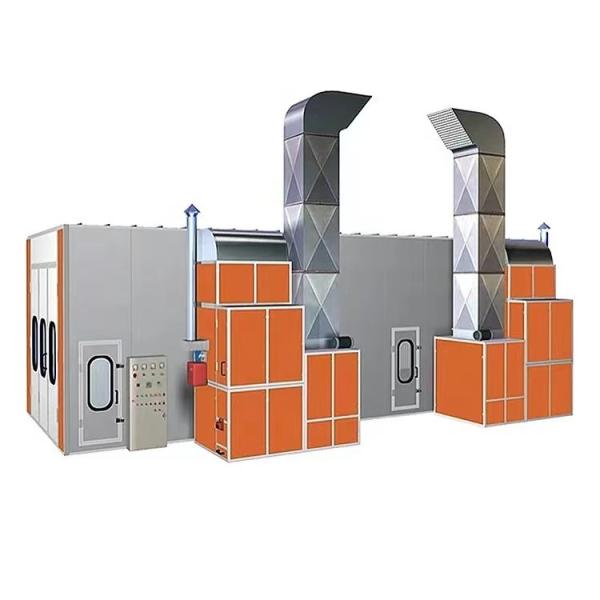

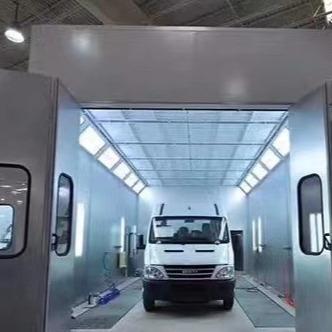

15m Bus Spray Booth Bus paint Booth Spray Truck painting room for Efficient Coating and Customization

Welcome to our state-of-the-art automotive paint booth, the ideal destination for high-quality vehicle coating. Our automotive paint booth utilizes cutting-edge technology and equipment to deliver unparalleled aesthetics and durability to your vehicles.

Features:

  1. Efficient Coating Environment: Our automotive paint booth boasts spacious interiors suitable for vehicles of various sizes and types. Advanced ventilation and air circulation systems ensure even coating distribution while accelerating the drying process, enhancing production efficiency.

  2. Customized Coating: We understand that every vehicle is unique. Whether you require full-body painting, localized repairs, or personalized customization, we can meet your demands to ensure your vehicle boasts a distinctive appearance.

  3. High-Quality Paints: We employ high-quality paints that provide your vehicle with durable, glossy, and vibrant coatings. These paints not only enhance the visual appeal of your vehicle but also effectively shield it from daily wear and harsh weather conditions.

  4. Environmental Awareness: Our automotive paint booth is equipped with advanced emission control and filtration systems, minimizing the release of volatile organic compounds (VOCs) to reduce environmental impact. We are committed to providing eco-friendly coating solutions.

  5. Quality Inspection: At each coating stage, rigorous quality checks are conducted to ensure uniformity, adhesion, and color consistency of the coatings. This ensures that each vehicle receives a satisfying paint finish.

  6. Safety Facilities: Our automotive paint booth is equipped with advanced safety features, including fire alarms, explosion-proof measures, and more, ensuring a secure work environment to protect both employees and equipment.

  7. Experienced Team: With a team of seasoned painting experts, we are well-versed in various coating techniques and vehicle types. They will tailor the best coating approach for your vehicle based on your requirements, ensuring a flawless paint finish.

Technical Parameters:

SINOCAR SB-007(BUS AND TRUCK )
Basement Structure Basement Mount on concret, no floor
Basement Height 0
Ramp no ramp
Booth Cabin Panel 1.Colorful steel skin panel. Rock wool panel fire resistant wall 5cm, two layers 0.35mm steel cover with fire resistant thermal insulation materials in.
2.Galvanized steel roof panel, anti-flame
Front Door/Safety Door Four sheetmetal front door with glass
Safety Door Rock wool panel fire resistant wall without glass
Lighting System LED Lighting LED Ceiling lights:16 groups×3pieces =48pieces ×16W, with powder-coated light box; 16pcs side LED
Filter System Primary Filter The primary filter can capture granules larger than 10μm, filtering rate > 90%
Floor Filter no
Ceiling Filter Ceiling filter can capture granules bigger than 4μm, filtering rate> 98%
Intake&Exhaust System Intake Fan 4×5.5KW YDW double-intake centrifugal fans, total air capacity: 55000m³/h
Exhaust Duct 2*2.2kw outlet fans, Straight tube and bend
Heating System Halogen Infrared Heating 220V/380V,84KW, 28 sets Halogen infrared barking lamps, every set with 3*1KW barking lamps; (Diesel heating: oil burner with 260000Kcal/h, Optional)
Max.Working Temperature 80℃
Heating Up Time 5-8min
Control System Control Panel Intelligent controlling system, lighting switch, spraying, heat spraying, baking, temperature controller, time setting, emergency stop
Functions Spray, Bake, Lighting and Emergency Stop
Size Inner Size

15000*5000*4800 mm
Outer Size

15150*6300*5300 mm
Remarks: Electric and Diesel Heating System are optional according to the requirement.
