Specifications
Brand Name :
SINOCAR
Model Number :
SB-003
Certification :
CE/CCC/ISO 9001
Place of Origin :
Shanghai,China
MOQ :
1 SET
Price :
$6000-$15000
Payment Terms :
T/T, Western Union
Supply Ability :
100 PCS Per Month
Delivery Time :
5-8 weeks
Packaging Details :
Standard Package
Control :
Manual
Working Temperature :
40-80℃
Curing System :
Included
Material :
Steel
Spray Booth :
Included
Safety Door :
Rock Wool Panel Fire Resistant Wall Without Glass
Filter System :
Floor Filter & Celling Filter
inner size :
8900*4650*2800mm (L*W*H)
outer size :
9000*5850*3400mm (L*W*H)
Package size: :
4.2*2.2*2.1m
Description

How to get a quote quickly?

1.Click here to go to the SINOCAR official website:
http://www.carspray-booth.com

2.Click live chat to get a quote now!

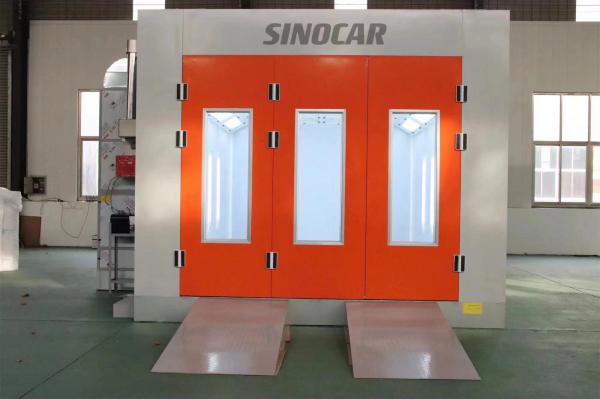

8.9 m Vehicle Painting Booth /spray booth for Professionals & Home Garage

Product Description:

Our car spray booth is designed for automotive painting applications. It is built with high-grade steel material to provide long-term durability and safety. The front door is made of three offs sheetmetal with glass, providing a secure and clear view for the operator. The max. working temperature of the spray booth can reach up to 80℃. It also comes with a two-stage air filter, which effectively captures paint particles and overspray while ensuring a clean and safe working environment. This automotive paint booth is perfect for vehicle painting and it is suitable for a variety of painting jobs. It is a great choice for automotive shops who are looking for a reliable and efficient vehicle spray booth.

SINOCAR SB-003(STANDARD SPECS)
Basement Structure Basement Steel structure, 2 row of checked plates and 3 rows of vein boards,with the loading capacity of 3T
Basement Height 300MM
Ramp Inner ramp/external ramp
Booth Cabin Panel 1.Colorful steel skin panel. Rock wool panel fire resistant wall 5cm, two layers 0.35cm steel cover with fire resistant thermal insulation materials in.
2.Galvanized steel roof panel, anti-flame
Front Door/Safety Door Three offs sheetmetal front door with glass
Safety Door Rock wool panel fire resistant wall without glass
Lighting System Top Lighting LED Ceiling lights:8 groups×3pieces =24pieces ×16W, with powder-coated light box
Filter System Primary Filter The primary filter can capture granules larger than 10μm, filtering rate > 83%
Floor Filter Multi-layer fiberglass filter, filtering rate＞70%
Ceiling Filter Ceiling filter can capture granules bigger than 4μm, filtering rate> 98%
Intake&Exhaust System Intake Fan 2×4KW YDW double-intake centrifugal fans, total air capacity: 25000m³/h
Exhaust Duct Straight tube and bend
Heating System Halogen Infrared Heating 220V/380V,24KW, 8 sets Halogen infrared barking lamps, every set with 3*1KW barking lamps.(Diesel heating: oil burner with 140000Kcal/h, Optional)
Max.Working Temperature 80℃
Heating Up Time 5-8min
Control System Control Panel Intelligent controlling system, lighting switch, spraying, heat spraying, baking, temperature controller, time setting, emergency stop
Functions Spray, Bake, Lighting and Emergency Stop
Size Inner Size 8900*4650*2800mm (L*W*H)
Outer Size 9000*5850*3400mm (L*W*H)
Remarks: Electric and Diesel Heating System are optional according to the requirement.
