Outdoor 4G Signal Amplifier Antenna Omni Directional Fiberglass Lte Fishtail
Outdoor 4G Signal Amplifier Antenna Omni Directional Fiberglass Lte Fishtail
Outdoor 4G Signal Amplifier Antenna Omni Directional Fiberglass Lte Fishtail
Outdoor 4G Signal Amplifier Antenna Omni Directional Fiberglass Lte Fishtail
Outdoor 4G Signal Amplifier Antenna Omni Directional Fiberglass Lte Fishtail
Outdoor 4G Signal Amplifier Antenna Omni Directional Fiberglass Lte Fishtail
Outdoor 4G Signal Amplifier Antenna Omni Directional Fiberglass Lte Fishtail
Outdoor 4G Signal Amplifier Antenna Omni Directional Fiberglass Lte Fishtail
Outdoor 4G Signal Amplifier Antenna Omni Directional Fiberglass Lte Fishtail
Outdoor 4G Signal Amplifier Antenna Omni Directional Fiberglass Lte Fishtail
Outdoor 4G Signal Amplifier Antenna Omni Directional Fiberglass Lte Fishtail
Outdoor 4G Signal Amplifier Antenna Omni Directional Fiberglass Lte Fishtail
Specifications
Brand Name :
LEADSIGN
Model Number :
LDS-4G180-NF
Certification :
CE/FCC/ROHS
Place of Origin :
CHINA
MOQ :
50pcs
Price :
connect the seller
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20000PCS/MONTH
Delivery Time :
7~14 working days
Packaging Details :
Gift box
Band :
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B288 LTE TDD: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8
Working Freq :
698-960Mhz/1710-2700MHZ
Type :
4G antenna
Gain :
4dBi or customized

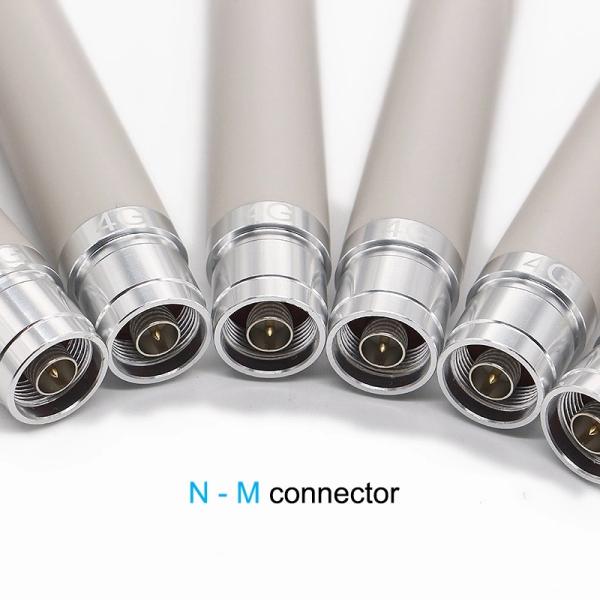

Connector type :
N-Female , N male or SMA
Polarization Type :
Omni-directional

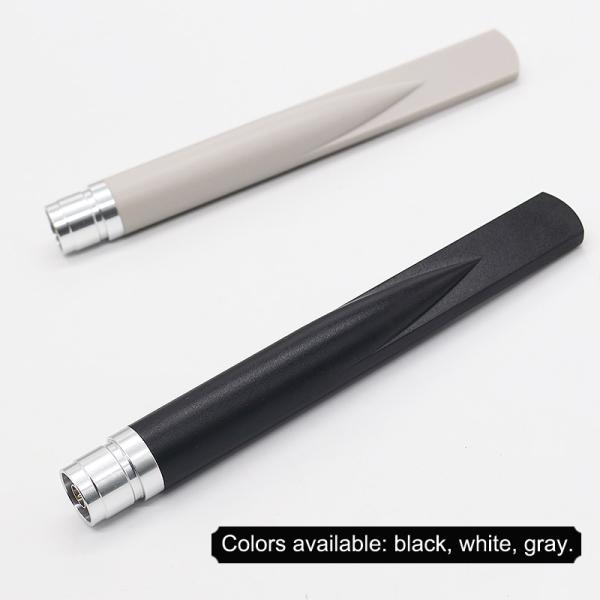

Color :
Gray,White,Black or customized
Voltage :
5~12V
Description

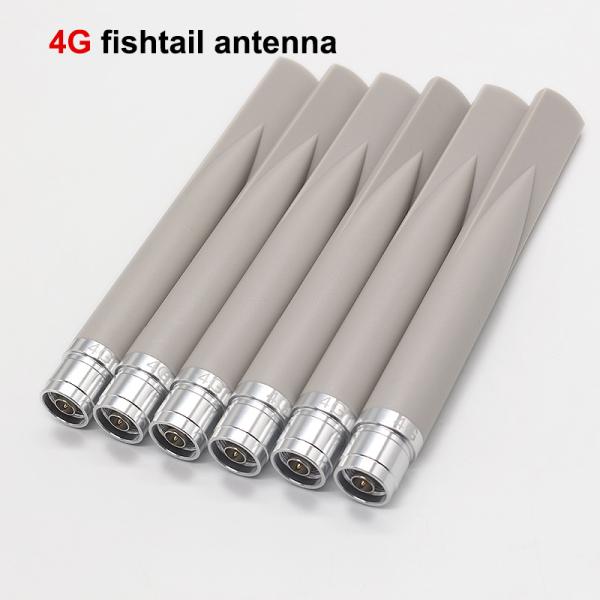

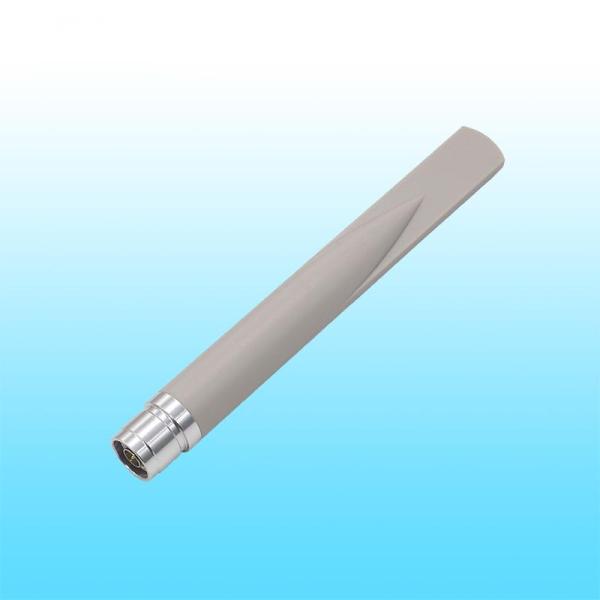

4G antenna Outdoor Waterproof Omni Directional Fiberglass 4G LTE Fishtail Antenna

Product Description
Exquisite appearance
Good secrecy
High positioning accuracy
High transmission rate
Optimized dimension
Strong anti-interference capability
The transmission power is very small
Low-power
Extremely wide bandwidth.

high gain low standing wave,strong anti-interference ability

Electrical Specifications
Frequency range 698-960MHz/1710-2700MHz
Gain (dBi) 5
VSWR ≤2.0
Input impedance(Ω) 50
Iput connector type N Male(or Requested)
Mechanical Specifications
Dimensions(mm) 230*22
working temperature(℃) —45~85
Antenna color Black,Gray


Product details

Outdoor 4G Signal Amplifier Antenna Omni Directional Fiberglass Lte Fishtail

Outdoor 4G Signal Amplifier Antenna Omni Directional Fiberglass Lte FishtailOutdoor 4G Signal Amplifier Antenna Omni Directional Fiberglass Lte FishtailOutdoor 4G Signal Amplifier Antenna Omni Directional Fiberglass Lte FishtailOutdoor 4G Signal Amplifier Antenna Omni Directional Fiberglass Lte Fishtail

Packaging & Delivery

Selling Units:
Single item
Single package size:
18X2X2 cm
Single gross weight:
0.040 kg
Package Type:
Neutral Pacakge,also accept any OEM pacakge.
Lead Time :
Quantity(Pieces) 1 - 1000 1001 - 5000 >5000
Est. Time(days) 12 15 To be negotiated
