Specifications
Total Weight :
3.8 +/- 0.1 kg/m2
Flammability :
PASS ASTM E648 Class B1
Packaging Details :
Standard export carton
Size :
50cm x 50cm
Colour Fastness :
4.5 and above (AATCC TM 165)
MOQ :
1 square meter
Price :
USD 7-10 / Square Meter
Smoke Density :
PASS ASTM E662 (max. 450 DMC)
Tuft Bind :
Above 6.0 (ASTM D 1335)
Yarn :
100% Nylon Multi-Level Loop
Static Propensity :
Below 2.0 KV (AATCC TM 134)
Certification :
SGS
Total Thickness :
6.0mm +/- 0.2mm
Model Number :
Nylon Carpet Tiles
Payment Terms :
T/T
Gauge :
1/12 inch
Place of Origin :
China
Backing :
PVC backing
Delivery Time :
25-30 days
Pile Weight :
500 g/m2
Brand Name :
Flooring Source
Supply Ability :
3000 square meter per day
Description
100% Nylon Multi-Level Loop Commercial Carpet Tiles Modular Flooring
Product Description

Built for demanding commercial interiors, this 50cm x 50cm commercial carpet tile is crafted from 100% nylon multi-level loop yarn with a fine 1/12 inch gauge, creating a rich textured surface that hides footprints and daily wear while adding visual interest. Each tile combines a 500g/m2 pile weight, 6.0mm total thickness and a stable PVC backing, delivering a balanced 3.8kg/m2 total weight for easy handling and precise installation. The product passes ASTM E648 Class B1 flammability and ASTM E662 smoke density requirements, keeps static propensity below 2.0 KV, and delivers tuft bind strength above 6.0 for reliable performance in retail, office and hospitality environments.

Technical Specifications
Specification Details
Yarn 100% Nylon Multi-Level Loop
Gauge 1/12 inch
Pile Weight 500 g/m2
Total Thickness 6.0mm +/- 0.2mm
Total Weight 3.8 +/- 0.1 kg/m2
Backing PVC backing
Tile Size 50cm x 50cm
Smoke Density PASS ASTM E662 (max. 450 DMC)
Flammability PASS ASTM E648 Class B1
Static Propensity Below 2.0 KV (AATCC TM 134)
Tuft Bind Above 6.0 (ASTM D 1335)
Colour Fastness 4.5 and above (AATCC TM 165)
Applications and Functions

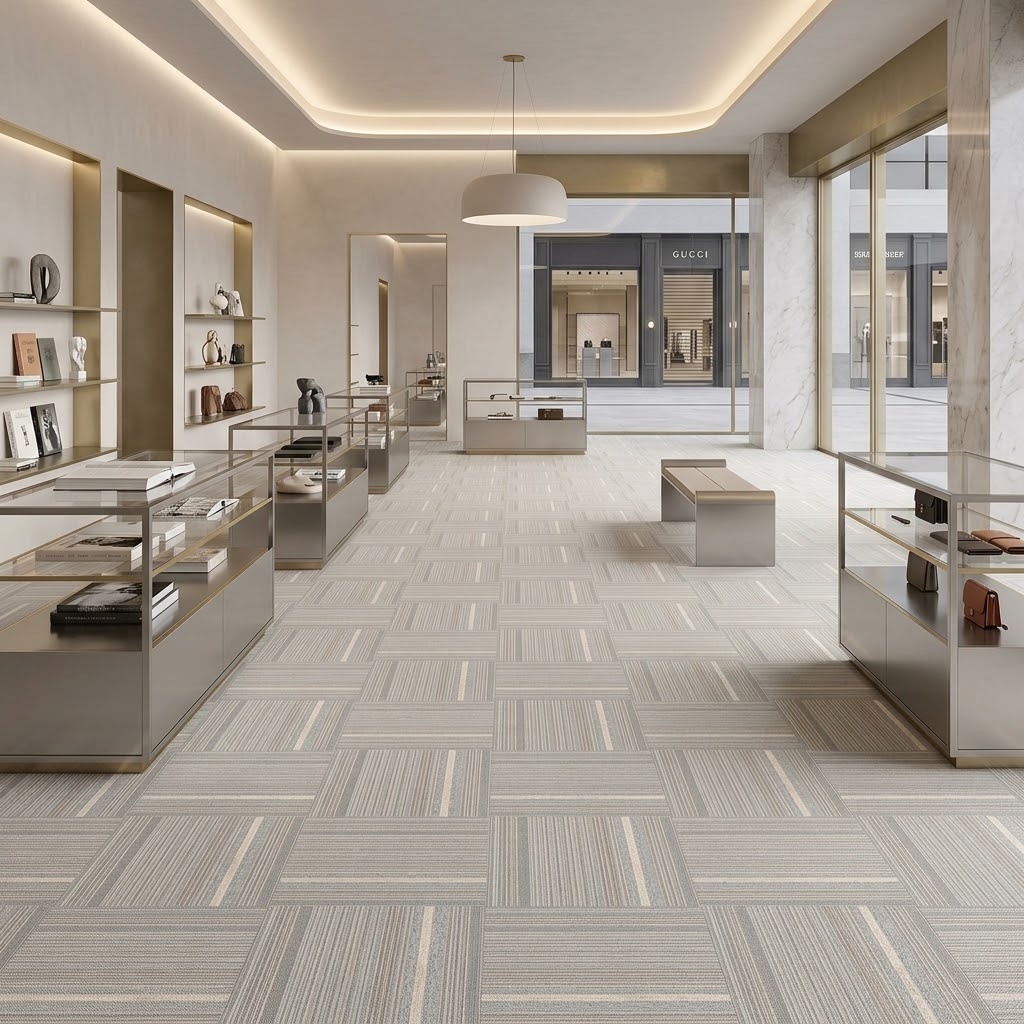

Engineered for high-traffic commercial projects in European and American markets, this carpet tile is suited to retail stores, shopping malls, corporate offices, hotel lobbies, restaurants, schools and public corridors. The multi-level loop texture effectively masks footprints and soiling between cleanings, while its acoustic properties help lower ambient noise for a quieter, more comfortable customer and staff experience.

Key Advantages
  • Textured Multi-Level Loop Surface: varied loop heights create a refined, dimensional texture that camouflages footprints, vacuum marks and daily wear, keeping commercial floors presentable longer.
  • Heavy-Duty Commercial Durability: 100% nylon with a fine 1/12 inch gauge delivers excellent abrasion resistance and crush recovery under constant traffic and rolling loads.
  • Certified Safety and Compliance: passes ASTM E648 Class B1 flammability and ASTM E662 smoke density limits, supporting code compliance in public and commercial buildings.
  • Balanced Lightweight Build: a 3.8kg/m2 total weight with PVC backing makes tiles easy to carry, cut and install while keeping edges flat and seams tight.
  • Low Static and Easy Maintenance: static propensity below 2.0 KV reduces dust attraction, and the modular 50x50cm format allows quick spot replacement and routine cleaning.
Core Technical Advantages

Within busy retail stores, corporate offices and hospitality environments, flooring systems are required not only to withstand continuous multi-directional mechanical stress but also to maintain long-term visual consistency under intensive operational cycles. This 50x50cm multi-level loop nylon carpet tile system is engineered with four core technical pillars to ensure structural stability, safety compliance and sustainable aesthetic performance in demanding commercial interiors.

• 100% Nylon Multi-Level Loop and Structural Load Stability: manufactured with 100% high-tenacity nylon yarn and a precision 1/12 inch gauge multi-level loop construction, the carpet tile forms a compact woven matrix with exceptional resilience. The varied loop structure effectively distributes rolling loads and continuous pedestrian traffic, minimizing fiber collapse, surface matting and localized deformation over extended service life.

• PVC Reinforced Backing and Dimensional Locking System: the integrated PVC backing layer enhances substrate adhesion and significantly improves dimensional stability across both horizontal and vertical axes. This engineering design reduces the risk of edge curling, seam separation and installation shift caused by humidity variation or HVAC-driven temperature fluctuations, ensuring long-term flatness in modular layouts.

• Certified Fire Safety and Static Control: the product passes ASTM E648 Class B1 flammability and ASTM E662 smoke density tests (max. 450 DMC), making it suitable for code-compliant commercial buildings. Combined with static propensity below 2.0 KV (AATCC TM 134) and tuft bind strength above 6.0 (ASTM D 1335), it ensures superior fiber retention and safe performance around electronics and point-of-sale equipment.

• High Colour Fastness and Visual Durability: the surface is produced with advanced pigment fixation technology, achieving Grade 4.5 and above color fastness (AATCC TM 165). The tonal stability ensures long-term resistance to fading, maintaining a clean, consistent and professional visual identity in sun-exposed retail fronts and large glass facade interiors.

Applications
  • Retail Stores and Shopping Malls: the multi-level loop texture masks foot traffic patterns and keeps aisles looking fresh, while heavy-duty abrasion resistance copes with constant customer flow and merchandising carts.
  • Corporate Offices and Open-Plan Workplaces: the textured surface adds sophistication to workstations and meeting areas, supported by low static performance around computers and quiet acoustic comfort for focused work.
  • Hotel Lobbies and Restaurants: the dimensional texture creates an upscale first impression, while stain-masking loops and easy spot replacement keep public zones immaculate between deep cleans.
  • Schools, Showrooms and Public Corridors: demonstrating excellent wear resistance under continuous traffic, this tile maintains a safe, code-compliant floor with flexible low-MOQ capabilities for branded and institutional projects.
Why Choose Nylon Carpet Tiles
  • Proven resilience of 100% nylon multi-level loop under commercial traffic and rolling loads.
  • Certified safety with ASTM E648 Class B1 and ASTM E662 smoke density compliance.
  • Low static and easy maintenance for electronics-rich retail and office environments.
  • Textured 50x50cm modular format for fast installation and contemporary interiors.

100% Nylon Multi-Level Loop Commercial Carpet Tiles Modular Flooring

100% Nylon Multi-Level Loop Commercial Carpet Tiles Modular Flooring

Contact us to get
  • Free design consultation
  • Custom logo and color options
  • Project-based quotation
100% Nylon Multi-Level Loop Commercial Carpet Tiles Modular Flooring
Delivery Time
Quantity 1-6000 square meters More than 6000 square meters
Est. Lead Time 25-30 days To be negotiated
Frequently Asked Questions (FAQ)
Q1: What is the advantage of the multi-level loop texture?

The varied loop heights create a dimensional surface that hides footprints, vacuum marks and light soiling, keeping commercial floors looking cleaner for longer between maintenance cycles.

Q2: Is this tile suitable for heavy-traffic retail areas?

Yes. The 100% nylon multi-level loop construction with tuft bind above 6.0 is engineered to withstand constant customer traffic and rolling loads without crushing or fiber loss.

Q3: Does it meet fire safety requirements for commercial buildings?

Yes. It passes ASTM E648 Class B1 flammability and ASTM E662 smoke density tests, meeting common requirements for commercial interiors in Europe and America.

Q4: Can colors and logos be customized?

Yes. We support custom colors, computer printing and logo customization for branded commercial projects.

Q5: What is the delivery time for project orders?

Standard orders of 1-6000 square meters are delivered within 25-30 days; larger project volumes can be arranged with a negotiated schedule.
