Lsailt Android Carplay Video Interface for 2015-2020 Cadillac Escalade CUE System
Lsailt Android Carplay Video Interface for 2015-2020 Cadillac Escalade CUE System
Lsailt Android Carplay Video Interface for 2015-2020 Cadillac Escalade CUE System
Lsailt Android Carplay Video Interface for 2015-2020 Cadillac Escalade CUE System
Lsailt Android Carplay Video Interface for 2015-2020 Cadillac Escalade CUE System
Lsailt Android Carplay Video Interface for 2015-2020 Cadillac Escalade CUE System
Lsailt Android Carplay Video Interface for 2015-2020 Cadillac Escalade CUE System
Lsailt Android Carplay Video Interface for 2015-2020 Cadillac Escalade CUE System
Specifications
Brand Name :
Lsailt
Model Number :
LLT-GM-VER3.7.7
Certification :
CE,RoHS
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T or Western Union, PayPal
Supply Ability :
2,000pcs/month
Delivery Time :
1-7 working days after payment
Packaging Details :
31x23x8cm
Support Car Models :
2015-2020 Cadillac Escalade CUE System
Type :
Android Video Interface
Carplay :
Wireless / Wired
Android Auto :
Wired & Wireless
RAM :
4GB
ROM :
64GB
OS :
Android 10 System
Wanrranty :
1 year
Steering wheel controls :
Support
MirrorLink :
Android and IOS
Description

Lsailt Android Carplay Video Interface for 2015-2020 Cadillac Escalade CUE System

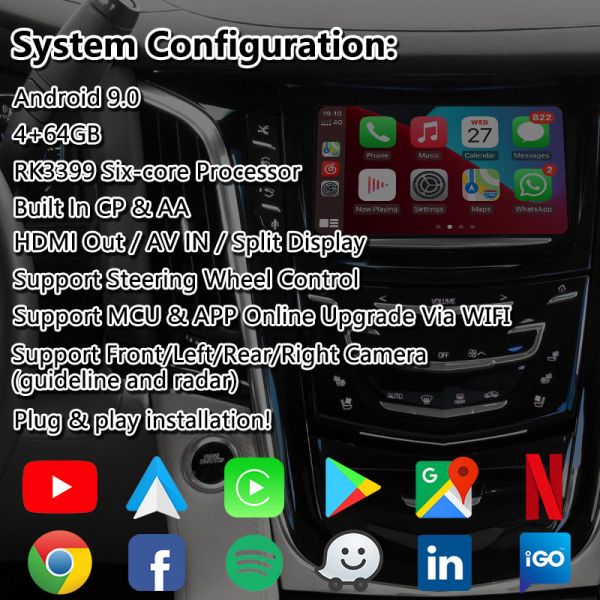

Android Configuration
Resolution 800X480
Display LVDS Digital(Latest chip)
SYSTEM: Android OS10
RAM: 4GB
EMMC: 64GB
CPU MODEL Dual-core ARM Cortex-A72 1.8GHz and Quad-core ARM Cortex-A53 1.4GHz RK3399
WIFI: 2.4 / 5Ghz
BT: BT5.0 Support calls and music and OBD date
CP / AA Wireless and Wired
Mirrorlink Wireless and Wired
HiCar YES
Play Store: Yes
GPS UBLOX GPS Module
DSP 256 DSP chip, with 16 period of EQ of DSP chip, the adjustable emperor, etc

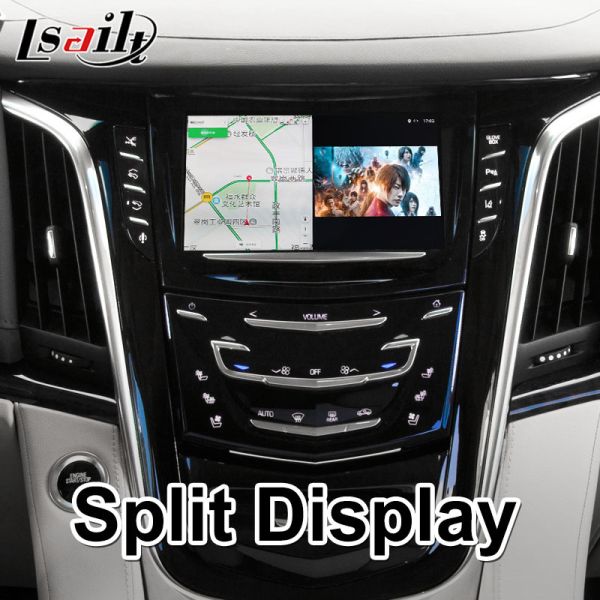

Split Screen Support
UI Choose 5 sets for optional
Hardware Configuration
TF Card : Maximum support 64GB (Product not include TF Card)
Navi Sound Addsmall speakers. If don’t listen radio, navi sound from original car speakers.
AV IN: DTV
HD-MI OUT: Support 720P
Camera/ AHD: 4 CAMinput(guideline and radar )
Reversing DET Gray REAR-C
USB Port

3 ways
USB:CP and Update OS
USB1 / USB2 : ADAS and Media Player
GPS Module GPS and Beidou dual-mode GPS (BDS/UBLOX)
Special Function
MCU and APP Update: Online upgrade via WIFI
Cold start Time: 30 seconds
Hot Start: 6 seconds
Sleep: (Cycle 5 times and restart once)
Sleep memory Remember Last APP in parking
Installation Method Plug and Play
Multimedia Control
Microphone: Use OEM
Steering Wheel: Support up and down song, Vol DisPlay
Forced Reset MODE Button(Long press 5 seconds)
OEMBT in Android: Automatically return to the OEM BT screen
A/C DISP Support in the Android interface display
Speed Control: Adding camera is effective below 20KM


Functions:
OS System: Android 10 (Shows Android 10 actual Android 9)
RAM: 4GB
ROM: 64GB
A/C Display: Support display on the Android interface.
MCU and APP Update: Connect WIFI upgrade online
Cold start Time: 40 seconds
Hot Start: 6 seconds
Sleep: Support
Sleep memory: Remember Last APP in parking
Installation Method: Plug and Play
Navi Sound: Need add small speakers. If don’t listen OEM radio at the same time, the navi sound from original car speakers.
Microphone: Use original car
AV IN: Support

Questions and Answer:
Does this android interface support wireless carplay and android auto?
Yes, this android carplay interface support wireless carplay and wireless android auto.
Does this android interface support connect headrest?
Yes, it have HDMI OUT. Support connect the headrest and rear seat screens.
How about the warranty of the product?
If there is any quality issue, it support 1 year for repair.
Will this android interface damage the function of my original car?
Will not damage. All factory features will keep. After install our android carplay interface, your car will have two systems, all original car functions will keep in original car system. And the installation is easy. All cables are plug and play!
