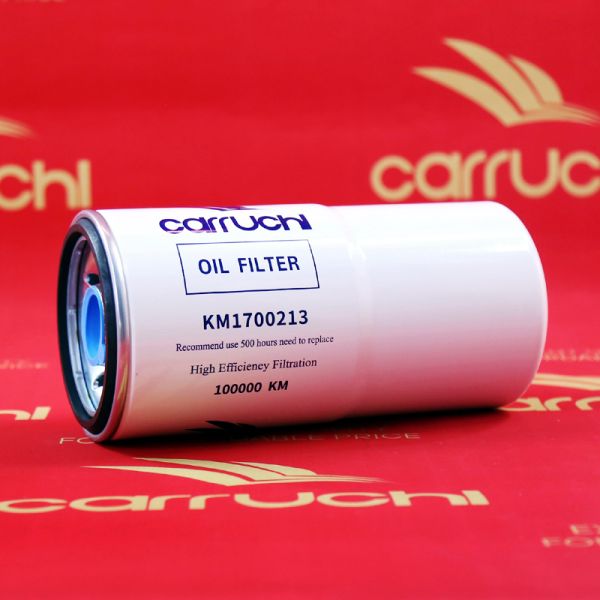

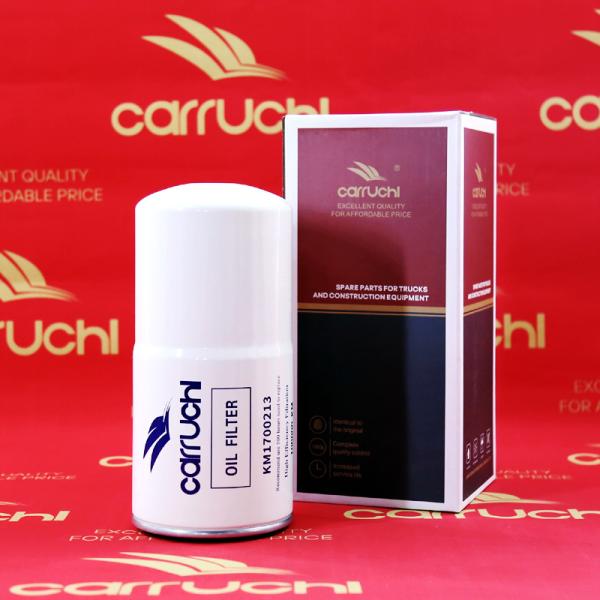

LF17579 LF17500 3696820 3694660 LF14003NN 5465813 3694654 LF17559 FOTON AUMAN GTL CUMMINS ISG Oil Filter

Oil filter, also known as oil grid. Used to remove impurities such as dust, metal particles, carbon deposits, and soot particles from engine oil, protecting the engine.
There are two types of oil filters: full flow and split flow. The full flow filter is connected in series between the oil pump and the main oil passage, so it can filter all the lubricating oil entering the main oil passage. The split flow cleaner is connected in parallel with the main oil passage, and only a portion of the lubricating oil is sent out by the filter oil pump.

LF17579 LF17500 3696820 3694660 LF14003NN 5465813 3694654 LF17559 FOTON AUMAN GTL CUMMINS ISG Oil Filter

1. Shell: Made of genuine Shougang coil material with a thickness of 0.8mm and 56D material, suitable for constant thin stretching process production;

2. Cover plate: Made of 0.8mm thick, 56D genuine Shougang coil material, higher than most 54D materials on the market;

3. Paper core upper and lower cover plates: made of fingerprint resistant material, more convenient for adhesive bonding;

4. Core center tube: Made of tin plated material with a thickness of 0.3mm, it has high strength, corrosion resistance, and better pressure resistance; 5. Adhesive: Using high-temperature resistant two-component adhesive, it has the characteristics of high temperature resistance and good corrosion resistance;

6. Filter material: genuine filter materials from brands such as HV, Osron, and Longde are used. The machine filter contains 15% glass fiber and synthetic fiber, which increases the filtration effect and service life. The fuel filter paper uses high-temperature composite filter paper and glass fiber material to ensure that the filtration accuracy meets the original factory standards;

6. Rubber ring: AEM+NBR sealing ring is adopted, which is more resistant to high temperature, low temperature and aging. Stronger resilience.

LF17579 LF17500 3696820 3694660 LF14003NN 5465813 3694654 LF17559 FOTON AUMAN GTL CUMMINS ISG Oil Filter
