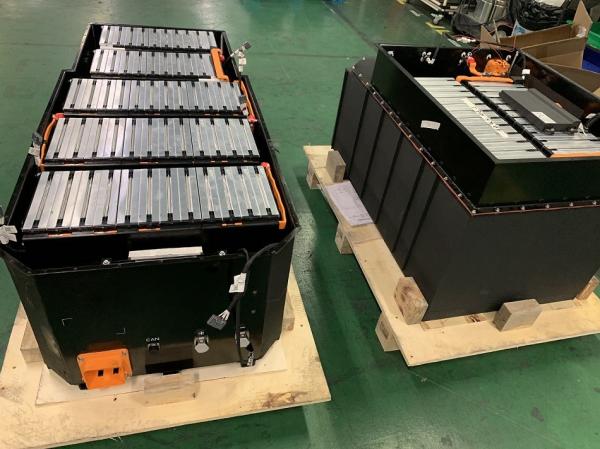

Natural Cooling 137.9Kwh NMC Electric Truck Batteries
Natural Cooling 137.9Kwh NMC Electric Truck Batteries
Specifications
Brand Name :
Soundon
Model Number :
SD-EV-394.2V350AH
Certification :
CE, MSDS, ROHS,UL
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Supply Ability :
50units / week
Delivery Time :
30 working days after payment
Packaging Details :
wooden package
Voltage range :
394.2V
Capacity :
350Ah
Total energy :
137.9kWh
battey module :
3.65V87.5Ah
Waterproof Grade of Battery Box :
IP66
Cooling Method :
Natural cooling
Description

137.9Kwh NMC Electric Truck Batteries with UL certificate for Electric delivery truck

Content Parameter
Voltage 324V---453.6V(394.2V)
Energy(KWh)23±2℃,1/3C 137.97kWh
Capacity(Ah)23±2℃,1/3C 350Ah
Cell SEPNi8688190P-17.5Ah
Configuration 20P108S
Recommended ambient temperature range(℃) Discharge-20~55℃,Charge-10~55℃
Environmental Relative Humidity Recommended 5%~95%
Storage temperature

-20～25℃(3-6months,50%SOC)

-20～45℃(1-3months,50%SOC)

-20～60℃(less than 1 month,50%SOC)
Maximum Continuous Discharge Current ≤350A
Maximum Continuous Charging Current ≤350A
Insulation resistance factory test value(Ω) ≥20MΩ
Waterproof Grade of Battery Box IP66
Cooling mode Natural cooling


Battery Model

Cell Model 8688190-17.5Ah
Model Type 5P1S
Model Size (H*W*T) 242× 97× 45.3(mm)

Rated Capacity Module

 87.5Ah

Nominal Voltage Module

 3.65V
Module Weight ≈1.51Kg
The Module Of Energy Density 211.5Wh/kg


Battery cell parameters

Capacity voltage: 3.6V17.5Ah 1C discharging (25±2 degree)

Charging end of voltage :4.2V

Standard charging and discharging current :0.5C

max continuous charge and discharge current :1C

max pluse charging current :1.5C(15-45 degree) < 30S

max pluse discharging current :3C (15-45 degree) < 30S

Working temperature : Charging:-10~45 degree

Discharging :-20~55 degree

Application

Natural Cooling 137.9Kwh NMC Electric Truck Batteries

Natural Cooling 137.9Kwh NMC Electric Truck Batteries
