New Energy EV Battery Lift Platform Vehicle Scissor Lift 500Kg By Air Operation
New Energy EV Battery Lift Platform Vehicle Scissor Lift 500Kg By Air Operation
Specifications
Brand Name :
Iter
Model Number :
TL1.0A
Certification :
CE
Place of Origin :
Guangdong
MOQ :
1set
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
1000set/month
Delivery Time :
5-10 days
Packaging Details :
export standard , steel frame and carton
color :
red/blue/yellow/green
Pressure :
6-8bar
lifting capacity :
1100lbs/500kg
payment terms :
EXW/FOB/CIF
lifting height :
38"/1170mm
lifting time :
25seconds
Description
New Energy EV Battery Lift Platform Vehicle Scissor Lift 500Kg By Air Operation
Product Specifications
Color:
red/blue/yellow/green
your request
Lifting Capacity:
1100lbs/500kg
Payment Terms:
EXW/FOB/CIF
Lifting Height:
38"/1170mm
Lifting Time:
25seconds
Product Features
  • Designed specifically for new energy vehicle maintenance, including engine and gearbox servicing
  • Features automatic mechanical safety device with single shear design for smooth lifting operation
  • Available with optional electric or pneumatic hydraulic systems
  • Platform designed with grill and insulation paste for easy movement and battery pack support
  • Universal sliding table platform with manual locking for precise positioning
  • 0-4 degree forward/backward tilt adjustment for optimal vehicle alignment
  • Universal self-locking wheels for faster, more convenient operation
  • 12V electric control box with battery - no external power required
  • Hydraulic system equipped with explosion-proof device for safe, reliable operation
Technical Specifications
Lifting Capacity 1100Lbs/500kg
Lifting Height 38"/1170mm
Lifting Time 25.5seconds
Min Height 13"/410mm
Overall Width 18"/550mm
Overall Length 32"/1150mm
Motor Voltage 220V/380V
Frequency 50Hz or 60Hz
Phase 1Ph/3Ph
Net Weight 800Lbs/364kg
Product Images

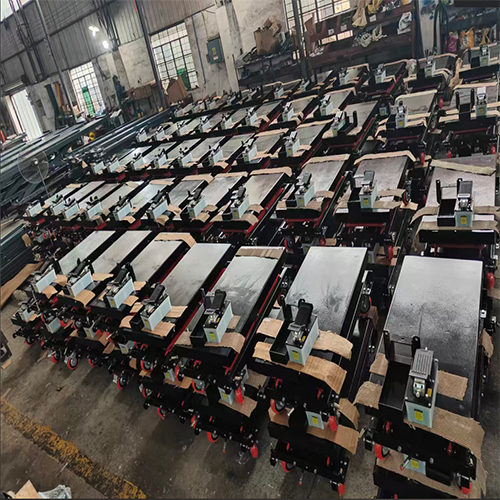

New Energy EV Battery Lift Platform Vehicle Scissor Lift 500Kg By Air Operation
