Internal Dimensions l x W x H mm 5456 x 2290 x 2276 mm 6m Length 28cbm 20ft Refrigerated Reefer Container Cold Room Storage
Internal Dimensions l x W x H mm 5456 x 2290 x 2276 mm 6m Length 28cbm 20ft Refrigerated Reefer Container Cold Room Storage
Internal Dimensions l x W x H mm 5456 x 2290 x 2276 mm 6m Length 28cbm 20ft Refrigerated Reefer Container Cold Room Storage
Internal Dimensions l x W x H mm 5456 x 2290 x 2276 mm 6m Length 28cbm 20ft Refrigerated Reefer Container Cold Room Storage
Internal Dimensions l x W x H mm 5456 x 2290 x 2276 mm 6m Length 28cbm 20ft Refrigerated Reefer Container Cold Room Storage
Internal Dimensions l x W x H mm 5456 x 2290 x 2276 mm 6m Length 28cbm 20ft Refrigerated Reefer Container Cold Room Storage
Internal Dimensions l x W x H mm 5456 x 2290 x 2276 mm 6m Length 28cbm 20ft Refrigerated Reefer Container Cold Room Storage
Internal Dimensions l x W x H mm 5456 x 2290 x 2276 mm 6m Length 28cbm 20ft Refrigerated Reefer Container Cold Room Storage
Internal Dimensions l x W x H mm 5456 x 2290 x 2276 mm 6m Length 28cbm 20ft Refrigerated Reefer Container Cold Room Storage
Internal Dimensions l x W x H mm 5456 x 2290 x 2276 mm 6m Length 28cbm 20ft Refrigerated Reefer Container Cold Room Storage
Internal Dimensions l x W x H mm 5456 x 2290 x 2276 mm 6m Length 28cbm 20ft Refrigerated Reefer Container Cold Room Storage
Internal Dimensions l x W x H mm 5456 x 2290 x 2276 mm 6m Length 28cbm 20ft Refrigerated Reefer Container Cold Room Storage
Specifications
Type :
Reefer Container
Length (feet) :
20'
Capacity :
31.2 CUM
External Dimensions(l x W x H)(mm) :
6058 x 2438 x 2591 mm
Internal Dimensions(l x W x H)(mm) :
5456 x 2290 x 2276 mm
Place of Origin :
Tianjin, China
Brand Name :
ACE
Ourside :
Corten-A
Bottom :
Aluminum
Floor :
T-Bar
Refrigerant :
R134a/R404A
Insulating Layer :
Polyurethane
Storage Rack :
No Problem
Quality Control :
ABS / BV / GL / DNV
Cooler Brand :
Daikin / Thermo King / Carrier
Application :
Transport/Storage
Price :
$14,500.00/pieces 1-1 pieces
MOQ :
1 pieces
Delivery Time :
within 30 days
Description
Internal Dimensions l x W x H mm 5456 x 2290 x 2276 mm 6m Length 28cbm 20ft Refrigerated Reefer Container Cold Room Storage
Hot Sale Products
Product Details

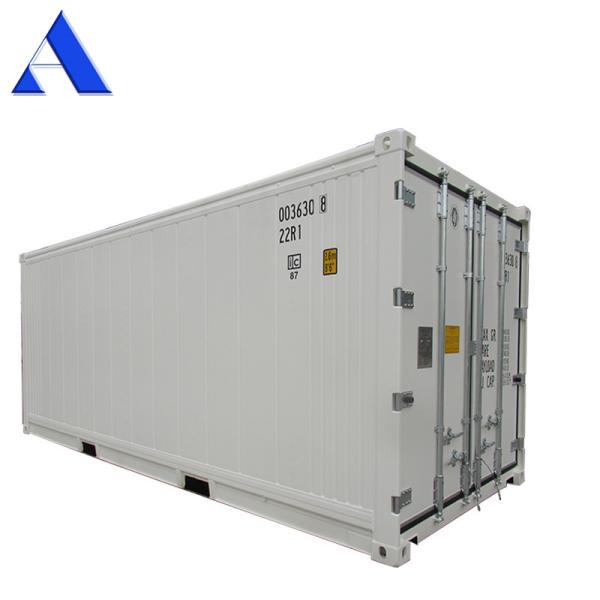

20ft Reefer Container
Reefer container is to be designed and manufactured for the carriage of refrigerated (frozen, chilled) foodstuffs and general cargo by land (on road or rail) and by sea (above or bellow deck) throughout the world and will range from -30°C (-22F Deg) to +80°C (176F Deg) without effect on the strength of basic structure. A mechanical refrigeration unit of a “one piece picture frame type” will be fitted to the front end frame. The container is designed with a refrigeration unit to maintain the inside space temperature at -18°C in ambient temperature up to 38°C.
3 Brand Cooling Unit for Choose
Internal Dimensions l x W x H mm 5456 x 2290 x 2276 mm 6m Length 28cbm 20ft Refrigerated Reefer Container Cold Room Storage

Thermo King (US)

Cooling gas: R134a

400 to 500 Vac 3ph 60 Hz
360 to 460 Vac 3ph 50 Hz

Temperature Range:

-40℃ (-40F) to 30℃ (86F).


Internal Dimensions l x W x H mm 5456 x 2290 x 2276 mm 6m Length 28cbm 20ft Refrigerated Reefer Container Cold Room Storage

Carrier(US)

Cooling gas: R134a

380/460 VAC 3ph 50/60Hz

24 VAC control circuit

Temperature Range:

-30℃ (-22F) to 30℃ (86F).

Internal Dimensions l x W x H mm 5456 x 2290 x 2276 mm 6m Length 28cbm 20ft Refrigerated Reefer Container Cold Room Storage

Daikin (Japan)

Cooling gas: R134a

380/440VAC 3ph 50/60Hz

24 VAC control circuit

Temperature Range:

-30~50°C (-22~122°F)

Brand New 20ft Reefer Container
Internal Dimensions l x W x H mm 5456 x 2290 x 2276 mm 6m Length 28cbm 20ft Refrigerated Reefer Container Cold Room Storage
Internal Dimensions l x W x H mm 5456 x 2290 x 2276 mm 6m Length 28cbm 20ft Refrigerated Reefer Container Cold Room Storage
Internal Dimensions l x W x H mm 5456 x 2290 x 2276 mm 6m Length 28cbm 20ft Refrigerated Reefer Container Cold Room Storage
Internal Dimensions l x W x H mm 5456 x 2290 x 2276 mm 6m Length 28cbm 20ft Refrigerated Reefer Container Cold Room Storage
Internal Dimensions l x W x H mm 5456 x 2290 x 2276 mm 6m Length 28cbm 20ft Refrigerated Reefer Container Cold Room Storage
Internal Dimensions l x W x H mm 5456 x 2290 x 2276 mm 6m Length 28cbm 20ft Refrigerated Reefer Container Cold Room Storage
Internal Dimensions l x W x H mm 5456 x 2290 x 2276 mm 6m Length 28cbm 20ft Refrigerated Reefer Container Cold Room Storage
TK Compressor, R404A gas
Internal Dimensions l x W x H mm 5456 x 2290 x 2276 mm 6m Length 28cbm 20ft Refrigerated Reefer Container Cold Room Storage
Power Cable 18mm
Internal Dimensions l x W x H mm 5456 x 2290 x 2276 mm 6m Length 28cbm 20ft Refrigerated Reefer Container Cold Room Storage
Aluminum T Floor
Internal Dimensions l x W x H mm 5456 x 2290 x 2276 mm 6m Length 28cbm 20ft Refrigerated Reefer Container Cold Room Storage
Refer Container Cable Plug
Internal Dimensions l x W x H mm 5456 x 2290 x 2276 mm 6m Length 28cbm 20ft Refrigerated Reefer Container Cold Room Storage
CSC Plate
Internal Dimensions l x W x H mm 5456 x 2290 x 2276 mm 6m Length 28cbm 20ft Refrigerated Reefer Container Cold Room Storage
Thermo King MP4000 Controler
Internal Dimensions l x W x H mm 5456 x 2290 x 2276 mm 6m Length 28cbm 20ft Refrigerated Reefer Container Cold Room Storage
Product Datasheet
Specification of 20ft thermo king reefer container
External Dimension
6058 x 2438 x 2591 mm
Internal Dimension
5468 x 2294 x 2273 mm
Door Opening
2290 x 2264 mm
Inside Cubic Capacity
28.4 cbm
Maximum Gross Weight
30480 kgs
Tare Weight
2900 kgs
Maximum Payload
27580 kgs
Allowable Stacking Weight/1.8G
216000 kgs
Cooling Capacity/W
6300/5580 AT -18℃ Inside/ 38℃ Outside 60/50HZ
Main Circuit
3 PHASE AC 440, 460V/380, 400, 415 60/50HZ
Consumption/KW
MAX 13.5 60HZ
Our Advantages
Internal Dimensions l x W x H mm 5456 x 2290 x 2276 mm 6m Length 28cbm 20ft Refrigerated Reefer Container Cold Room Storage
FAQ
1. Can you supply ONE WAY survice for 20ft reefer container to my country?
Yes, we can do one way to the main port in the wold, kindly contact us for your detail requirement.

2 Can we choose the cooler system?
Sure, you could choose one from Daikin / Carrier / Thermo king.

3 Can i load my goods in China?
Yes, but we suggest you not to load dry cargoes. Because reef container have restrict requirement on cargo package and Loading/unloading.

4 Do you supply generator?
Yes, we have. More details please contact us.

5. What is the payment terms that you can accept?
Generally T/T 30% deposit before producation and 70% before shipment.
Other payment terms please contact me for more details.
