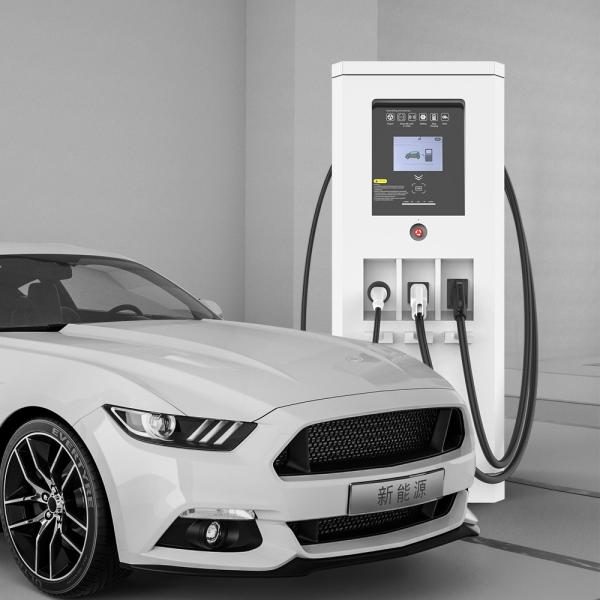

120 KW Floor Stand Electric Car Charger With Wifi APP Control
120 KW Floor Stand Electric Car Charger With Wifi APP Control
Specifications
Brand Name :
Chargecore
Model Number :
NKR-ADC
Certification :
CE,UL,TUV
Place of Origin :
Nanjing, China
MOQ :
1
Price :
negotiation
Payment Terms :
T/T, L/C
Supply Ability :
500 pieces per month
Delivery Time :
20-45 days
Packaging Details :
carton
Weight :
350-480kg
Wall Box Dimension :
749*922*1885mm (L*W*H)
Cable length :
5m
Installation Method :
Floor stand
Housing material :
Metal case
Input frequency :
50Hz/60Hz
Cable routing :
Bottom inlet wiring,up outlet wiring
Charging outlets :
Single/double/triple (CCS/CHAdeMO/AC)
Description

120 KW Floor Stand Electric Car Charger With Wifi APP Control

NKR-ADC fast charger is developed mainly for public commercial use with its modern appearance design and user-friendly
operation interface. The modular design and overall output power can be configured arbitrarily function can reduce the drive
waiting time, enhance the utilization rate of the charger and also easy to operate and do maintenance.
120 KW Floor Stand Electric Car Charger With Wifi APP Control

Specifications

Electrical Features
 Rated power
82KW/142KW/182KW
Input voltage
3-phase 260-530Vac
Input frequency
50Hz/60Hz
Measuring accuracy
Level 0.5
Output voltage
150~750Vdc (Optional:150-1000V)
Efficiency
≥95%
Power factor
≥0.99
Output Current
0 ~ 200Adc
Functional Features
User Interface
Emergency stop button, LED indicator, card swiping,
touch screen
Charging standards
IEC 61851-1/IEC 61851-23/-24:2014/ISO15118-1-2013
ISO15118-2-2014/ISO 15118-3:2015/IEC 62196-1-2014
IEC 62196-3-2014/DIN 70121-2014
Communication
Internet Interface
Ethernet,WIFI,4G
OCPP
OCPP 1.6J
Working environment
Working latitude
<2000m
Working temperature
-30 ° C ~ +70 ° C (Output degraded above 50° C )
Working humidity
5% ~ 95% without condensation
Protection level
IP55/IK10
Cooling
Forced-air cooling
MTBF
100,000 hours
Safety standards
EN 61851-1-2001; EN 61851-21-2001; EN61851-22-2001
Security design
Over/under voltage protection, overload protection,
current leakage protection, grounding protection, over
temp protection, lightening surge protection

1. Have high voltage charging gun of European standard, American standard and Japanese standard. It can generate different charging configures according to customers’ requirements.
2. Modular design, adapt to customers’ needs.
3. OCPP communication protocol
4. Have open, shareable data service platform and management platform (cloud platform)
5. Have protection functions such as input under voltage, input overvoltage, output short-circuit, output overvoltage, output overcurrent, battery reverse connection, insulation detection, communication failure, etc.
6. Have an external running indication, which can display the real-time status.
7. Wide range of AC output voltage, high suitability of utility grid, three phase three wire input without null line in the rectifier unit.
8. Has the function of protocol self-recognition, can realize the charging for electric vehicles without limitation of brand.
9. Compatible with coaches and cars charging function.
10. One pile can charge multiple vehicles, and take turns to charge automatically by applying automatic switch function between charging according to the charging power and according to time. It can automatically judge whether the battery is full, one charging pile can meet at least five vehicles charging service task one night.
After-sale Service
1. Two years warranty for all parts. If any parts break during the period, we will provide free replacement.
Non-quality factor damage is not included.
2. One to one technical engineer support for installation&operation and communication connection assistance
between your app and our OCPP platform.
Additional Accessories for Options
1. Pestle.
2. Wifi connection to Internet.
3. 3g/4g/GPRS connection to Internet.
4. Customized cable length.
5. Customized Box color and customized logo
