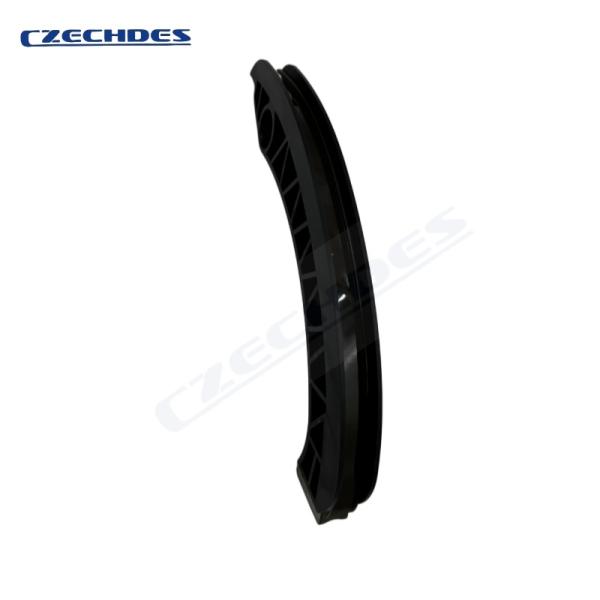

11317533462 Engine Timing Guide For BMW E90 E92 E60 E61 E82 E88 E70 Timing System

1. Function & Purpose

• Core Functions:

  • Guides the timing chain to ensure stable operation and prevent skipping or detachment.

  • Reduces friction between the chain and engine components, minimizing noise and wear.

  • Works with the tensioner to maintain optimal chain tension.

• Critical Importance:

  • A worn or broken guide can cause timing misalignment, leading to severe engine damage (e.g., bent valves).

2.Compatible BMW Models

4.Quality Assurance:

• Manufactured to BMW OEM specifications

• Rigorous quality control testing

• Exact fitment guaranteed for specified applications

• Meets or exceeds original equipment performance standards

5.Applications:

• • Essential component of BMW's timing chain system

  • Works in conjunction with timing chain tensioners and sprockets

  • Critical for maintaining proper valve timing synchronization

  • Helps prevent catastrophic engine timing failure

6. Common Failures & Symptoms

• Typical Issues:

  • Cracking/breakage (plastic degradation) → Timing chain rattling ("ticking" noise).

  • Excessive wear causing chain jump → Fault codes (e.g., P0016 timing correlation).

• High-Risk Scenarios:

  • Mileage exceeding 100,000 km or lack of timing kit maintenance.

7. Maintenance Recommendations

• • Replace as a full timing set (chain + guides + tensioner every 80,000–120,000 km or if noise occurs).

  • Inspect during major engine work (e.g., valve cover replacement).

8. Installation Notes

• Requires specialty tools (e.g., timing pins) for camshaft/crankshaft alignment.

• Clear fault codes and perform idle test post-installation.

• This timing guide is commonly used in BMWs with N-series engines (e.g., N52, N54, N55).

• Verify exact fitment using your VIN (RealOEM or BMW dealership recommended).

• May also fit some B58 (modular engine) applications—check revisions.
