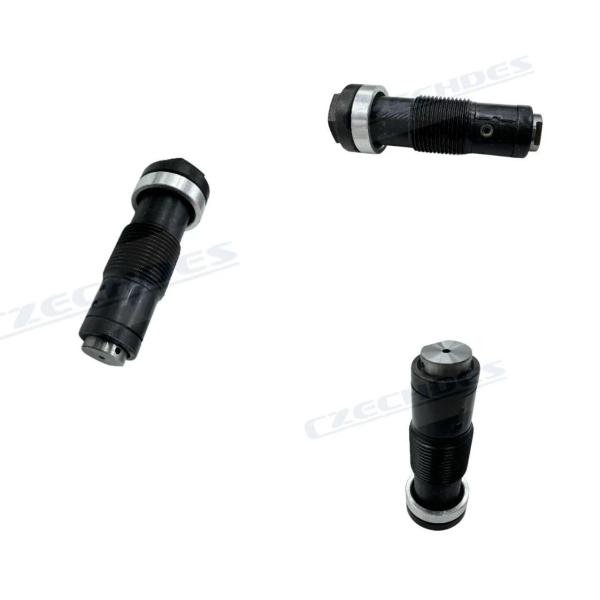

2710500911 Engine Timing Chain Tensioner For Mercedes-Benz W204 W212 X204 R172 OEM Quality

1. Product Introduction

• High-Precision Manufacturing: Made from high-quality materials (such as high-strength alloys or precision-engineered plastics) to ensure wear resistance and long service life.

• Automatic Adjustment: Hydraulic or mechanical self-adjustment maintains optimal timing chain tension, reducing noise and wear.

• Wide Compatibility: Specifically designed for Mercedes-Benz M271-series engines, fitting multiple models (see compatibility table).

• Anti-Backlash Design: Some models feature a locking mechanism to prevent chain slack and skipping, protecting critical engine components.

• Integrated Filter: Certain versions include an oil filter screen to ensure lubrication system cleanliness and prolong lifespan.

2. Vehicle Compatibility Table

Note: Exact compatibility should be verified using the vehicle VIN or engine number, as some modified or special editions may not be supported.

3. Technical Specifications

• Type: Hydraulic/mechanical automatic tensioner

• Operating Pressure: Linked to engine oil pressure (typically 3-5 bar)

• Temperature Range: -30°C to +150°C (high-temperature-resistant sealing materials)

• Installation Orientation: Must align with marked directional arrows (incorrect installation may cause failure).

4. Working Principle

• Hydraulic Adjustment: Engine oil pressure drives an internal piston to dynamically adjust chain tension, accommodating expansion/contraction at different RPMs.

• Mechanical Backup: Some models include a spring mechanism to provide baseline tension during cold starts (before oil pressure builds).

• One-Way Locking: Ratchet or check valve design prevents chain backlash, avoiding timing misalignment.

5. Primary Functions

• Ensures Timing Synchronization: Maintains precise coordination between camshaft and crankshaft for accurate valve timing.

• Reduces Wear: Eliminates friction and noise caused by chain slack, extending the lifespan of the chain and guides.

• Prevents Major Failures: Avoids chain skipping, which can lead to severe engine damage (e.g., valve collision).

6. Key Considerations

• Replacement Interval: Recommended inspection every 80,000–100,000 km or when replacing the timing chain kit.

• Installation Requirements: Specialized tools may be needed for proper calibration; over-tensioning can damage the chain.

• Oil Quality: Low-viscosity or poor-quality oil may result in insufficient hydraulic tension.
