1. Product Overview

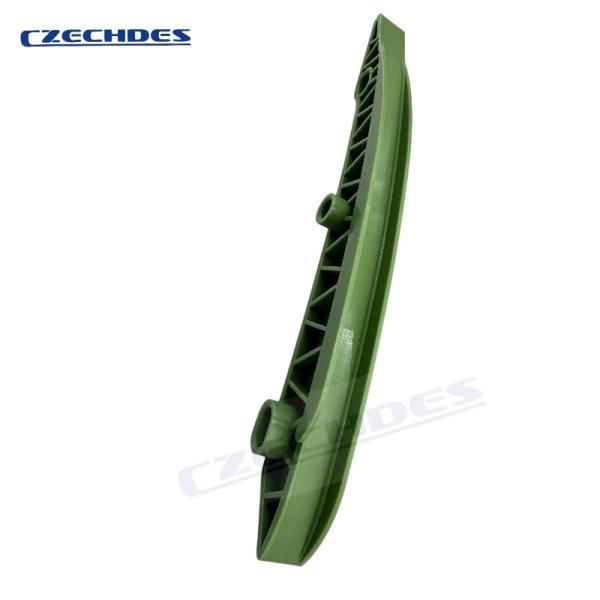

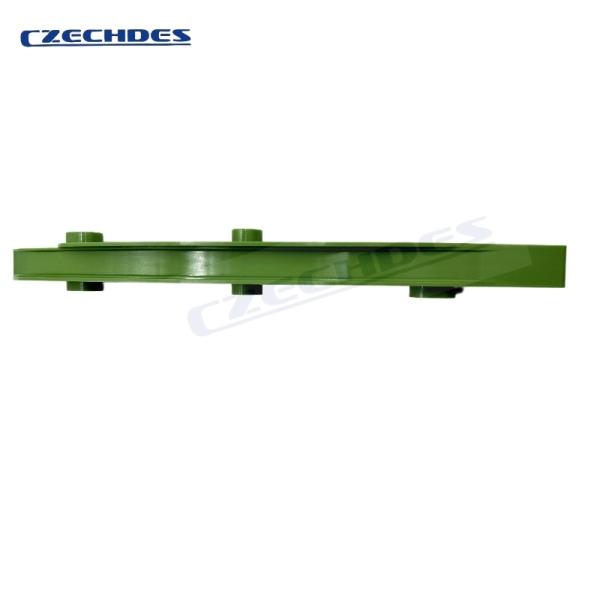

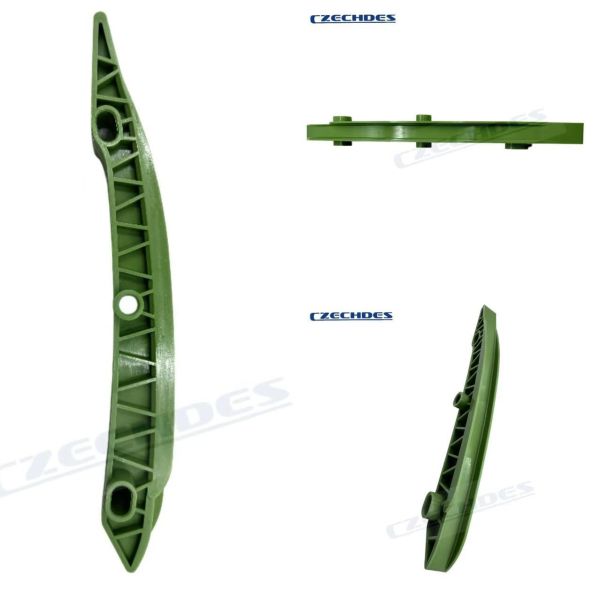

The Mercedes-Benz Timing Chain Guide 2710521516 is a precision-engineered component designed for M271 series engines. This OEM-quality guide rail ensures proper alignment and smooth operation of the timing chain, preventing premature wear and potential engine damage.

Core Function:

• Maintains precise chain routing between crankshaft and camshaft sprockets

• Reduces friction and noise during operation

• Works in conjunction with hydraulic tensioner for optimal chain tension

Material Composition:

• High-strength composite polymer base

• Reinforced with steel backing plate

• Wear-resistant sliding surface

2. Vehicle Compatibility Chart

3. Key Features & Benefits

Dual-Material Construction

• Polymer sliding surface reduces chain wear

• Steel reinforcement prevents deformation under load

Precision Groove Design

• Optimized channel geometry minimizes lateral chain movement

• Integrated oil grooves ensure proper lubrication

Vibration Damping

• Special composite material absorbs harmonic vibrations

• Reduces high-frequency noise by up to 40%

Maintenance-Free Operation

• Self-lubricating material requires no additional grease

• Corrosion-resistant mounting points

5. Working Principle

1. Chain Guidance

   • Guides the timing chain along predetermined path

   • Maintains proper engagement with sprockets

2. Wear Protection

   • Low-friction surface reduces metal-to-metal contact

   • Distributes chain load evenly across surface

3. Tension Management

   • Works with hydraulic tensioner to maintain optimal chain tension

   • Prevents chain slack during acceleration/deceleration

4. Debris Management

   • Special groove design channels away wear particles

   • Prevents abrasive contamination buildup

6. Critical Installation Notes

⚠ Pre-Installation Checks

• Verify chain wear (maximum stretch limit: 1.5% of original length)

• Inspect tensioner piston for free movement

• Clean all mating surfaces thoroughly

⚠ Installation Procedure

1. Align guide with mounting bosses

2. Hand-tighten bolts in crisscross pattern

3. Final torque: 8 Nm + 90° turn (use angle torque wrench)

4. Verify chain runs freely without binding

⚠ Common Failure Modes

• Cracking: Caused by improper bolt torque

• Groove Wear: Indicates contaminated oil or excessive chain stretch

• Delamination: Result of oil starvation or overheating

⚠ Maintenance Tips

• Replace whenever timing chain is serviced

• Always use new mounting bolts (stretch-type design)

• Inspect during every 60,000 km oil change
