Rocking Piston

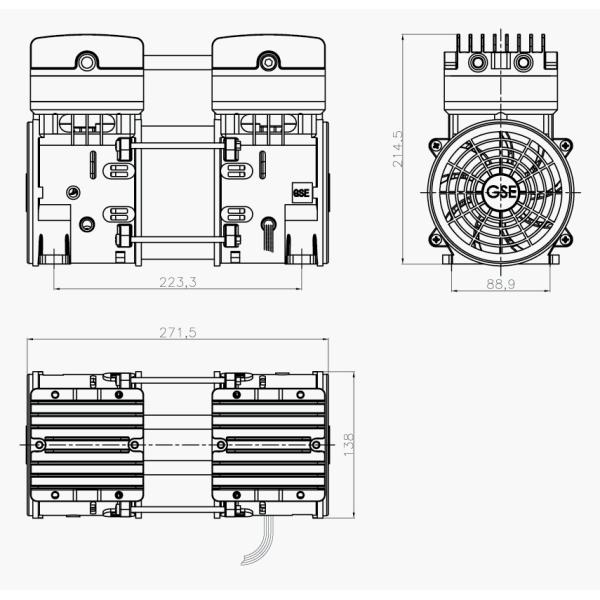

ZW500

Max Flow

5.2 cfm (146 lpm)

Max Pressure Level

116 psi (8 bar)

Max Vacuum Level

27"Hg (910 mbar)

Description

A high pressure version which can reach in excess of 7 bar (gauge) is available. The vacuum version can also generate 3 bar simultaneously.

Specification

Model Number	ZW500B2-106/2	ZW500A-40/7	ZW500B2-40/7
Open Flow	5.2 cfm (146 lpm)	3.3 cfm (94 lpm)	3.3 cfm (94 lpm)
Max Pressure	44 psi (3 bar)	116 psi (8 bar)	116 psi (8 bar)
Max Vacuum	27"Hg (910 mbar)	N/A	N/A
Current at rated load	5.75A	2.8A	5.3A
Power at rated load	610W	600W	580W
Motor Type	PSC	PSC	PSC
Voltage/Frequency	110V/60Hz	220V/50Hz	110V/60Hz
Starting Current	18.5A	7.4A	14A
Noise Level	N/A	N/A	N/A
Tank Capacity	N/A	N/A	N/A
Carton Dimensions	N/A	N/A	N/A
Net Weight	24lbs (11kg)	23lbs (10.5kg)	23lbs (10.5kg)
