Full Auto Speedy INLAY Sheet Hole Puncher YHP-FA-1H punching the two positioning holes and the chip fixing holes for RFID Card Inlay sheets

Full Auto INLAY Sheet Hole Punching Machine/ Full Auto RFID Card INLAY Sheet Chip Hole Die Cutter/ Full Auto INLAY Sheet Chip Fixation Hole Die Cutting Machine YHP-FA-1H

1.Introduction of Full Auto Speedy INLAY Sheet Hole Puncher YHP-FA-1H

Full Auto Speedy INLAY Sheet Hole Puncher YHP-FA-1H is designed for punching the two positioning holes and the chip fixing holes for RFID Card Inlay sheets in a automatic, precise and flexible way. It works fast with the working speed high to 12000-14000 holes per hour.

2.Functions of Full Auto Speedy INLAY Sheet Hole Puncher YHP-FA-1H

It can automatically pick, place and feed the new plastic sheets, and after the holes are punched, the finished sheets can be automatically collected in the end, which can save the operator labor volume greatly.

This equipment does not need to adjust the relative position of the punching mould, and can punch the holes in different sheet layout, which can greatly improve the production efficiency. Meanwhile it can punch more sheets (5-6 sheets) one time.

The numbers and relative position of punched holes can be adjusted by setting touch screen parameters, and multiple groups of working parameters can be saved inside for the convenience to be called back and used in the future production.

Full Auto Speedy INLAY Sheet Hole Puncher YHP-FA-1H is also name or called as Full Auto INLAY Sheet Hole Punching Machine/ Full Auto RFID Card INLAY Sheet Chip Hole Die Cutter/ Full Auto INLAY Sheet Chip Hole Die Cutting Machine YHP-FA-1H.

3. Technical Parameters of Full Auto Speedy INLAY Sheet Hole Puncher YHP-FA-1H:

1). Power supply: AC220V, 50 / 60Hz;

2). Dimension: 1800 *1400 * 1300mm;

3). Weight: around 350kg;

4). Control mode: Mitsubishi PLC + servo system;

5). Compressed air: 6kg / cm², 50L / min;

6). Material thickness: 0.15 -0.25mm;

7). Power: 1.5kw;

8). Position accuracy: ± 0.05mm;

9). PVC size: ≤ 500mm * 600mm;

10). Speed: 500-600 big sheets/hour.

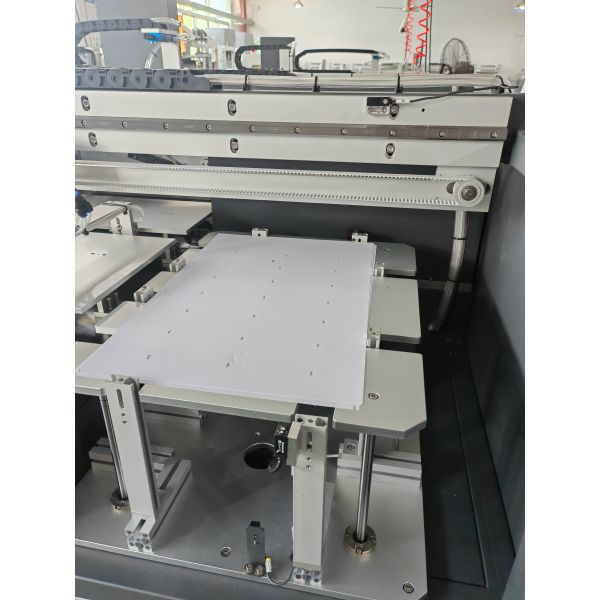

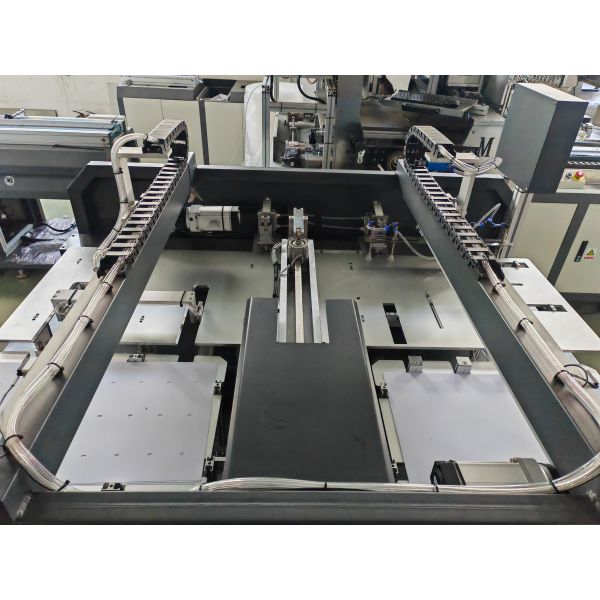

4.Details of Full Auto Speedy INLAY Sheet Hole Puncher YHP-FA-1H

Note: The default materials to be punched by this machine is PVC sheets for INLAY production purpose. The default setting of this machine is that it can punch normal color PVC sheets excluding the transparent sheets due to the normal sensor limit. The mould special for PC sheet punching and the special function for transparent sheet punching are available in the optional function selections. The buyer shall specially ask for such special functions before ordering them, otherwise, we will make the machine as per the default settings.
