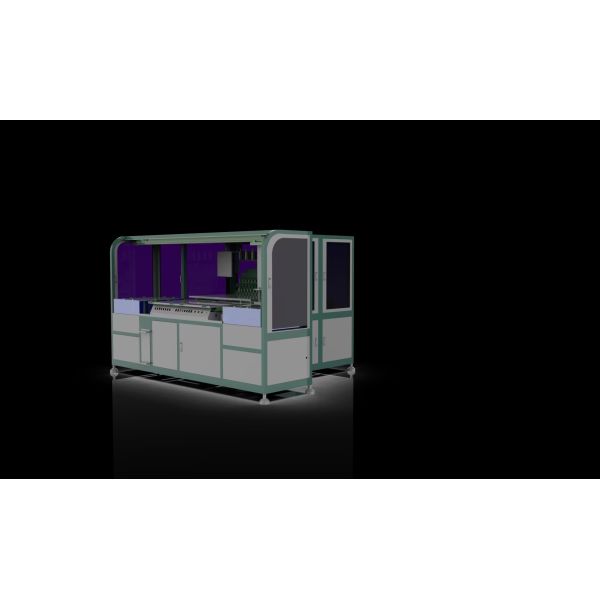

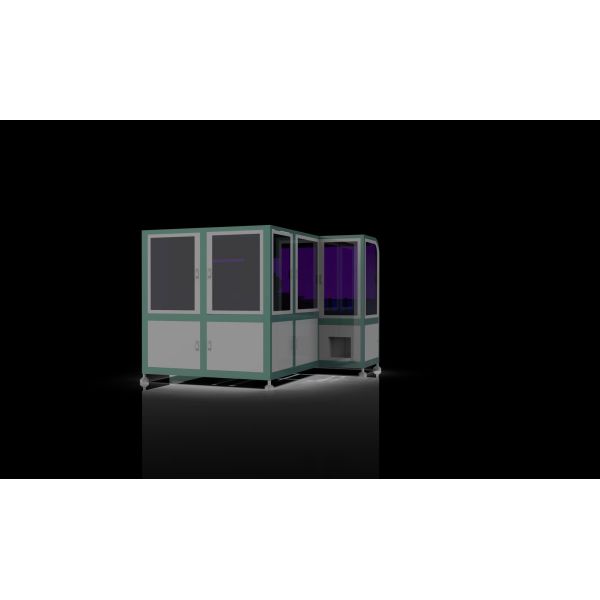

Full Auto Dual-interface Bank Card Inlay Sheet Antenna Embedder YAE-416FA

1.Full Auto Dual-interface Bank Card Inlay Sheet Antenna Embedder YAE-416FA_Introduction

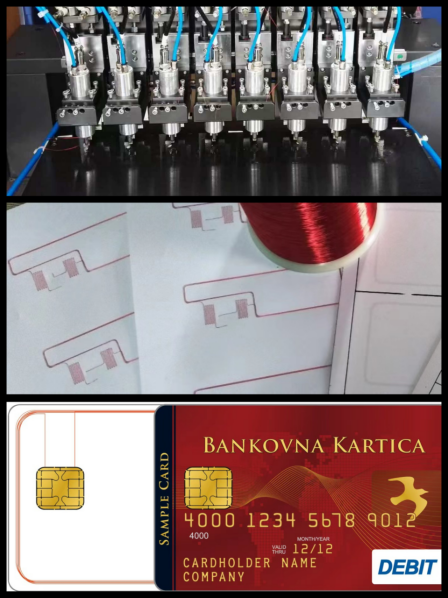

Full Auto Dual-interface Card Inlay Sheet Antenna Embedder YAE-416FA is designed for embedding or implanting the copper wire antenna onto RFID card INLAY middle sheets as per the designed antenna winding file with the advanced ultrasonic technology. It has totally 16 embedding heads with 4 working tables to ensure the higher work efficiency.

2.Full Auto Dual-interface Bank Card Inlay Sheet Antenna Embedder YAE-416FA_Functions

It is well known as the best choice as high-end dual-interface banking card middle antenna making machines.

Equipped with a wire disconnection shutdown alarm function, Full Auto Dual-interface Card Inlay Sheet Antenna Embedder YAE-416FA has the reliable functions of fully automatic sheet picking, automatic antenna winding or implanting, and automatic sheet collection.

3.Full Auto Dual-interface Bank Card Inlay Sheet Antenna Embedder YAE-416FA_Key features:

1) This machine greatly reduces the intensity of manual winding work and saves labor costs.

2) This machine can greatly improve the production efficiency and qualification rate of high-end dual interface financial card antenna production.

3) High-end 3-axis servo control and MOXA motion control system are applied in the control system to ensure high position precision.

4) The antenna embedding applies the advanced ultrasonic technology in order to ensure good embedding result and high efficiency.

4.Full Auto Dual-interface Bank Card Inlay Sheet Antenna Embedder YAE-416FA_Technical Parameters:

1). Speed: 6000-7000 pcs per hour.

2). Embedding head number: 16 heads suitable for 5*5, 3*8 or 4*8 layout.

3). Worktable number: 4 worktables

4). Dimension: around L2800×W1600×H1800mm

5). Weight: around 1500 KG

6). Power supply: AC220V 50/60HZ

7). Power: 6KW

8). Compressed air: 200L/M,6 kg/cm2

9). Control mode: PLC+ industrial computer

10). Precision: ±0.02mm

5.Full Auto Dual-interface Bank Card Inlay Sheet Antenna Embedder YAE-416FA_

Full Auto Dual-interface Card Inlay Sheet Antenna Embedder YAE-416FA is also named or known as Automatic DI Financial Cards Inlay/Prelam Sheet Antenna Maker, Dual-interface Banking Card Antenna Embedding Machine, High-end Financial Card INALY Sheet Antenna Implanting Machine, etc.
