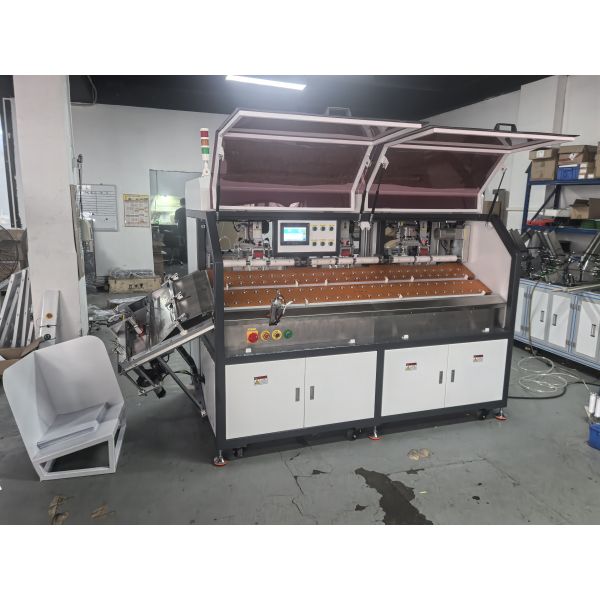

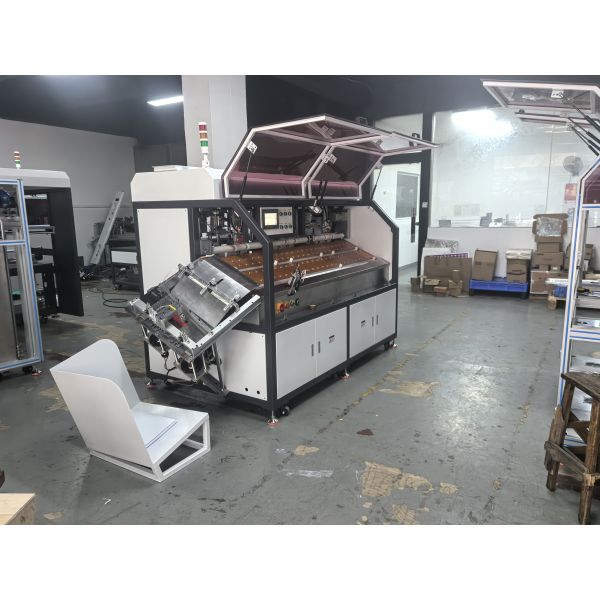

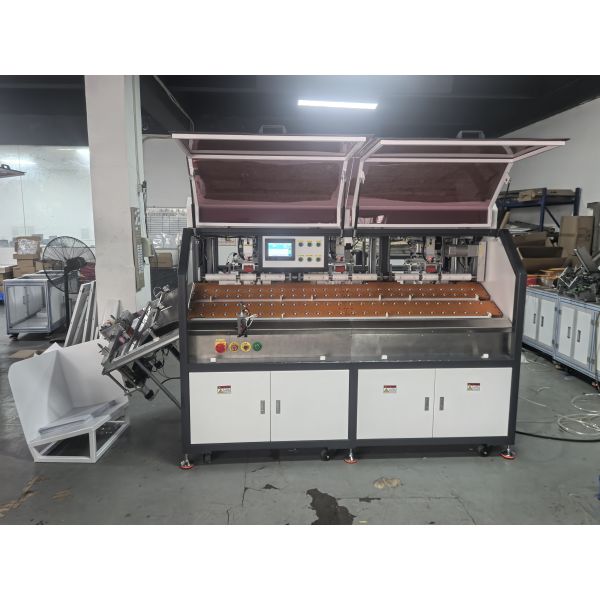

PLC + Servo system Controlled Automatic Sheet Collating and Bonding machine YSCB-1 for PVC ABS PET material

(Full Auto Card Sheet Bonding Machine, Card INLAY or Prelam Sheet Collating Machine, Plastic Card Sheet Collator and Bonder, Card Production Machine, Smart Card Making Machine)

1.Automatic Sheet Collating and Bonding machine YSCB-1_Introduction

Automatic Sheet Collating and Bonding machine YSCB-1 is designed for automatically picking, collating and bonding the card plastic sheets (total three stations for 2 printed sheets+1 middle core sheet or only 2 printed sheets), which can greatly improve the plastic card production productivity.

2.Automatic Sheet Collating and Bonding machine YSCB-1_Key Features:

v It has three sets of feeding stations with fully automatic feeding, sorting, automatic alignment, stacking, and welding;

v PLC program controls automatic operation, real-time monitoring and detection of discharge double sheets, automatic shutdown and alarm for abnormalities.

v Double acting cylinders are working with adjustable welding pressure;

v Six welding point configuration is available with adjustable welding point positions, making it difficult for the welded material to move.

v Adopting servo motor to drive the block belt for sheet feeding,and the feeding speed is faster and smoother.

v Ultrasonic welding process makes material positioning spot welding smoother and more secure.

v The spot welding time is controlled by PLC program, which is easy and convenient to set.

3.Automatic Sheet Collating and Bonding machine YSCB-1_Technical parameters:

4.Automatic Sheet Collating and Bonding machine YSCB-1_Introduction

FYI, As as one kind of special-purpose card production machines or smart card making machine, Automatic Sheet Collating and Bonding machine YSCB-1 is also known or named as Full Auto Card Sheet Bonding Machine, Card INLAY Prelam Sheet Collating Machine or Plastic Card Sheet Sorter and Welder,etc.
