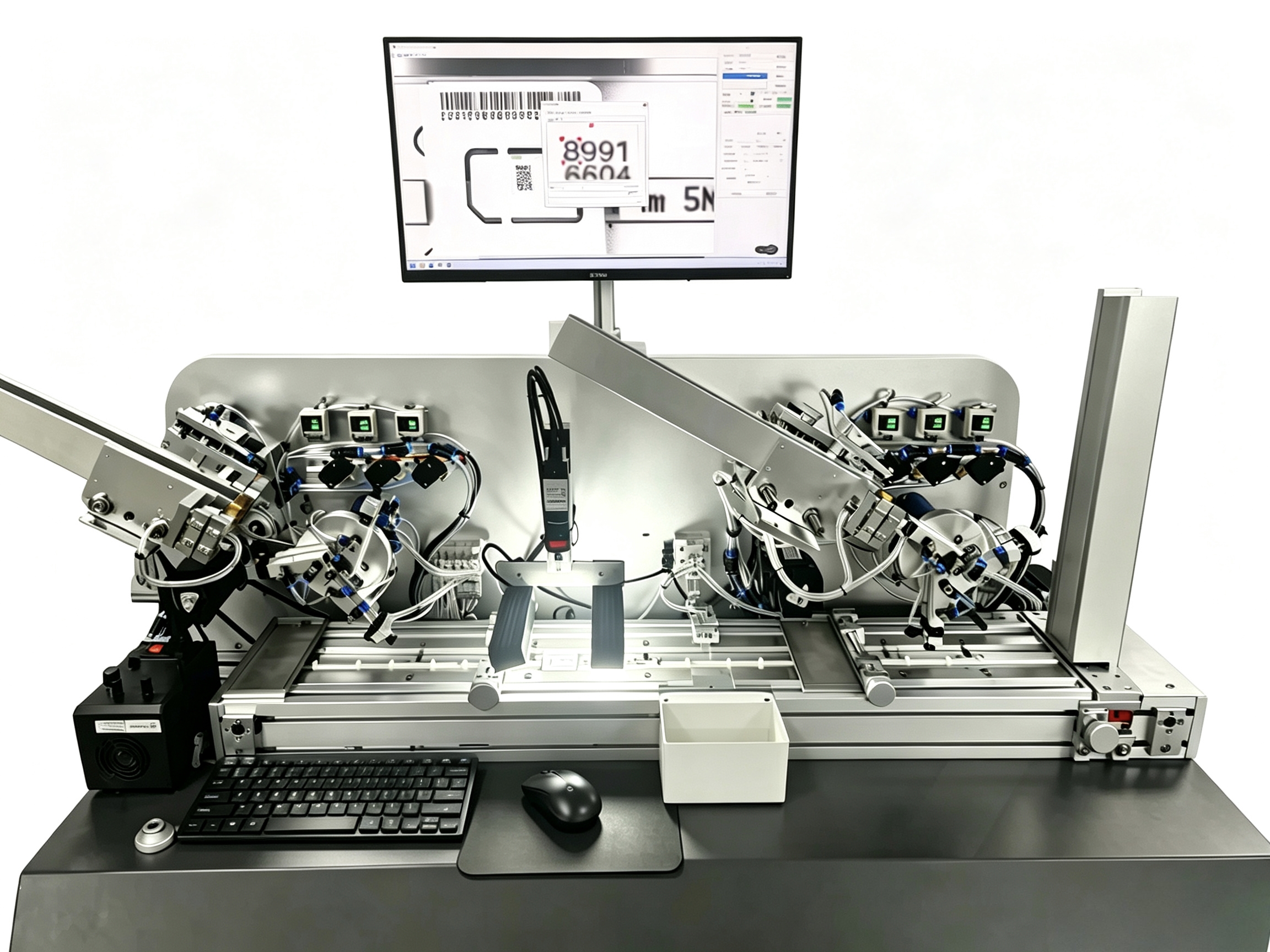

High-end Quality Control Machine SIM Card Data Verification for Half SIM Card and Quarter Cards

Product Introduction

SIM Card Data Verification Machine YDV-SIM-4000+ is well known as the professional high-end quality control machine for GSM SIM half cards and GSM SIM quarter cards by reading and checking the card surface personalized data.

SIM Card Data Verification Machine is also named or known as SIM Card data reading and comparing machine, SIM Card sequential number checker, SIM Card sequential number verification machine, SIM Card data sequence checking machine, SIM Card data quality control machine or SIM Card QC machine.

Machine Function:

SIM Card Data Verification Machine YDV-SIM-4000+ is featuring robust design with durable and reliable working performance . It can achieve the following functions:

1. OCR visual inspection unit is applied to compare the card surface data with the matching database to check whether the tested cards are the right cards with the right data sequence or not.

2. If any problematic cards (such as the cards with duplicate data or mismatched data) are identified, they can be rejected into rejection box.

3. If any data gap or data missing issue are detected during inspection, blank replacement cards will automatically be inserted into the corresponding problematic card position as a temporary record.

The machine can handle two types of card sizes: half size cards measuring 54*42mm and quarter cards measuring 42*26mm. The system utilizes the latest operating system.

Product Features :

Machine functional configuration:

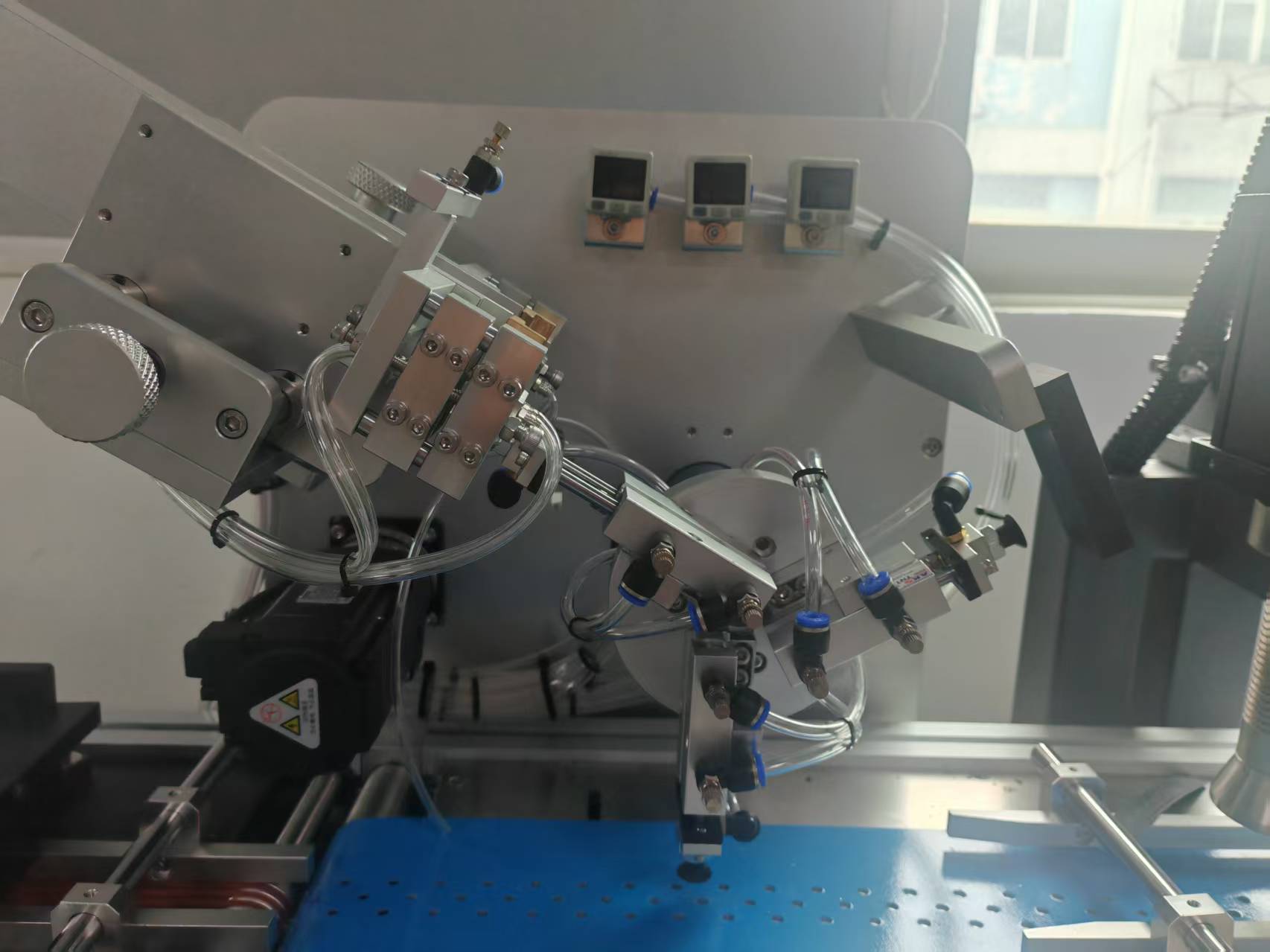

Card feeder #1(suitable for SIM half/quarter tested cards/adjustable) -card pick-placer #1 (3-hand rotation model/for tested cards)-OCR visual inspection unit (reading card surface SN data) -card rejection unit-Card feeder #2(for blank replacement cards/adjustable)-card pick-placer #2 (3-hand rotation model/for blank replacement cards)-card collection magazine (vertical type/adjustable)

Technical Parameters:

• Material specifications: half sized SIM card (54*42mm) and quarter sized SIM card(42*26mm).
• Working speed: 4000+ cards/hour.
• External dimensions: L550mm*W640mm*H1680mm.
• Weight: around 240 kg.
• Power Supply: AC 220V 50/60 Hz 1.5KW.
• Compressed air: 5-6 KG/CM².
• Control Method: Industrial Computer + Visual Positioning System.
