20W Fiber Laser/1200 Dpi Desktop Card Laser Engraving Personalization Machine YLEP-300
20W Fiber Laser/1200 Dpi Desktop Card Laser Engraving Personalization Machine YLEP-300
20W Fiber Laser/1200 Dpi Desktop Card Laser Engraving Personalization Machine YLEP-300
20W Fiber Laser/1200 Dpi Desktop Card Laser Engraving Personalization Machine YLEP-300
20W Fiber Laser/1200 Dpi Desktop Card Laser Engraving Personalization Machine YLEP-300
20W Fiber Laser/1200 Dpi Desktop Card Laser Engraving Personalization Machine YLEP-300
20W Fiber Laser/1200 Dpi Desktop Card Laser Engraving Personalization Machine YLEP-300
20W Fiber Laser/1200 Dpi Desktop Card Laser Engraving Personalization Machine YLEP-300
Specifications
Model Number :
YLEP-300
Price :
negotiable
Packaging Details :
plywood case
Brand Name :
YL
Suitable material :
PC, PVC, PET and PETG
Supply Ability :
15sets per month
Card feeder magazine capacity: :
200 cards.
Working Speed： :
300-400 Cards per hour for dual-side marking. 500-600 Cards per hour for single-side marking.
Delivery Time :
20 working days after getting the prepayment
Laser type and resolution: :
20W fiber laser/1200 dpi.
Place of Origin :
CHINA
Payment Terms :
D/A,L/C,D/P,T/T
Suitable card model: :
ID1/CR80 (ISO7810) 85.60×53.98mm
Machine size and weight :
L650*W550*H500mm/ around 35kg.
MOQ :
1set
Description
20W Fiber Laser/1200 Dpi Desktop Card Laser Engraving Personalization Machine YLEP-300
Product Overview

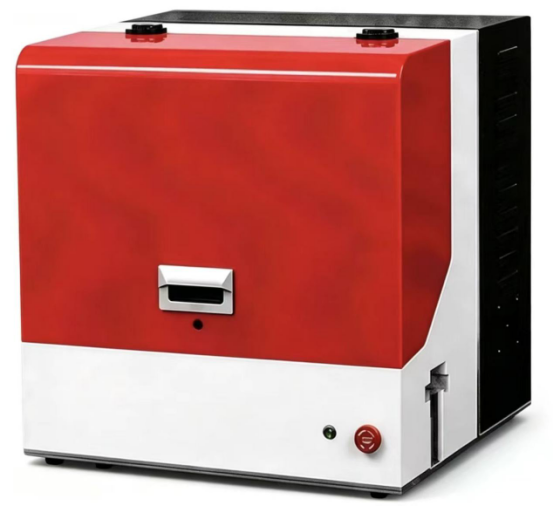

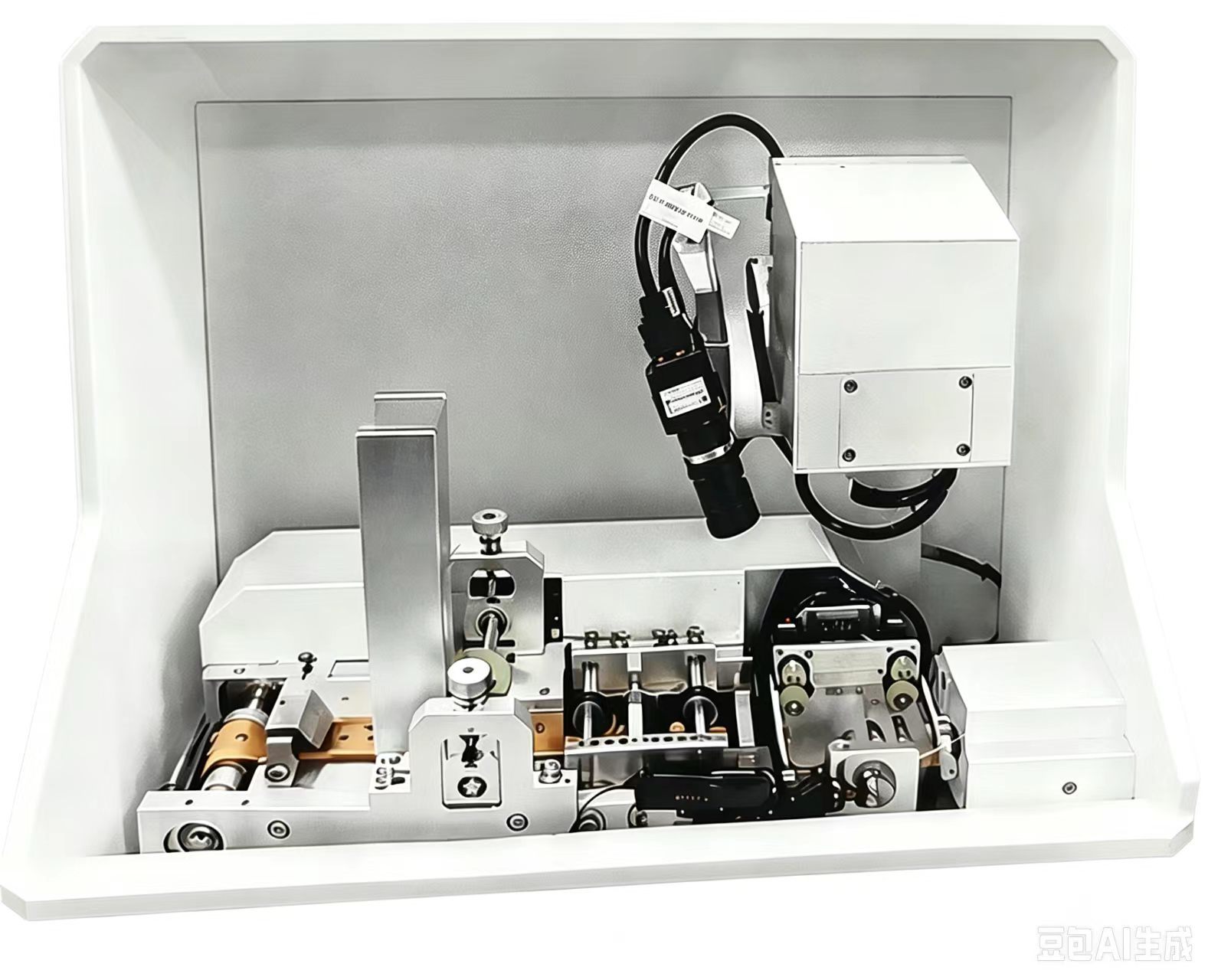

The Desktop Card Laser Engraving Personalization Machine YLEP-300 is specifically engineered for high-security ID card laser personalization, delivering fast, secure, and precise card engraving capabilities.

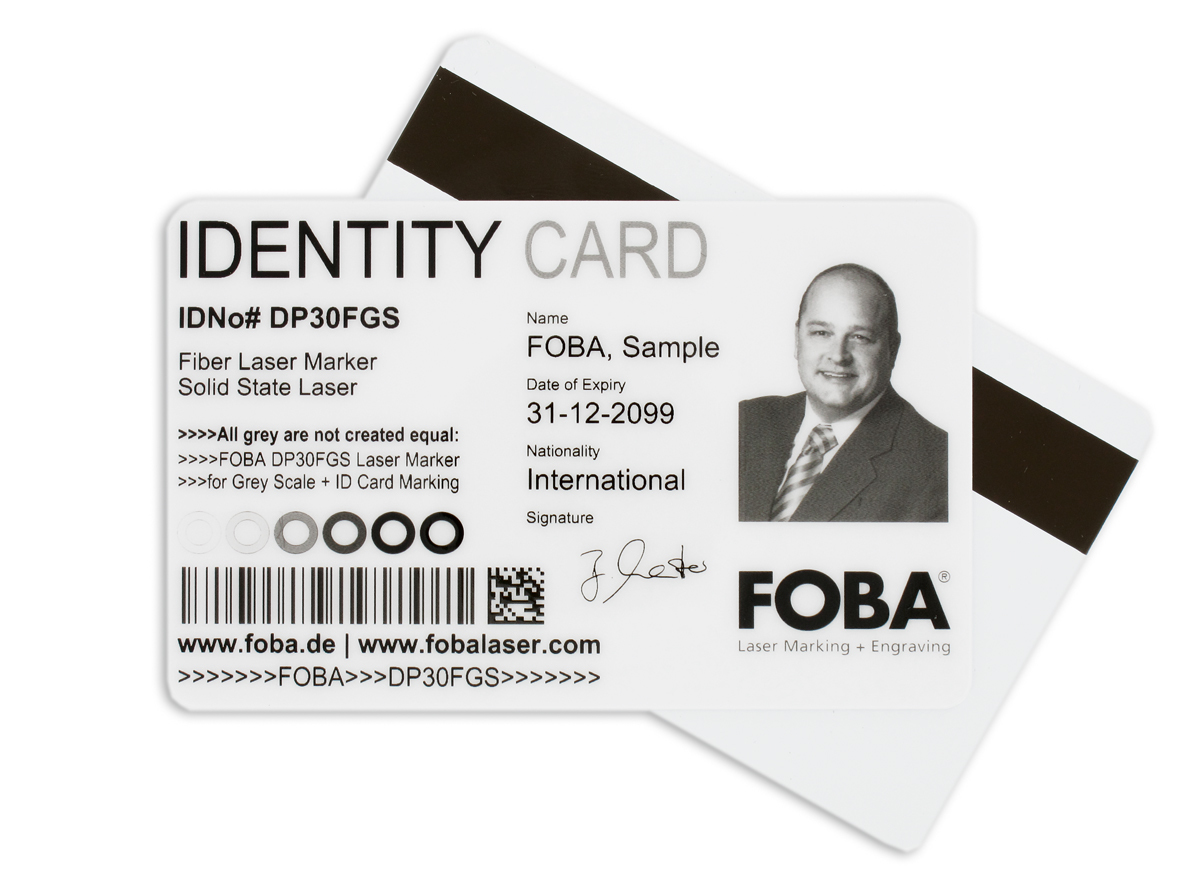

This compact industrial-grade laser engraving system permanently and precisely engraves text, photos, serial numbers, barcodes/QR codes, and variable data onto polycarbonate (PC) ID cards and other high-security cards. The resulting engraved content is exceptionally clear, durable, and tamper-resistant, making it ideal for secure card issuance projects worldwide.
The machine supports both single-side and dual-side engraving in a single workflow and achieves advanced security features including MLI/CLI digital fusion (using two machines), tactile effects, and microtext on card surfaces.
Working Speed 300-400 cards per hour (dual-side)
500-600 cards per hour (single-side)
Laser Type & Resolution 20W fiber laser / 1200 dpi
Card Feeder Capacity 200 cards
Suitable Card Materials PC, PVC, PET, PETG
Card Model Compatibility ID-1/CR80 (ISO7810) 85.60×53.98mm
Machine Dimensions & Weight 650×550×500mm / approximately 35kg
Key Advantages
  • Compact industrial design with sturdy construction for continuous desktop card issuance
  • High-contrast laser marking with tamper-proof, long-lasting durability
  • Advanced motion control system for precise, consistent laser positioning
  • Comprehensive personalization support for text, photos, serial numbers, barcodes, QR codes, and microtext
  • Modular maintenance design with easily accessible components to minimize downtime
  • Flexible deployment for both centralized card production and distributed card issuance applications
Application Scenarios
  • National ID cards and residence permits for government identity projects
  • High-security project documents for defense, law enforcement, and security plans
  • Corporate ID cards and access control management systems
  • Campus cards for student, teacher, and staff identity management
  • Transportation and travel cards for public transit and electronic ticketing
  • Visitor and contractor ID cards for temporary access management
Technical Specifications
  • Working Speed: 300-400 cards/hour (dual-side), 500-600 cards/hour (single-side)
  • Laser Type & Resolution: 20W fiber laser / 1200 dpi
  • Card Feeder Capacity: 200 cards
  • Compatible Materials: PC, PVC, PET, PETG
  • Card Model: ID-1/CR80 (ISO7810) 85.60×53.98mm
  • Dimensions & Weight: 650×550×500mm / approximately 35kg
