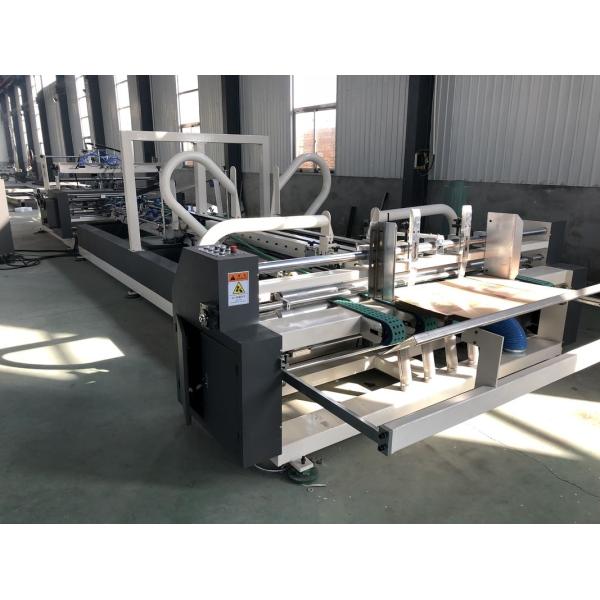

Simple Structure Carton Folder Gluer Machine Corrosion Resistant
Simple Structure Carton Folder Gluer Machine Corrosion Resistant
Simple Structure Carton Folder Gluer Machine Corrosion Resistant
Simple Structure Carton Folder Gluer Machine Corrosion Resistant
Simple Structure Carton Folder Gluer Machine Corrosion Resistant
Simple Structure Carton Folder Gluer Machine Corrosion Resistant
Specifications
Brand Name :
AD-pack
Model Number :
Automatic folder gluing machine
Place of Origin :
CHINA
MOQ :
1SET
Price :
1000-50000usd
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
1000 sets
Delivery Time :
7-10 days
Packaging Details :
as per need
Voltage :
380V, 220V/380V, 380V/50HZ, 220v/380v/440v, 220/110
Condition :
New
After-sales service provided :
Engineers available to service machinery overseas, Online support, Video technical support, Field maintenance and repair service, Field installation
Type :
Automatic folder gluing machine
Automatic grade :
Automatic, Semi-Automatic
Driven type :
Electric, Mechanical
Application :
Machinery & Hardware, Food, Medical, Textiles, Commodity
Description

Automatic High speed stitcher and folder gluer machine for corrugated box

1,Automatic folder gluer machine:
This machine can achieve whole computer adjustment for gluer unit, feeding unit and folder unit, just enter three data on the touch screen (Length, width, height size), the machine can automatic adjustment to exact position.
This machine was also setting the single computer NC adjustment, it can adjustment for any single position, at the same time, It was also setting the adjustment button, which can meet any different operation habit.
2,Paper feeding department:

1. Vacuum suction feeding to feed warping paperboard easily.
2. Quality electromagnetic clutch and brake adopted, feeding section is controlled independent, operation easily.
3. Scorer wheel adjustable, suit for 2-8mm thick paperboard.
4. Second creasing striations can impress again the paperboard which was not creased well.

5. Feeding unit used the printing machine model gear transmission, more steady than tradition model chain wheel and chain transmission, Less noise, feeding high precision.

3,Automatic gluing and folding part:
1. Simple structure and high reliability, glue quantity adjustable, cleaning easily.
2. Stainless steel glue wheel adopted, long life and saving glue cost.
3. Improved quality rubber belt adopted, automatic folding.
4. with paperboard rectify device and creasing rectify device.
5. The Folder belts adopt Germany's force and Switzerland brand
4,Automatic packing and output part:
Principle if count to stacking is easy and reliable.
It is controlled by digital and easy operation, keep working to input data, count automatically and output accurate.
It has function with correction tolerance can be adjustable.
Output counter adopts pneumatic and accurate movement and fast..

Model

QZD-2000

QZD-2400

QZD-2800

Max board size

1000×2000mm

1000x2400mm

1200×2800mm

Min board size

300×680mm

300x800mm

300×800mm

Installation area

2400×13500mm

2800x15500mm

3000×15500mm

Power required

11.5kw

11.5kw

11.5kw

Simple Structure Carton Folder Gluer Machine Corrosion Resistant

Simple Structure Carton Folder Gluer Machine Corrosion Resistant

Simple Structure Carton Folder Gluer Machine Corrosion ResistantSimple Structure Carton Folder Gluer Machine Corrosion Resistant

Simple Structure Carton Folder Gluer Machine Corrosion Resistant

Simple Structure Carton Folder Gluer Machine Corrosion Resistant
