Specifications
Model Number :
MKCP-FPC-G3
Place of Origin :
China
Service life :
100-200 times
High temperature resistance performance :
≤260℃
Water absorption standard :
< 8% (3-8%)
Tensile strength: :
≥ 25 MPa
Thickness :
1.5-2.0mm.
Thickness tolerance :
±0.3mm.
Buffer standard :
≥ 12%
Size tolerance (length or width): :
customized size with tolerence ±2mm.
Brand Name :
MK
Description

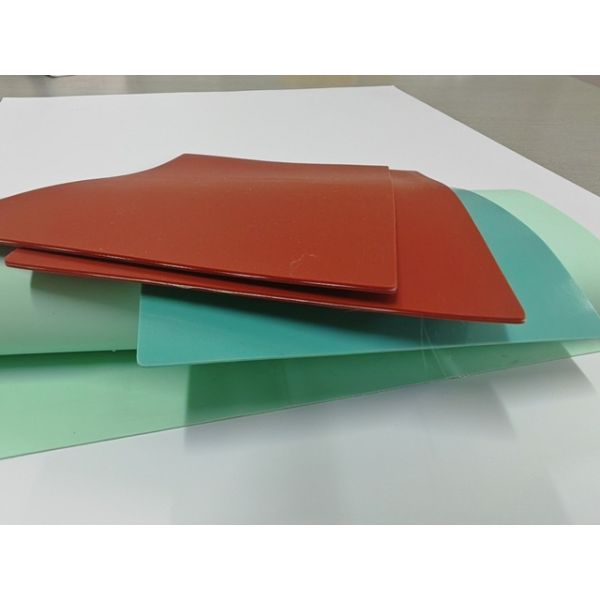

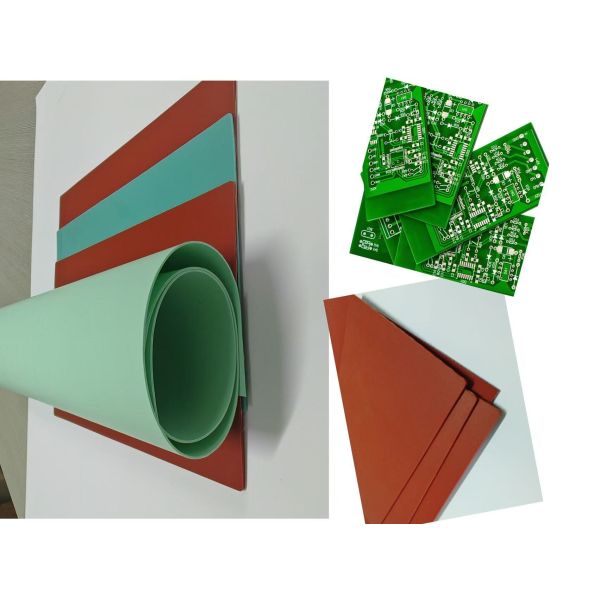

MKCP-FPC-G3 FPC Cushion Pad
100-200 Times Service Life 1.5-2.0mm Thick FPC PCB (Flexible Printed Circuit Board) Cushion Pad
Product Overview
FPC (Flexible Printed Circuit) cushion pads are specialized buffering materials designed for flexible PCB lamination processes. These high-performance pads offer exceptional flexibility, durability, and thermal resistance for modern electronic manufacturing applications.
Specification Value
Service Life 100-200 times
High Temperature Resistance ≤260℃
Thickness 1.5-2.0mm
Thickness Tolerance ±0.3mm
Size Tolerance (Length or Width) ±2mm
Tensile Strength ≥ 25 MPa
Buffer Standard ≥ 12%
Water Absorption Standard < 8% (3-8%)
Key Features
  • Extended service life of 100-200 lamination cycles significantly reduces production costs
  • Superior performance in flatness, wear resistance, and dimensional stability compared to traditional Kraft paper
  • Excellent high-temperature resistance up to 260℃ without carbonization or brittleness
  • Optimal buffering effect and thermal conductivity with stable compression and expansion coefficients
  • Flame retardant, non-toxic, odorless, dust-free with excellent breathability
  • Good tear resistance for reliable performance in automated operations
Product Structure
The FPC cushion pad replaces multiple sheets of hot press Kraft paper with a single, reusable pad, saving production material costs by at least 20%. The multi-layer structure includes:
  • Silastic layer
  • High elasticity fiber
  • High molecular weight polymer
  • Tensile tear layer
Technical Specifications
  • Service life: 100-200 cycles
  • High temperature resistance: ≤260℃
  • Thickness: 1.5-2.0mm
  • Thickness tolerance: ±0.3mm
  • Size tolerance (length or width): ±2mm
  • Tensile strength: ≥ 25 MPa
  • Buffer standard: ≥ 12%
  • Water absorption standard: < 8% (3-8%)
Applications
Specially developed for hot lamination buffering during flexible PCB manufacturing, the MKCP-FPC-G3 cushion pad delivers comprehensive lamination performance and higher stability. It significantly improves yield and efficiency in flexible PCB and flexible-rigid PCB lamination processes.
