German/Japan Raw Material ≥450HRC Hardness 1.0-2.0mm Thick Printed Circuit Board PCB/CCL Thin Press Plate MKSP-S301
German/Japan Raw Material ≥450HRC Hardness 1.0-2.0mm Thick Printed Circuit Board PCB/CCL Thin Press Plate MKSP-S301
German/Japan Raw Material ≥450HRC Hardness 1.0-2.0mm Thick Printed Circuit Board PCB/CCL Thin Press Plate MKSP-S301
German/Japan Raw Material ≥450HRC Hardness 1.0-2.0mm Thick Printed Circuit Board PCB/CCL Thin Press Plate MKSP-S301
German/Japan Raw Material ≥450HRC Hardness 1.0-2.0mm Thick Printed Circuit Board PCB/CCL Thin Press Plate MKSP-S301
German/Japan Raw Material ≥450HRC Hardness 1.0-2.0mm Thick Printed Circuit Board PCB/CCL Thin Press Plate MKSP-S301
Specifications
Normal thickness (mm): :
0.5,1.0, 1.2mm
Model Number :
MKSP-S301
Hardness :
≥450HRC
Place of Origin :
China
Thickness tolerance :
±0.10
MOQ :
10pcs
Normal sizes of copper clad laminate CCL lamination steel plate/press plate (L * W in mm): :
1910*1270/2210*1270/2220*1270.
Price :
negotiable
Normal sizes of PCB lamination steel plate/press plate (L*W in mm): :
1500*1295/1300*800/1295*787/ 1295*1613/1295*1143/1295*787/ 1285*750/1280*1120/1280*1070/1280*970/ 1270*1118/1270*1070/1143*660/673*571/660*508/24"*28".
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Average thermal expansion coefficient (10-6/℃) :
17
Delivery Time :
15days after getting the prepayment
Surface finish :
Ra≤0.14um/Rz≤1.50um
Packaging Details :
export package
Steel material :
German or Japan raw materialSUS301H
Brand Name :
MK
Description

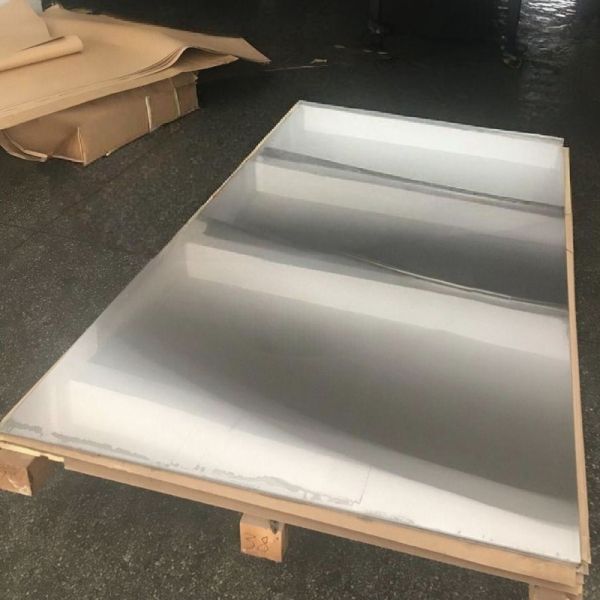

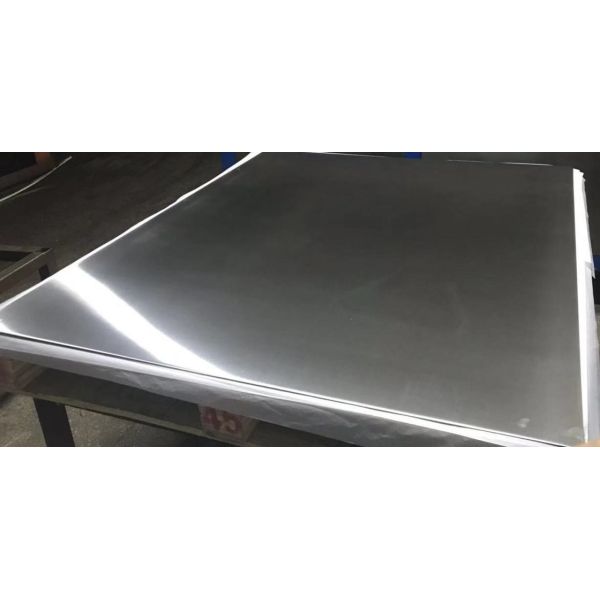

German/Japan Raw Material ≥450HRC Hardness 1.0-2.0mm Thick Printed Circuit Board PCB/CCL Thin Press Plate MKSP-S301
PCB/CCL Thin Press Plate MKSP-S301 features thin sheet thickness using high-quality Japanese or German raw material steel (SUS301H model), offering competitive pricing with reliable quality performance.
Product Specifications
Steel Material SUS301H
Normal Thickness (mm) 0.5, 1.0, 1.2
PCB Lamination Plate Sizes (L*W mm) 1500*1295, 1300*800, 1295*787, 1295*1613, 1295*1143, 1295*787, 1285*750, 1280*1120, 1280*1070, 1280*970, 1270*1118, 1270*1070, 1143*660, 673*571, 660*508, 24"*28"
CCL Lamination Plate Sizes (L*W mm) 1910*1270, 2210*1270, 2220*1270
Technical Parameters
  • Steel material: SUS301H
  • Normal thickness (mm): 0.5, 1.0, 1.2
  • Hardness: ≥450HRC
  • Work temperature: ≤280℃
Performance Specifications
Parameter Mass-Lam Plate Pin-Lam Plate
Thickness 1.0-2.0mm 1.0-2.0mm
Width ≤1300 ≤1300
Length ≤2410 ≤2410
Thickness Tolerance ±0.10 ±0.10
Surface Roughness (um) Ra≤0.15 Rz≤1.5 Ra≤0.15 Rz≤1.5
Warpage Degree ≤3mm/M ≤3mm/M
L/W Size Tolerance ±1mm ±1mm
Hardness HRC ≥450HRC ≥450HRC
Work Temperature ≤280℃ ≤280℃
Parallelism ≤0.03 ≤0.03
Thermal Conductivity 15W/MK 15W/MK at 300℃
Average Thermal Expansion Coefficient (10-6/℃) 17 17
Surface Finish Ra≤0.14um/Rz≤1.50um Ra≤0.14um/Rz≤1.50um
Key Features
  • Competitive pricing advantage with reliable lamination performance
  • Superior thermal conductivity and thermal expansion coefficient
  • Solves copper plate wrinkling problems
  • Compatible with various lamination steel plate washing machines
Applications

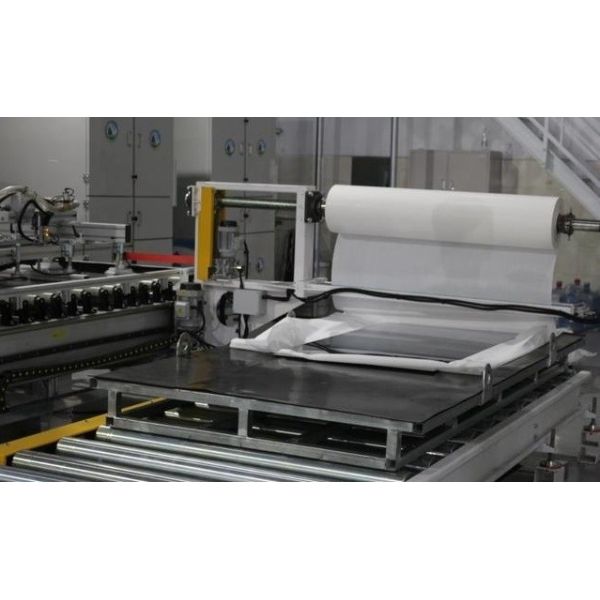

Using thinner press plates increases laminated layer capacity for enhanced productivity. This reduces temperature differentials between layers in the laminator, improving heating and cooling efficiency.
German/Japan Raw Material ≥450HRC Hardness 1.0-2.0mm Thick Printed Circuit Board PCB/CCL Thin Press Plate MKSP-S301 German/Japan Raw Material ≥450HRC Hardness 1.0-2.0mm Thick Printed Circuit Board PCB/CCL Thin Press Plate MKSP-S301
