Specifications
Model Number :
MKSP-CCL-400
Average thermal expansion coefficient (10-6/℃) :
15~17
Place of Origin :
China
MOQ :
50pcs
Price :
negotiable
Steel material: :
NAS301 JAPAN
Delivery Time :
15days after getting the prepayment
Conventional size of CCL lamination steel plate (L * W in mm): :
2220 * 1270/2210 * 1270/1910 * 1270/1500*1295/1300*800 /1295*787/1295*1613/1295*1143/1295*787
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Hardness HRC :
44HRC±2
Conventional thickness (mm) :
1.0-1.8mm
Packaging Details :
export package
Service life :
8-10 years (Note: after repeated usage, the steel plate will become thinner. It is not recommended to continue using after the thickness is less than 1.3mm/the steel plate thickness between 1.3-1.6mm should ensure no deformation or warping, and the hardnes
Brand Name :
MK
Description

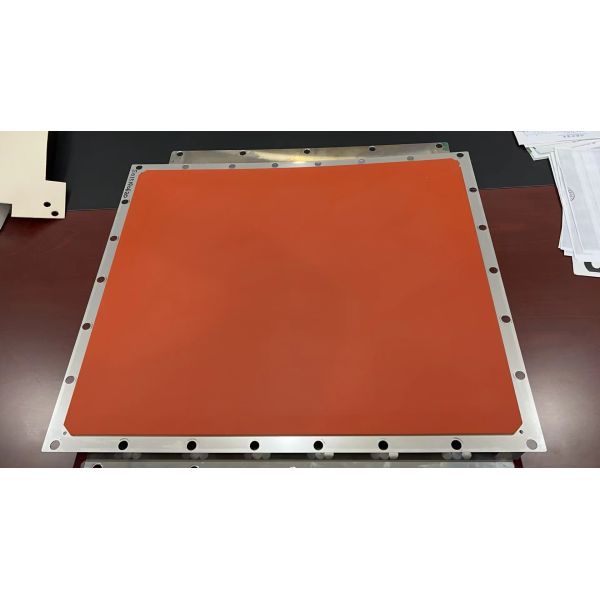

NAS301 JAPAN Materials Copper Clad Laminate Lamination Steel Plate MKSP-CCL-400
Our MKSP-CCL-400 is a mature and reliable high-precision lamination steel plate specifically designed for copper clad laminate (CCL) lamination applications. With years of specialization in CCL laminating auxiliary materials, we provide premium lamination steel plates that meet the stringent requirements of large-sized CCL manufacturing.
Product Overview
We serve as an authorized agent for high-end Japanese lamination steel plates, including NAS630 and NAS301 precipitation hardening steel plates with high expansion coefficients. Our products are trusted throughout the CCL/PCB industry for their exceptional hardness, optimized surface roughness, and superior thermal conductivity performance.
Key Features & Benefits
  • Manufactured from premium Japanese steel plate raw materials
  • Advanced heat treatment technology and precision grinding processes
  • Minimal high-temperature warpage with extended service life
  • Excellent thermal conductivity and controlled thermal expansion coefficient
  • High corrosion resistance and superior hardness characteristics
  • Compatible with all types of lamination steel plate washing equipment
  • Reliable performance throughout the CCL lamination process
Performance Specifications
Parameter Mass-Lam Plate Pin-Lam Plate
Thickness 1.0-1.8mm 1.0-1.8mm
Width ≤1060mm ≤1060mm
Length ≤3150mm ≤3150mm
Thickness Tolerance ±0.05mm ±0.05mm
Surface Roughness Ra≤0.15μm Rz≤1.5μm Ra≤0.15μm Rz≤1.5μm
Warpage Degree ≤3mm/M ≤3mm/M
Hardness HRC 44HRC±2 44HRC±2
Work Temperature ≤400℃ ≤400℃
Thermal Conductivity ≥18W/MK at 300℃ ≥18W/MK at 300℃
Technical Specifications
  • Steel Material: Japanese NAS630 and NAS301 precipitation hardening steel
  • Conventional Thickness: 1.5mm, 1.6mm, 1.8mm, 2.0mm
  • Service Life: 8-10 years (recommended minimum thickness: 1.3mm)
  • Standard Sizes (L × W in mm): 2220×1270, 2210×1270, 1910×1270, 1500×1295, 1300×800, 1295×787, 1295×1613, 1295×1143
Applications & Compatibility

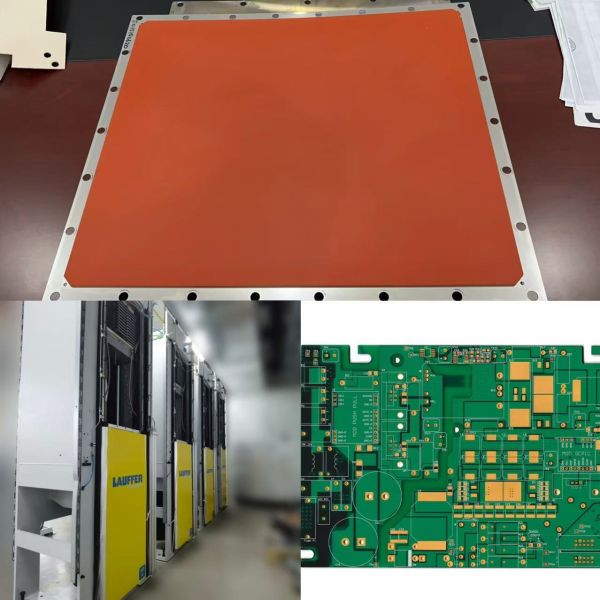

Also known as CCL laminated steel plate, pressed steel plate, partition steel plate, or mirror steel plate. Our high-end lamination steel plates are compatible with various CCL laminators including BURKLE, LAUFFER, CEDAL, HELD, DATIAN, WEIDI, DIPUER, and other major brands.
