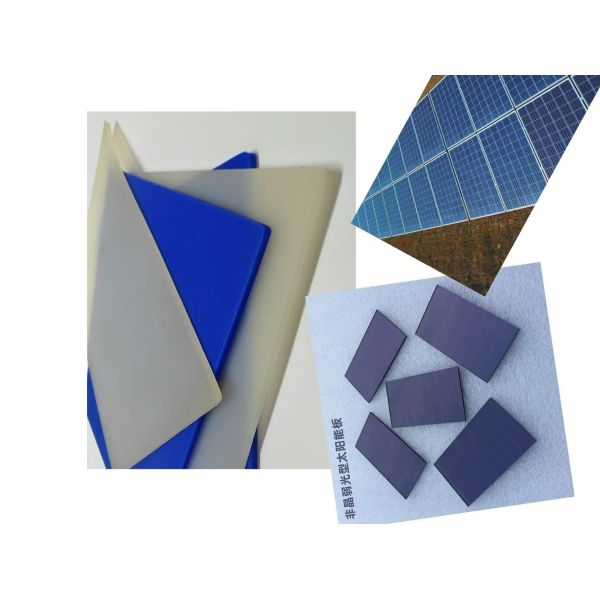

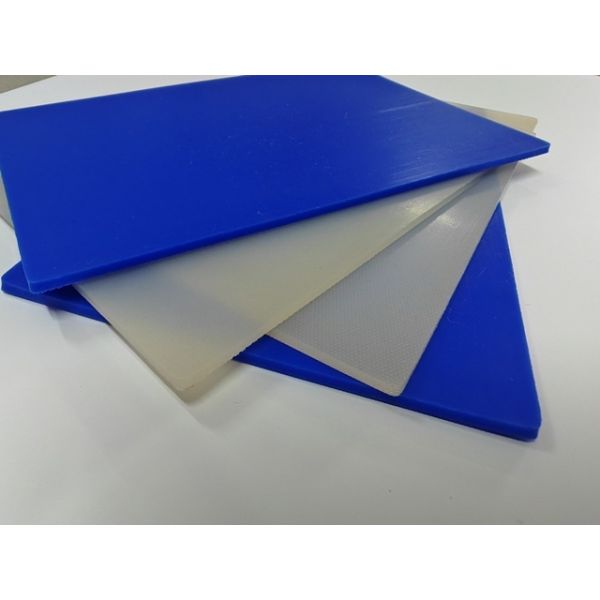

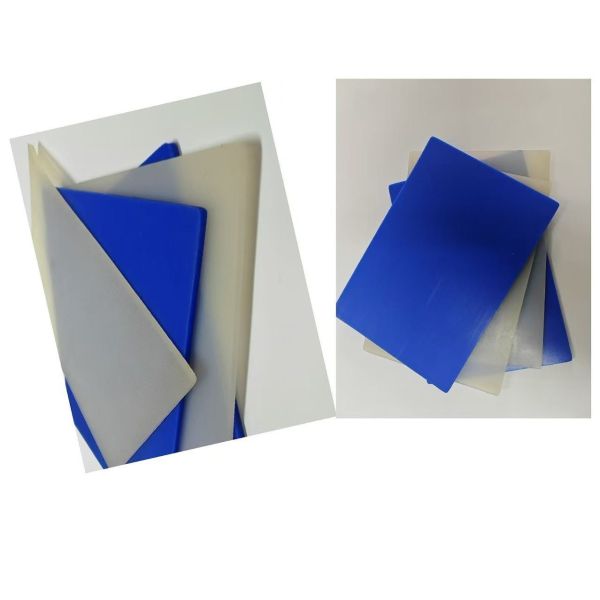

180-240℃ Temperature resistance Rubber Cushion Pads for Solar Photovoltaic Panel Lamination MKCP-PV-G1
180-240℃ Temperature resistance Rubber Cushion Pads for Solar Photovoltaic Panel Lamination MKCP-PV-G1
180-240℃ Temperature resistance Rubber Cushion Pads for Solar Photovoltaic Panel Lamination MKCP-PV-G1
180-240℃ Temperature resistance Rubber Cushion Pads for Solar Photovoltaic Panel Lamination MKCP-PV-G1
180-240℃ Temperature resistance Rubber Cushion Pads for Solar Photovoltaic Panel Lamination MKCP-PV-G1
180-240℃ Temperature resistance Rubber Cushion Pads for Solar Photovoltaic Panel Lamination MKCP-PV-G1
Specifications
Model Number :
MKCP-PV-G1
Normal service life (times) :
＞2000,＞3000,＞4000,＞6000
Place of Origin :
China
MOQ :
50pcs
Price :
negotiable
Packaging Details :
export package
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
EVA resistant（comparative） :
Middle level or higher level
Hardness (Shaw A) :
75±2/60±2/70±2
Supply Ability :
1 million squares per month
Tear strength N/mm≧ :
39-47
Appearance and color :
Black, glossy/matte or both sides glossy
Delivery Time :
15days after getting the prepayment
Pulling strength Mpa≧ :
11.5, 14.2,16.8,48
Brand Name :
MK
Description
180-240℃ Temperature Resistance Rubber Cushion Pads for Solar Photovoltaic Panel Lamination MKCP-PV-G1
Rubber Cushion Pads for Solar Photovoltaic Panel Lamination MKCP-PV-G1 play a critical role in solar PV photovoltaic panel (PV module) laminators or presses during the production of solar photovoltaic panels and modules. These silicon rubber pads are designed to protect PV modules throughout the entire lamination process.
Key Features
The lamination process is essential for ensuring high-quality PV panels. This process involves placing panel components into the laminator, creating a vacuum to remove air between components, then heating to melt EVA and applying pressure. The molten EVA flows to fill gaps between glass, cells, and back plates while simultaneously extruding intermediate bubbles. This creates strong bonds between battery sheets, glass, and back plates before cooling to solidify the assembly.
Technical Specifications
Type MK1200 MK2200 MK3200 MK4200
Hardness (Shaw A) 70±2 70±2 65±2 75±2/60±2
Tensile Strength Mpa≧ 11.5 14.2 16.8 48
Tear Strength N/mm≧ 45 47 39 45
Temperature Resistance ℃ 220 240 180 180
EVA Resistance (Comparative) Middle Level Middle Level Higher Level Higher Level
Normal Service Life (times) ＞2000 ＞3000 ＞4000 ＞6000
Appearance and Color Black, glossy/matte or both sides glossy Black, grey, both sides glossy Black, glossy/matte or both sides glossy Black, glossy/matte or both sides glossy
Remarks: Maximum width can reach 3200mm without seams. Special specifications can be customized according to user requirements.
Applications
We are recognized as a leading producer and supplier of high-quality silicon rubber cushion and buffering pads used in solar PV module lamination processes.
180-240℃ Temperature resistance Rubber Cushion Pads for Solar Photovoltaic Panel Lamination MKCP-PV-G1 180-240℃ Temperature resistance Rubber Cushion Pads for Solar Photovoltaic Panel Lamination MKCP-PV-G1
