Specifications
Model Number :
MKSP-S630T
Product Name :
PCB & CCL SUS630T Lamination Press Plate
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Packaging Details :
Strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Max Length :
≤2410mm
Raw Material :
High-quality domestic SUS630T stainless steel
Supply Ability :
10000 Square Meters per Month
Max Width :
≤1300mm
Surface Roughness :
Ra≤0.15μm, Rz≤1.5μm
Delivery Time :
10-20 working days
Standard Thickness :
1.0-2.0mm
Brand Name :
MK
Description

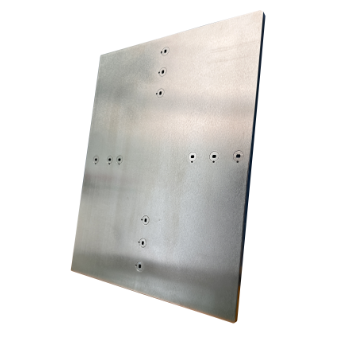

PCB & CCL SUS630T High-Hardness High-Precision Lamination Press Plate
MKSP-S630T high-precision lamination press plate utilizes premium domestic SUS630T stainless steel materials, delivering stable and reliable lamination performance with superior cost competitiveness. This specialized lamination steel plate for PCB and CCL production features exceptional thermal performance, high hardness, and outstanding corrosion resistance.
Product Advantages
SUS630T High-Hardness Lamination Press Plate | High Precision, High Temperature Resistance, Energy-Saving & Cost-Effective Solution for PCB & CCL Lamination
Feature Specification & Benefits
Raw Material High-quality domestic SUS630T stainless steel with mature, stable material formula
Cost Performance Reliable industrial-grade lamination quality with highly competitive pricing
Thermal Performance Excellent thermal conductivity and stable thermal expansion coefficient for significant energy and cost savings
Material Performance High hardness up to 50HRC±2, excellent corrosion resistance and mechanical stability
Equipment Compatibility Universally compatible with all types of industrial lamination steel plate washing machines
Application Scenarios Professional high-precision press plate for PCB printed circuit board and CCL copper clad laminate lamination processes
Standard Sizes
PCB Lamination Press Plate (L × W, mm):
1500×1295, 1300×800, 1295×787, 1295×1613, 1295×1143, 1295×787, 1285×750, 1280×1120, 1280×1070, 1280×970, 1270×1118, 1270×1070, 1143×660, 673×571, 660×508, 24"×28"
CCL Lamination Press Plate (L × W, mm):
1910×1270, 2210×1270, 2220×1270
Detailed Performance Parameters
Performance Parameter Mass-Lam Plate (SUS630T) Pin-Lam Plate (SUS630T)
Thickness 1.0-2.0mm 1.0-2.0mm
Max Width ≤1300mm ≤1300mm
Max Length ≤2410mm ≤2410mm
Thickness Tolerance ±0.10mm ±0.10mm
Surface Roughness Ra≤0.15μm, Rz≤1.5μm Ra≤0.15μm, Rz≤1.5μm
Positioning Hole Tolerance -- ±0.10mm
Standard Bushing Slot Tolerance -- 0 ~ +0.10mm
Warpage Degree ≤3mm/M ≤3mm/M
Length & Width Tolerance ±1mm ±1mm
Yield Strength ≥1175 N/mm² ≥1175 N/mm²
Tensile Strength ≥1400 N/mm² ≥1400 N/mm²
Extensibility ≥5% ≥5%
Hardness 50HRC±2 50HRC±2
Max Working Temperature ≤400℃ ≤400℃
Parallelism ≤0.03mm ≤0.03mm
Diagonal Deviation 1-2mm 1-2mm
Thermal Conductivity (@300℃) ≥18W/MK ≥18W/MK
Average Thermal Expansion Coefficient 10~12 (10⁻⁶/℃) 10~12 (10⁻⁶/℃)
