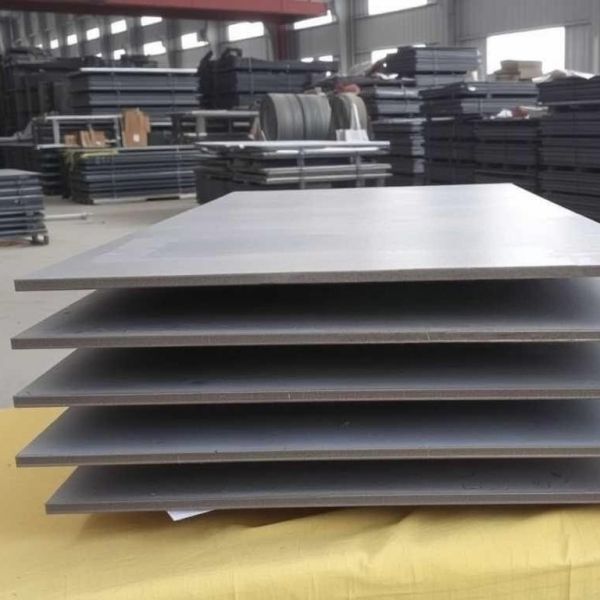

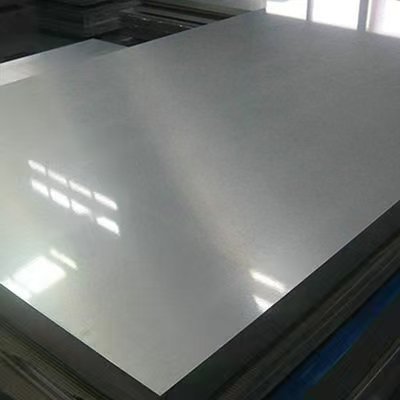

Steel Material SUS630T With High Corrosion Resistance And Hardness Printed Circuit Board PCB/CCL Press Plate MKSP-S630T
Steel Material SUS630T With High Corrosion Resistance And Hardness Printed Circuit Board PCB/CCL Press Plate MKSP-S630T
Steel Material SUS630T With High Corrosion Resistance And Hardness Printed Circuit Board PCB/CCL Press Plate MKSP-S630T
Steel Material SUS630T With High Corrosion Resistance And Hardness Printed Circuit Board PCB/CCL Press Plate MKSP-S630T
Steel Material SUS630T With High Corrosion Resistance And Hardness Printed Circuit Board PCB/CCL Press Plate MKSP-S630T
Steel Material SUS630T With High Corrosion Resistance And Hardness Printed Circuit Board PCB/CCL Press Plate MKSP-S630T
Specifications
Model Number :
MKSP-S630T
Normal thickness (mm): :
1.0, 1.2, 1.5, 1.6, 1.8, 2.0mm
Place of Origin :
China
Thickness tolerance :
±0.10
MOQ :
10pcs
Normal sizes of PCB lamination steel plate/press plate (L*W in mm): :
1500*1295/1300*800/1295*787/1295*1613/1295*1143/1295*787/1285*750/1280*1120/1280*1070/1280*970/1270*1118/1270*1070/1143*660/673*571/660*508/24"*28".
Price :
negotiable
Normal sizes of copper clad laminate CCL lamination steel plate/press plate (L * W in mm): :
1910*1270/2210*1270/2220*1270.
Delivery Time :
15days after getting the prepayment
Surface roughness (um) :
Ra≤0.15 Rz≤1.5
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Models :
Mass lam and pin lam plate
Packaging Details :
export package
Hardness HRC :
50HRC±2
Brand Name :
MK
Steel material :
SUS630T.
Description
SUS630T Steel PCB/CCL Press Plate MKSP-S630T
The MKSP-S630T PCB/CCL Press Plate utilizes high-quality SUS630T steel material, offering exceptional corrosion resistance and hardness for printed circuit board and copper clad laminate lamination applications. This cost-effective solution delivers reliable performance with competitive pricing advantages.
Product Overview
Our PCB/CCL Press Plate ESSP-S630 is manufactured using premium SUS630T steel, providing outstanding quality reliability at competitive pricing. This high-precision lamination steel plate has proven reliable performance in PCB and CCL laminators.
Specification Details
Steel Material SUS630T
Available Thickness (mm) 1.0, 1.2, 1.5, 1.6, 1.8, 2.0
PCB Press Plate Sizes (L×W mm) 1500×1295, 1300×800, 1295×787, 1295×1613, 1295×1143, 1295×787, 1285×750, 1280×1120, 1280×1070, 1280×970, 1270×1118, 1270×1070, 1143×660, 673×571, 660×508, 24"×28"
CCL Press Plate Sizes (L×W mm) 1910×1270, 2210×1270, 2220×1270
Key Features
  • Competitive pricing with reliable lamination performance
  • Superior thermal conductivity and thermal expansion coefficient for cost and energy savings
  • High corrosion resistance and hardness
  • Compatible with various lamination steel plate washing machines
Technical Specifications
Parameter Mass-Lam Plate Pin-Lam Plate
Thickness 1.0-2.0mm 1.0-2.0mm
Width ≤1300mm ≤1300mm
Length ≤2410mm ≤2410mm
Thickness Tolerance ±0.10mm ±0.10mm
Surface Roughness Ra≤0.15μm Rz≤1.5μm Ra≤0.15μm Rz≤1.5μm
Positioning Hole Tolerance -- ±0.10mm
Bushing Slot Tolerance -- +0.10/-0mm
Warpage Degree ≤3mm/M ≤3mm/M
L/W Size Tolerance ±1mm ±1mm
Yield Strength ≥1175 N/mm² ≥1175 N/mm²
Tensile Strength ≥1400 N/mm² ≥1400 N/mm²
Extensibility ≥5% ≥5%
Hardness HRC 50HRC±2 50HRC±2
Work Temperature ≤400℃ ≤400℃
Parallelism ≤0.03 ≤0.03
Diagonal Deviation 1-2mm 1-2mm
Thermal Conductivity ≥18W/MK at 300℃ ≥18W/MK at 300℃
Average Thermal Expansion Coefficient 10~12 ×10⁻⁶/℃ 10~12 ×10⁻⁶/℃

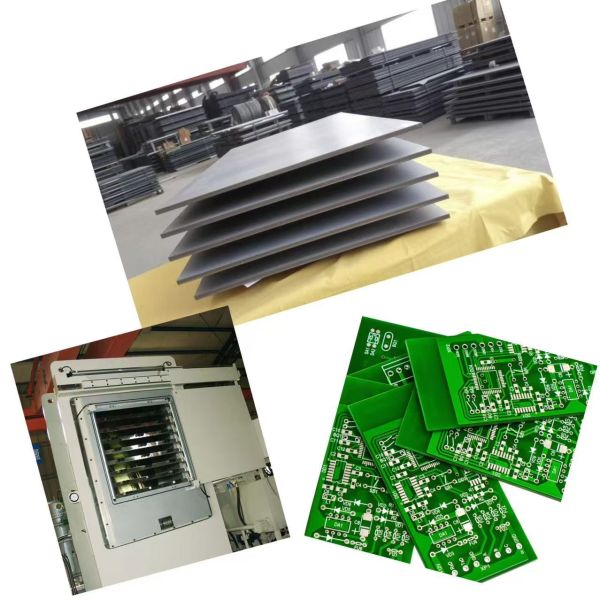

Applications
This product is also known as PCB laminated steel plate, PCB pressed steel plate, PCB partition steel plate, PCB steel press plate, PCB mirror steel plates, or PCB pressing steel plate.
