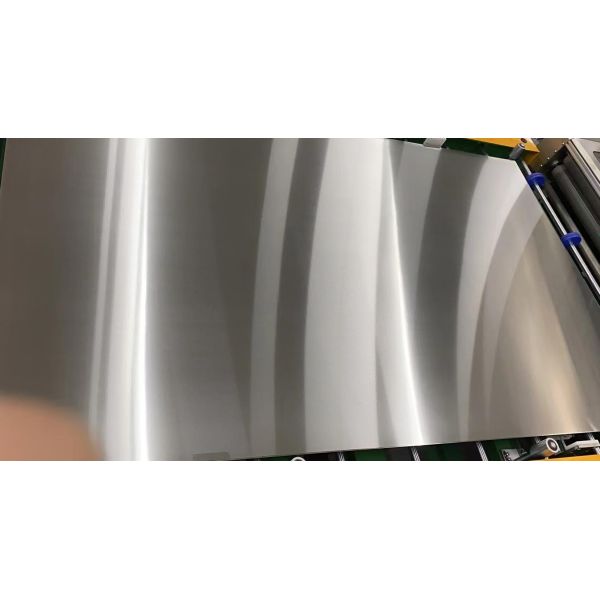

PCB & CCL Dura420 Ultra-Stable High-Precision Lamination Press Plate ESSP-D420 Long Service Life, Corrosion Resistant German Steel Plate for Circuit Board & Copper Clad Laminate Lamination

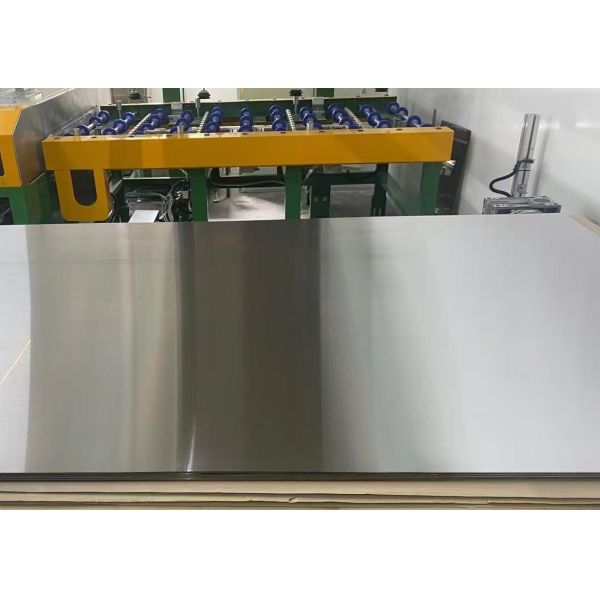

PCB & CCL Dura420 Ultra-Stable High-Precision Lamination Press Plate ESSP-D420 Long Service Life, Corrosion Resistant German Steel Plate for Circuit Board & Copper Clad Laminate Lamination
PCB & CCL Dura420 Ultra-Stable High-Precision Lamination Press Plate ESSP-D420 Long Service Life, Corrosion Resistant German Steel Plate for Circuit Board & Copper Clad Laminate Lamination
PCB & CCL Dura420 Ultra-Stable High-Precision Lamination Press Plate ESSP-D420 Long Service Life, Corrosion Resistant German Steel Plate for Circuit Board & Copper Clad Laminate Lamination
PCB & CCL Dura420 Ultra-Stable High-Precision Lamination Press Plate ESSP-D420 Long Service Life, Corrosion Resistant German Steel Plate for Circuit Board & Copper Clad Laminate Lamination
PCB & CCL Dura420 Ultra-Stable High-Precision Lamination Press Plate ESSP-D420 Long Service Life, Corrosion Resistant German Steel Plate for Circuit Board & Copper Clad Laminate Lamination
Specifications
Model Number :
MKSP-D420
Product Name :
PCB & CCL Dura420 Lamination Press Plate
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Packaging Details :
Strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport
Supply Ability :
10000 Square Meters per Month
Feature :
High hardness and outstanding corrosion resistance
Surface Roughness :
Ra≤0.15μm, Rz≤1.5μm
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Standard Thickness (mm) :
1.0, 1.2, 1.5, 1.6, 1.8, 2.0
Raw Material :
Premium imported German Dura420 stainless steel
Delivery Time :
10-20 working days
Service life :
Ultra-long service life up to 5–8 years
Brand Name :
MK
Description
PCB & CCL Dura420 Ultra-Stable High-Precision Lamination Press Plate
The ESSP-D420 lamination press plate is manufactured with premium imported German Dura420 stainless steel, specifically developed for PCB and CCL mass production lamination processes. This professional-grade plate delivers extremely stable and consistent pressing performance in long-term cyclic operations.
Core Product Advantages
German Dura420 Premium Press Plate - Ultra-low high-temperature warpage, 5-8 years long lifespan, energy-saving & high-precision solution for PCB & CCL lamination
Key Features
  • Premium imported German Dura420 stainless steel with high-purity material properties
  • Ultra-stable and consistent pressing effect with zero abnormal deformation during high-temperature lamination
  • Minimum warpage degree under continuous high-temperature conditions for precise board dimension tolerance
  • Ultra-long service life up to 5-8 years, reducing replacement frequency and material costs
  • Excellent thermal conductivity and stable thermal expansion coefficient for energy savings
  • High hardness and outstanding corrosion resistance for long-term cyclic use
  • Compatible with all types of industrial lamination steel plate washing machines
Technical Specifications
Basic Parameters
Steel Material Imported German Dura420 stainless steel
Standard Thickness 1.0, 1.2, 1.5, 1.6, 1.8, 2.0 mm
Service Life 5-8 years of long-term service life
Standard Sizes
PCB Lamination Press Plate (L × W, mm):
1500×1295, 1300×800, 1295×787, 1295×1613, 1295×1143, 1295×787, 1285×750, 1280×1120, 1280×1070, 1280×970, 1270×1118, 1270×1070, 1143×660, 673×571, 660×508, 24"×28"
CCL Lamination Press Plate (L × W, mm):
1910×1270, 2210×1270, 2220×1270
Performance Parameters
Parameter Dura420 Mass-Lam Plate Dura420 Pin-Lam Plate
Thickness 1.0-2.0mm 1.0-2.0mm
Width ≤1300mm ≤1300mm
Length ≤2410mm ≤2410mm
Thickness Tolerance ±0.10mm ±0.10mm
Surface Roughness Ra≤0.15μm, Rz≤1.5μm Ra≤0.15μm, Rz≤1.5μm
Warpage Degree ≤3mm/M ≤3mm/M
L/W Size Tolerance ±1mm ±1mm
Yield Strength ≥1175 N/mm² ≥1175 N/mm²
Tensile Strength ≥1400 N/mm² ≥1400 N/mm²
Hardness HRC 50HRC±2 50HRC±2
Work Temperature ≤400℃ ≤400℃
Thermal Conductivity ≥25W/MK at 300℃ ≥25W/MK at 300℃
Usage Note: The steel plate becomes slightly thinner after repeated pressing cycles. Stop using when thickness is below 1.3mm; plates between 1.3mm-1.6mm must be free of deformation and warpage to ensure lamination accuracy.
