Mass-Lam Plate And Pin-Lam Plate Printed Circuit Board PCB Lamination Steel Plate MKSP-PCB-400
Mass-Lam Plate And Pin-Lam Plate Printed Circuit Board PCB Lamination Steel Plate MKSP-PCB-400
Mass-Lam Plate And Pin-Lam Plate Printed Circuit Board PCB Lamination Steel Plate MKSP-PCB-400
Mass-Lam Plate And Pin-Lam Plate Printed Circuit Board PCB Lamination Steel Plate MKSP-PCB-400
Mass-Lam Plate And Pin-Lam Plate Printed Circuit Board PCB Lamination Steel Plate MKSP-PCB-400
Mass-Lam Plate And Pin-Lam Plate Printed Circuit Board PCB Lamination Steel Plate MKSP-PCB-400
Specifications
Conventional thickness (mm): :
1.6, 1.5, 1.8, 2.0mm
Model Number :
MKSP-PCB-400
Work temperature :
≤400℃
Place of Origin :
China
Average thermal expansion coefficient (10-6/℃) :
10~12,15-17
MOQ :
50pcs
Conventional dimensions of PCB lamination steel plate (L * W in mm) :
1500*1295/1300*800/1295*787/1295*1613/1295*1143/1295*787/1285*750/1280*1120/1280*1070/1280*970/1270*1118/1270*1070/1143*660/673*571/660*508/24"*28"
Price :
negotiable
Delivery Time :
15days after getting the prepayment
Service life: :
8-10 years (Note: after repeated usage, the steel plate will become thinner. It is not recommended to continue using it after the plate thickness is lowered to less than 1.3mm/the steel plate thickness between 1.3-1.6mm should ensure no deformation or warp
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Packaging Details :
export package
Steel material: :
Japanese NAS630 and NAS301 (NAS630 is mostly chosen or used).
Brand Name :
MK
Description
PCB Lamination Steel Plate MKSP-PCB-400
The MKSP-PCB-400 Printed Circuit Board Lamination Steel Plate is a high-precision, reliable solution specifically designed for PCB lamination processes. Manufactured using premium Japanese steel materials and advanced production techniques, this steel plate delivers exceptional performance in PCB laminators.
Product Overview
Our PCB Lamination Steel Plate has established itself as a mature and dependable component in PCB laminators. We specialize in providing high-precision laminated steel plates and partition steel plate series that meet the stringent requirements of PCB lamination processes.
Printed Circuit Boards serve as crucial components in the electronics industry, providing electrical connections between electronic components through conductive copper foil patterns on insulating materials. Our lamination steel plates support this critical manufacturing process with precision and reliability.
Key Features
  • Manufactured from premium Japanese steel materials (NAS630 & NAS301)
  • Advanced heat treatment technology and grinding manufacturing processes
  • Minimal high-temperature warpage with extended service life
  • Superior thermal conductivity and thermal expansion coefficient
  • High corrosion resistance and exceptional hardness
  • Compatible with various types of lamination steel plate washing machines
Technical Specifications
Steel Material: Japanese NAS630 and NAS301 (NAS630 primarily used)
Conventional Thickness: 1.6mm, 1.5mm, 1.8mm, 2.0mm
Service Life: 8-10 years (not recommended below 1.3mm thickness)
Standard Dimensions (L × W in mm): 1500×1295, 1300×800, 1295×787, 1295×1613, 1295×1143, 1285×750, 1280×1120, 1280×1070, 1280×970, 1270×1118, 1270×1070, 1143×660, 673×571, 660×508, 24"×28"
Performance Parameters
Parameter NAS630 Mass-Lam NAS630 Pin-Lam NAS301 Mass-Lam NAS301 Pin-Lam
Thickness 1.0-2.5mm 1.0-2.5mm 1.0-1.8mm 1.0-1.8mm
Width ≤1300mm ≤1300mm ≤1060mm ≤1060mm
Length ≤2410mm ≤2410mm ≤3150mm ≤3150mm
Thickness Tolerance ±0.05mm ±0.05mm ±0.05mm ±0.05mm
Surface Roughness Ra≤0.15μm Rz≤1.5μm Ra≤0.15μm Rz≤1.5μm Ra≤0.15μm Rz≤1.5μm Ra≤0.15μm Rz≤1.5μm
Warpage Degree ≤3mm/M ≤3mm/M ≤3mm/M ≤3mm/M
L/W Size Tolerance ±1mm ±1mm ±1mm ±1mm
Yield Strength ≥1175 N/mm² ≥1175 N/mm² ≥520 N/mm² ≥520 N/mm²
Tensile Strength ≥1400 N/mm² ≥1400 N/mm² ≥520 N/mm² ≥520 N/mm²
Hardness HRC 50HRC±2 50HRC±2 44HRC±2 44HRC±2
Work Temperature ≤400℃ ≤400℃ ≤400℃ ≤400℃
Thermal Conductivity ≥25W/MK at 300℃ ≥25W/MK at 300℃ ≥18W/MK at 300℃ ≥18W/MK at 300℃
Thermal Expansion Coefficient 10~12 ×10⁻⁶/℃ 10~12 ×10⁻⁶/℃ 15~17 ×10⁻⁶/℃ 15~17 ×10⁻⁶/℃
Applications
Also known as PCB laminated steel plate, PCB pressed steel plate, PCB partition steel plate, PCB mirror steel plates, or PCB pressing steel plate. Our high-precision lamination steel plates are widely used in various PCB laminators including BURKLE, LAUFFER, CEDAL, HELD, DATIAN, WEIDI, and DIPUER systems.

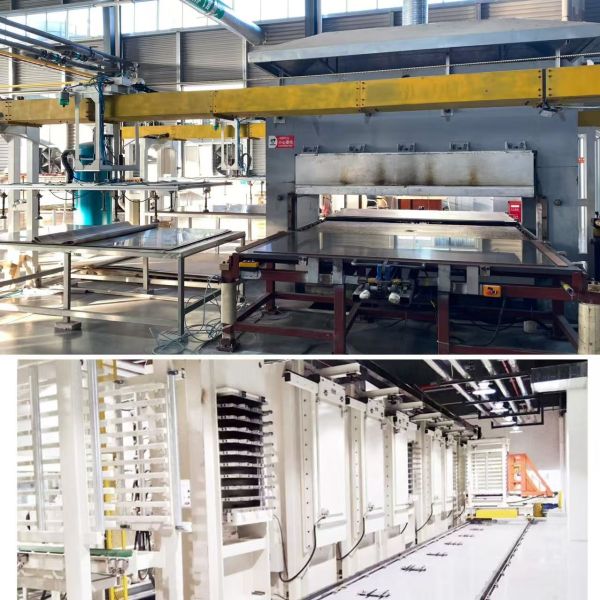

Product Images
Mass-Lam Plate And Pin-Lam Plate Printed Circuit Board PCB Lamination Steel Plate MKSP-PCB-400 Mass-Lam Plate And Pin-Lam Plate Printed Circuit Board PCB Lamination Steel Plate MKSP-PCB-400
