4mm-6.5mm Thick Customized Size Nano High Temperature Resistant Coating CCL Cushion Pad MKCP-CCL-G1
4mm-6.5mm Thick Customized Size Nano High Temperature Resistant Coating CCL Cushion Pad MKCP-CCL-G1
4mm-6.5mm Thick Customized Size Nano High Temperature Resistant Coating CCL Cushion Pad MKCP-CCL-G1
4mm-6.5mm Thick Customized Size Nano High Temperature Resistant Coating CCL Cushion Pad MKCP-CCL-G1
4mm-6.5mm Thick Customized Size Nano High Temperature Resistant Coating CCL Cushion Pad MKCP-CCL-G1
4mm-6.5mm Thick Customized Size Nano High Temperature Resistant Coating CCL Cushion Pad MKCP-CCL-G1
4mm-6.5mm Thick Customized Size Nano High Temperature Resistant Coating CCL Cushion Pad MKCP-CCL-G1
4mm-6.5mm Thick Customized Size Nano High Temperature Resistant Coating CCL Cushion Pad MKCP-CCL-G1
Specifications
High temperature resistance performance: :
≤280℃
Model Number :
MKCP-CCL-G1
Thickness :
4mm-6.5mm
Place of Origin :
China
Normal regular Sizes(in mm) :
2220*1270/2120*1270/1920*1270/1905*1270/1270*1070/1270*1120/1270*800
MOQ :
10pcs
Tensile strength :
≥ 25 MPa
Payment Terms :
L/C,D/A,D/P,Western Union,T/T
Water absorption standard :
< 8% (3-8%)
Delivery Time :
15days after getting the prepayment
Buffer standard: :
≥ 12%
Supply Ability :
10000 pcs per month
Thickness tolerance: :
±0.3mm.
Packaging Details :
export package
Service life: :
600-800 times.
Brand Name :
MK
Description
4mm-6.5mm Thick Customized Size Nano High Temperature Resistant Coating CCL Cushion Pad MKCP-CCL-G1
Product Overview

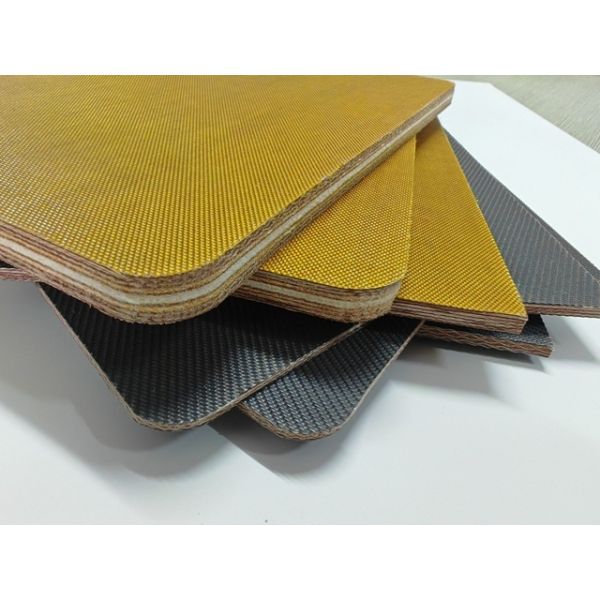

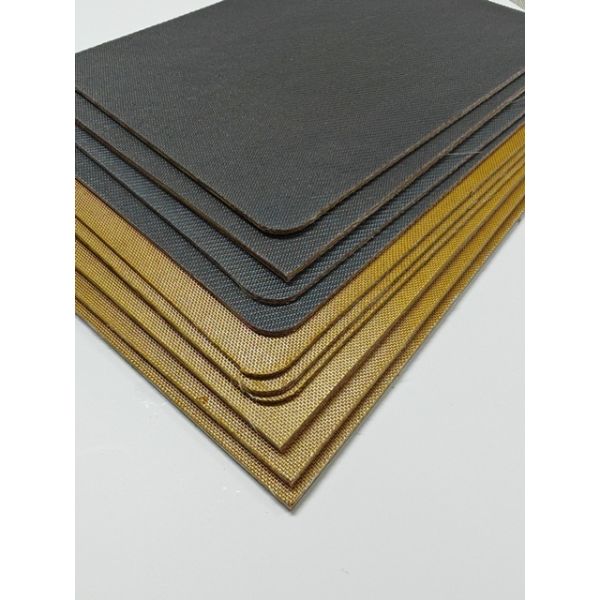

The CCL cushion pad is a red rigid cushion solution that effectively replaces hot press kraft paper, enhancing dimensional safety and stability. With industry standard tolerance of +/-300ppm (achieving +/-250ppm with this pad), it delivers excellent lamination performance and high stability, significantly improving yield and efficiency in copper clad laminate production processes.
Technical Specifications
Parameter Specification
Service Life 600-800 times
High Temperature Resistance ≤280℃
Thickness 4mm-6.5mm
Thickness Tolerance ±0.3mm
Standard Sizes (L*W in mm) 2220*1270/2120*1270/1920*1270/1905*1270/1270*1070/1270*1120/1270*800
Size Tolerance (Length or Width) ±2mm
Tensile Strength ≥ 25 MPa
Buffer Standard ≥ 12%
Water Absorption Standard < 8% (3-8%)
Key Features
  • Extended service life of 600-800 press cycles, significantly reducing CCL production costs
  • Superior performance in flatness, wear resistance, size increase ratio, and thickness variation compared to hot press kraft paper
  • Excellent high temperature resistance, operating continuously at up to 280℃ without carbonization or brittleness
  • Outstanding buffering effect and thermal conductivity with stable compression and expansion coefficients
  • Good tear resistance with flame retardant, non-toxic, odorless, dust-free properties and excellent breathability
  • Competitive pricing with shorter delivery times and strict quality control
Applications

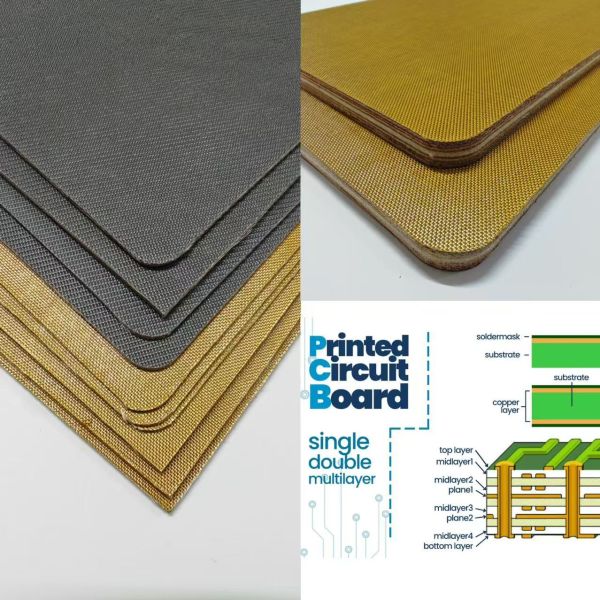

Also known as CCL lamination cushion pad, cushion mat, buffering pad, or hot press cushion pad, this product is essential for completing copper clad laminate lamination processes. Suitable for physical buffering operations in middle layers and manual operations for multiple sheet replacements, it can replace multiple sheets of hot press kraft paper with a single pad and is compatible with automated CCL laminating operations.
Product Structure
  • Nano high temperature resistant coating
  • Fiberglass cloth
  • High molecular weight polymer
  • Tensile tear layer
  • Polymer aggregates
  • Fiberglass cloth
4mm-6.5mm Thick Customized Size Nano High Temperature Resistant Coating CCL Cushion Pad MKCP-CCL-G1 4mm-6.5mm Thick Customized Size Nano High Temperature Resistant Coating CCL Cushion Pad MKCP-CCL-G1
