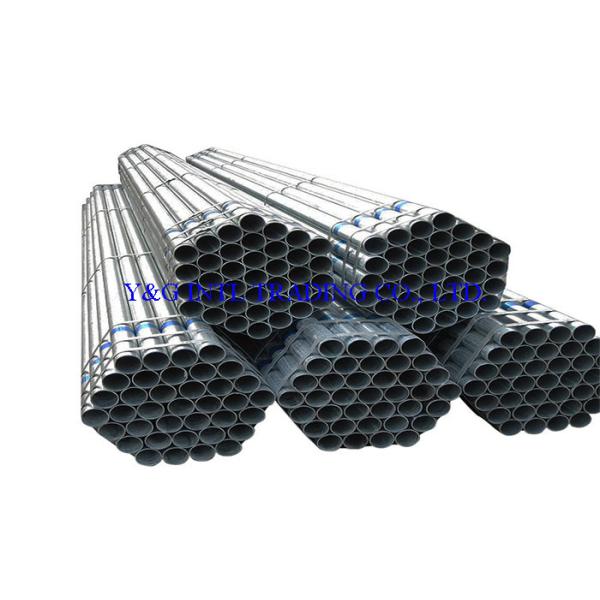

Construction Building Materials OD12.7mm Pre Galvanized Steel Pipe Grades Gas Line
Construction Building Materials OD12.7mm Pre Galvanized Steel Pipe Grades Gas Line
Construction Building Materials OD12.7mm Pre Galvanized Steel Pipe Grades Gas Line
Construction Building Materials OD12.7mm Pre Galvanized Steel Pipe Grades Gas Line
Construction Building Materials OD12.7mm Pre Galvanized Steel Pipe Grades Gas Line
Construction Building Materials OD12.7mm Pre Galvanized Steel Pipe Grades Gas Line
Specifications
Brand Name :
Y & G
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
8000MT/Month
Delivery Time :
25-35 days
Packaging Details :
Exporting package/wooden box / per customers’ requirement
Place of Origin :
China
OD :
12.7 - 609 mm
Type :
Welded Steel Pipe
Section Shape :
Round
Thickness :
0.6 - 36 mm
Tolerance :
±10%
Description

pre galvanized construction building materials galvanized steel pipe grades gas line

Standard: ASTM A53. ASTM A106. EN10255, EN10219. EN10210. EN39, BS1387. ASTM A5OO, ASTM A36. API 5L, ISO 65, JIS G3444, JIS3452,DIN 3444, DIN2440, ANSI C80.1, AS 1074
Grades: A53. A106 GrA ,Gr.B. Gr.C S235, S275. S355. A36, SS400, Q195. Q235, Q345
Type Zinc Coating on Steel Pipes & Tubes:
Hot Dip Galvanized Steel Pipes (zinc coating: 180 g/㎡-600 g/㎡)

Pre Galvanized Steel Pipes (zinc coating: 80g/㎡- 275g/㎡)

NPS IN OD MM Sch10 Sch20 Sch30 STD Sch40 Sch60 Sch80 XS Sch100 Sch120 Sch140
1/8 10.29 - - - 1.73 1.73 - 2.41 2.41 - - -
1/4 13.72 - - - 1.73 1.73 - 3.02 3.02 - - -
3/8 17.14 - - - 2.31 2.31 - 3.2 3.2 - - -
1/2 21.34 - - - 2.77 2.77 - 3.73 3.73 - - -
3/4 26.67 - - - 2.87 2.87 - 3.91 3.91 - - -
1 33.4 - - - 3.38 3.38 - 4.55 4.55 - - -
1 1/4 42.16 - - - 3.56 3.56 - 4.85 4.85 - - -
1 1/2 48.26 - - - 3.68 3.68 - 5.08 5.08 - - -
2 60.32 - - - 3.91 3.91 - 5.54 5.54 - - -
2 1/2 73.02 - - - 5.16 5.16 - 7.01 7.01 - - -
3 88.9 - - - 5.49 5.49 - 7.62 7.62 - - -
3 1/2 101.6 - - - 5.74 5.74 - 8.08 8.08 - - -
4 114.3 - - - 6.02 6.02 - 8.56 8.56 - 11.12 -
5 141.3 - - - 6.55 6.55 - 9.53 9.53 - 12.7 -
6 168.3 - - - 7.11 7.11 - 10.97 10.97 - 14.27 -
8 219.1 - 6.35 7.04 8.18 8.18 10.31 12.7 12.7 15.09 18.26 20.62
10 273.1 - 6.35 7.8 9.27 9.27 12.7 12.7 12.7 18.26 21.44 25.4
12 323.9 - 6.35 8.38 9.52 10.3 14.27 12.7 12.7 21.44 25.4 28.58
14 355.6 6.35 7.92 9.52 9.52 11.13 15.09 12.7 12.7 23.83 27.79 31.75
16 406.4 6.35 7.92 9.52 9.52 12.7 16.66 12.7 12.7 26.19 30.96 36.52
18 457.2 6.35 7.92 11.12 9.52 14.27 19.05 12.7 12.7 29.36 34.92 39.47
20 508 6.35 7.92 12.7 9.52 15.09 20.62 12.7 12.7 32.54 38.1 44.45
22 558.8 6.35 7.92 12.7 9.52 - 22.22 12.7 12.7 34.92 41.28 47.62
24 609.6 6.35 7.92 14.27 9.52 17.48 24.61 12.7 12.7 38.89 46.02 52.37

Outside diameter of Galvanized Steel Pipes & Tubes:

Round Pipe: 12.7 mm - 609 mm, 1 /2" and above
Square Pipe: 15 mm x 15 mm - 600 mm x 600 mm
Rectangular pipe: 10 mm x 20 mm -400 mm x 600 mm
Wall Thickness of Steel Pipes:
Round pipe: 0.6mm - 36mm
Square pipe: 0.6mm – 20mm
Rectangular pipe: 0.6mn -20mm
Length: 2m-5.8m/6m/12m ( as per customer requirements)
Test: Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength. Yield strength, Elongation).
Technical Properties (Flattening Test, Flaring Test. Bending Test, Hardness Test. Blow Test, Impact Test etc). Visual Inspection
