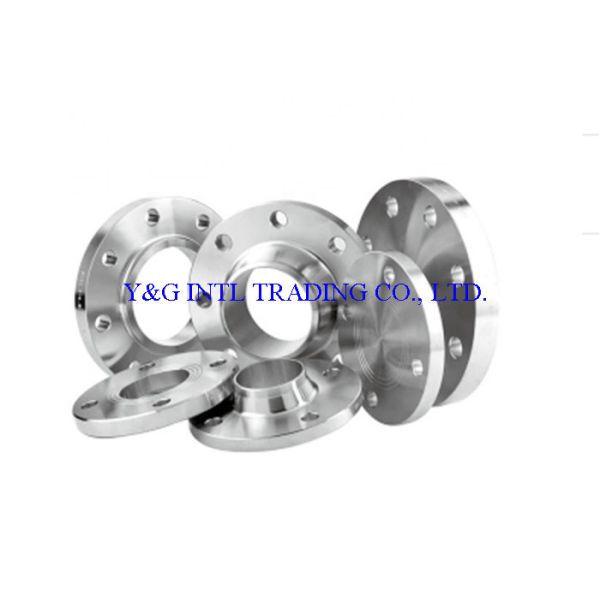

Ansi B16.5 Slip On Pipe Flanges Stainless Steel Raised Face Class 150 Lb
Ansi B16.5 Slip On Pipe Flanges Stainless Steel Raised Face Class 150 Lb
Ansi B16.5 Slip On Pipe Flanges Stainless Steel Raised Face Class 150 Lb
Ansi B16.5 Slip On Pipe Flanges Stainless Steel Raised Face Class 150 Lb
Ansi B16.5 Slip On Pipe Flanges Stainless Steel Raised Face Class 150 Lb
Ansi B16.5 Slip On Pipe Flanges Stainless Steel Raised Face Class 150 Lb
Ansi B16.5 Slip On Pipe Flanges Stainless Steel Raised Face Class 150 Lb
Ansi B16.5 Slip On Pipe Flanges Stainless Steel Raised Face Class 150 Lb
Ansi B16.5 Slip On Pipe Flanges Stainless Steel Raised Face Class 150 Lb
Ansi B16.5 Slip On Pipe Flanges Stainless Steel Raised Face Class 150 Lb
Specifications
Brand Name :
SOLID
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
8000MT/Month
Delivery Time :
25-35 days
Packaging Details :
Exporting package/wooden box / per customers’ requirement
Material :
stainless steel, carbon steel
Standard :
ANSI, DIN, JIS, ASME, ANSI, API, DIN, BS, EN, JIS, JPI
shape :
Round
Size :
DN10 to DN2000
Pressure :
Class150/300/600/9001500/2500
Technics :
Forged Casting
Packing :
Wooden Case
Description

ANSI b16.5 Stainless Steel Raised Face class 150 lb Slip On Pipe Flanges

Product Description

Size range: 1/2" to 80" DN10 to DN2000
Design: welding neck, slip on, blind, socket welding, threaded, lap-joint
Pressure: PN2.5,PN6,PN10,PN16,PN25,PN40, class150, class300, class600, class900, class1500, class2500.
Wall thickness for welding neck flange: STD, SCH40, SCH80, SCH160. SCHXXS
Material: carbon steel , stainless steel ,alloy steel
Coating: black paint, yellow transparent paint, cold and hot dip galvanized
Size 1/2"-80"
Type

Weld Neck, Slip-On, Blind, Socket Weld, Lap Joint, Threaded, Orifice Flange,

Swivel Flange, Spectacle Blind,Etc.
Standard ANSI, ASME ,MSS, API, DIN, JIS, BS. AWWA and GB
Pressure ANSI 150LBS-2500LBS,
DIN PN6-PN100
BS PN0.25-PN25 PN2.0-PN42.0
ISO7005-1,PN2.5-PN40
Materials ASTM:SA105N/A105
Low Temperature Carbon Steel: ASTM SA350 LF2
High Strength Steel: ASTM SA694 F42/46/52/56/60/65
ASTM A182 F304/304L/316/316L
ASTM A182 F1/F5/F9/F11/F22/F91/Etc.
ASTM A182 F51/F53/F55/F60
Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/800
90/10,70/30

Materials shall be identified in the following ways:
(a) Cast flanges shall bemarkedwith theASTMspeci-fication, 1 grade identification symbol (letters and num-bers), and the melt number or melt identification.
(b) Plate flanges and forged flanges shall be marked with the ASTM specification 1 number and grade identi-fication symbol.
(c) Amanufacturermay supplement thesemandatory material markings with his trade designation for the material grade, but confusion of symbols shall be avoided.
(d) For flanges manufactured from material that meets the requirements for more than one specification or gradeof a specification listed inTable 1, seepara. 4.2.8.
