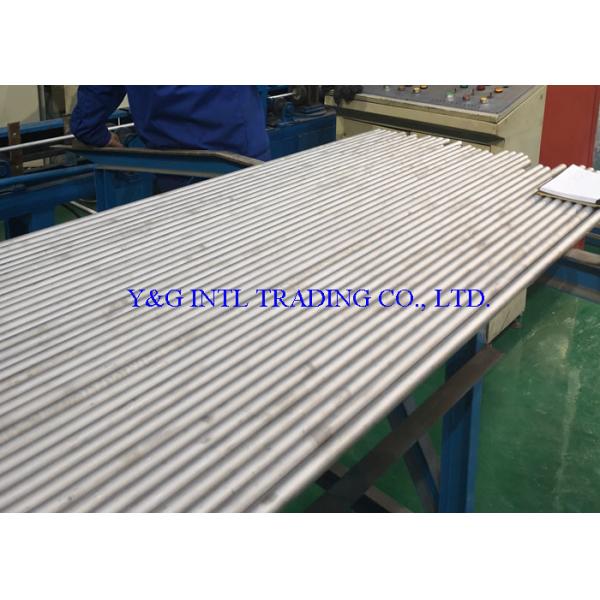

Aviation Standard Round Steel Tubing Titanium Alloy Pipes ASTM B337 B338 Grade1 Gr2 Gr5
Aviation Standard Round Steel Tubing Titanium Alloy Pipes ASTM B337 B338 Grade1 Gr2 Gr5
Aviation Standard Round Steel Tubing Titanium Alloy Pipes ASTM B337 B338 Grade1 Gr2 Gr5
Aviation Standard Round Steel Tubing Titanium Alloy Pipes ASTM B337 B338 Grade1 Gr2 Gr5
Aviation Standard Round Steel Tubing Titanium Alloy Pipes ASTM B337 B338 Grade1 Gr2 Gr5
Aviation Standard Round Steel Tubing Titanium Alloy Pipes ASTM B337 B338 Grade1 Gr2 Gr5
Aviation Standard Round Steel Tubing Titanium Alloy Pipes ASTM B337 B338 Grade1 Gr2 Gr5
Aviation Standard Round Steel Tubing Titanium Alloy Pipes ASTM B337 B338 Grade1 Gr2 Gr5
Aviation Standard Round Steel Tubing Titanium Alloy Pipes ASTM B337 B338 Grade1 Gr2 Gr5
Aviation Standard Round Steel Tubing Titanium Alloy Pipes ASTM B337 B338 Grade1 Gr2 Gr5
Specifications
Brand Name :
Y & G
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
8000MT/Month
Delivery Time :
25-35 days
Packaging Details :
Exporting package/wooden box / per customers’ requirement
Standard :
ASTM B337 B338
Material :
Pure Titanium and Titanium Alloy
Grade :
GR1 / GR2 / GR5 / GR7 / GR9 / GR12
Outer Diameter :
3-160mm
Thickness :
0.5-50mm
Technique :
Seamless
Application :
Medical Aviation Chemical Industry
Description

Aviation Standard ASTM B337 B338 Grade1 gr2 gr5 round Titanium alloy pipes

Supply Ability
Supply Ability:
50000 Kilogram/Kilograms per Month
Packaging & Delivery
Packaging Details
Wooden case for export
Port:Shenzhen and China's major ports
Product Description
Commodity Pure Titanium & Titanium Alloy Tube /Pipe/Tubing
Tube Shape Round
Square
Material Pure Titanium / Titanium alloy
Standard ASTM B337 ASTM B338 ASTM B861 ASTM B862, and others.
Type Seamless
Welded
Outer Diameter 3-160mm or as customized
Wall Thickness 0.5-50mm or as customized
Length Max 6000mm
Grade Grade 1: Pure Titanium, relatively low strength and high ductility.
Grade 2:The pure titanium most used. The best combination of strength,ductility and weldability.
Grade 3:High strength Titanium, used for Matrix-plates in shell and tube heat exchangers.
Grade 5:The most manufactured titanium alloy. Exceedingly high strength. high heat resistance.
Grade 7: Superior corrosion resistance in reducing and oxidizing environments.
Grade 9: Very high strength and corrosion resistance.
Grade 12: Better heat resistance than pure Titanium. Applications as for Grade 7 and Grade 11.
Grade 23: Titanium-6Aluminum- 4Vanadium ELI Alloy for surgical implant application.
Application Metallurgy, electronics, medical, chemical, petroleum, aerospace, and others.
Seven Characters of Titanium
1. Low density andHigh Strength

Titanium strength/density ratio is better than other metals, components with high strength,

good rigity, less weight can be made out of titanium. Titanium is applied for aircrafts engines,

frames, skins,fastnersand landing gears.
2. Anti-Corrosion

Compared with stainless steel, titanium alloy's corrosion is better in moisture laden air, seawater,

titanium greatly resists spot corrosion, acid corrosion and stress corrosion. Titanium resists

corrosions to alkali, chloride,chlorinated organic sunstances, sulphuric acid, nitric acid.
3. High-Temperature Resistance

Titanium application temperature's higher than aluminium alloys. Titanium can work in

450-500℃ for long time. Titanium alloy stil prossesses high strength when working in

150-500℃. Titanium working temperature can be reached to 500℃
4. Low Temperature Resistance

Titanium alloys still owns its mechanical properties when working in low or super low

temperature conditions.Titanium alloys with low-temperature resisitance and extra

low interstitial still possess good ductility, therefore, titanium alloy is sort of good

low temperature structural material.
5. Good heat transfer performance

Thermal conductivity of titanium is lower than carbon steel or copper, but titanium owns

very good corrosion resistance, therefore, titanium thickness can be greatly reduced,

also the heat exchange mode is dropwise condensation between titanium and steam.

This kind of mode reduces heat transfer resistance, no foulingon titanium surface, which

makes titanium thermal conductivity better.
6. Non-toxic and non-magnetic

Titanium is non-magnetic metal, it can't be magnetized in large magnetic field, also titanium

is toxic-free and compatibility with blood, there, titanium is applied in medical field.
7.Low modulus of elasticity The elastic modulus of titanium at room temperature is 106.4 GMpa, which is 57% of that of steel.
