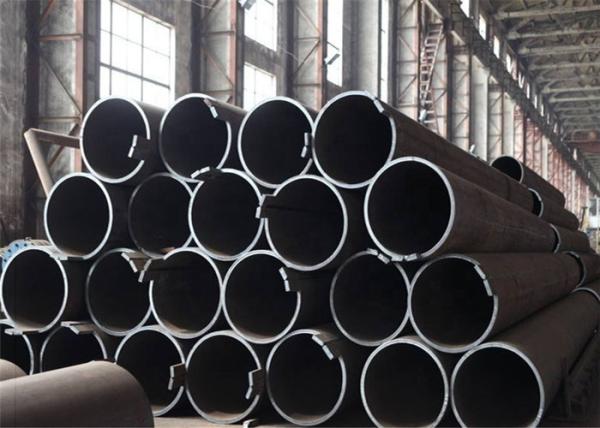

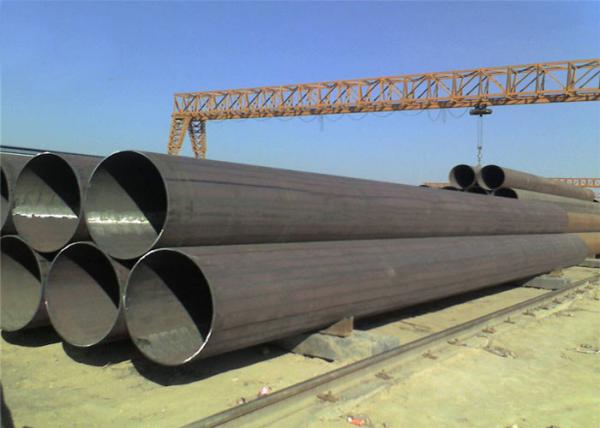

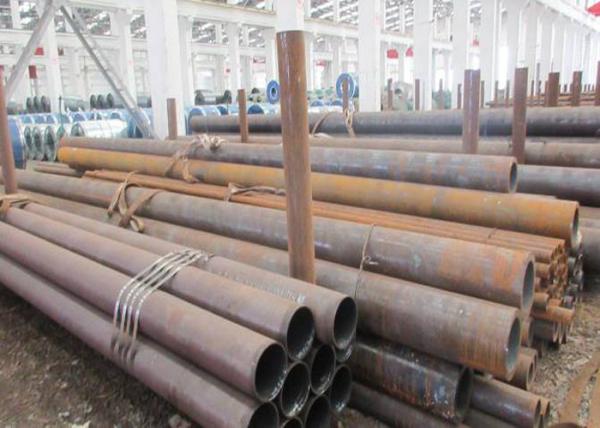

ASTM A519 1010 1020 High Precision Mechanical Tubing / Seamless Steel Pipe
ASTM A519 1010 1020 High Precision Mechanical Tubing / Seamless Steel Pipe
ASTM A519 1010 1020 High Precision Mechanical Tubing / Seamless Steel Pipe
ASTM A519 1010 1020 High Precision Mechanical Tubing / Seamless Steel Pipe
ASTM A519 1010 1020 High Precision Mechanical Tubing / Seamless Steel Pipe
ASTM A519 1010 1020 High Precision Mechanical Tubing / Seamless Steel Pipe
ASTM A519 1010 1020 High Precision Mechanical Tubing / Seamless Steel Pipe
ASTM A519 1010 1020 High Precision Mechanical Tubing / Seamless Steel Pipe
ASTM A519 1010 1020 High Precision Mechanical Tubing / Seamless Steel Pipe
ASTM A519 1010 1020 High Precision Mechanical Tubing / Seamless Steel Pipe
Specifications
Brand Name :
Y & G
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
8000MT/Month
Delivery Time :
25-35 days
Packaging Details :
Exporting package/wooden box / per customers’ requirement
Material :
1010,1020,1030,1035,1040...
Standard :
A519
Type :
Seamless
OD :
0.5inch~12 3/4inch
Wall Thickness :
SCH10,SCH20,SCH30
Application :
Mechanical tubing
Surface Treatment :
Varnish, Oil-dip, Passivation, Phosphating, Shot Blasting
Delivery Status :
Annealed, normalized, normalized+Tempered, etc
Description

Carbon Steel Tube ASTM A519 1010 1020 High Precision Tube Mechanical Tubing Seamless Steel Pipe

The ASTM A519 steel tube specification covers both hot-finished and cold-finished mechanical tubing in sizes up to 12-3/4” O.D. A519 is available in round, square, and rectangular profiles, and in special sections.

Main steel grades: 1010,1020,1030,1035,1040...

Application: A519 seamless tubing is commonly used in applications requiring machining, heat treating, close tolerances, smooth finishes, and/or definite physical properties.

Chemical Composition & Mechanical Properties:

Grade Designation Chemical Composition Limits, %
Carbon Manganese Phosphorus, max Sulfur, max
1010 0.08-0.13 0.30-0.60 0.050
1020 0.18-0.23 0.30-0.60 0.040 0.050
1030 0.28-0.34 0.60-0.90 0.040 0.050
1035 0.32-0.38 0.60-0.90 0.040 0.050
1040 0.37-0.44 0.60-0.90 0.040 0.050
1045 0.43-0.50 0.60-0.90 0.040 0.050
1050 0.48-0.55 0.60-0.90 0.040 0.050

Grade Condition Tensile Point (Mpa) Yield Point (Mpa) Elongation
1020 CW ≥ 414 ≥ 483 ≥ 5%
SR ≥ 345 ≥ 448 ≥ 10%
A ≥ 193 ≥ 331 ≥ 30%
N ≥ 234 ≥ 379 ≥ 22%
1025 CW ≥ 448 ≥ 517 ≥ 5%
SR ≥ 379 ≥ 483 ≥ 8%
A ≥ 207 ≥ 365 ≥ 25%
N ≥ 248 ≥ 379 ≥ 22%


Mark: As required.

Inspection and Test: chemical composition test, mechanical properties test(tensile, yield, elongation), process properties test(flatting, flaring, bending, hardness, impact, etc.), appearance and size test, non-destructive inspection test, hydrostastic test.

Delivery status: Annealed, normalized, normalized+Tempered, etc.

End: plain end, beveled end, threaded

End protection: plastic caps

Outside coating: black painting, anti-corrosion oil,galvanized finish, finish as per customer requirements.

Packing: Exporting package/wooden box /as requirement.
