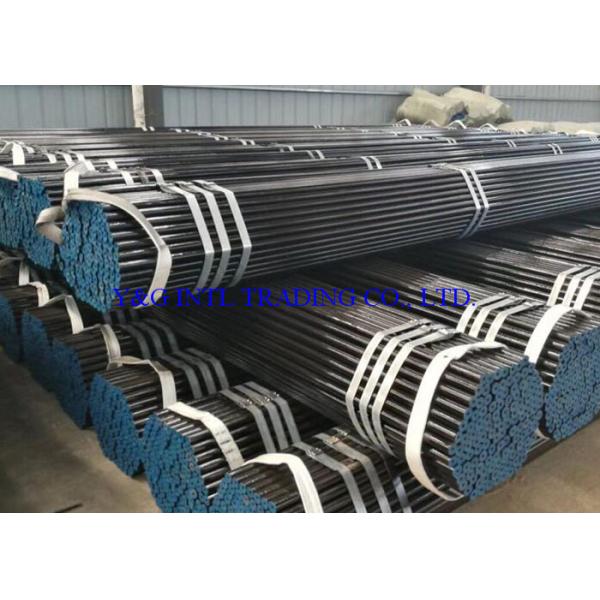

A213 SA213 Seamless Carbon Steel Tubing / T11 Heat Exchanger And Condenser Tube
A213 SA213 Seamless Carbon Steel Tubing / T11 Heat Exchanger And Condenser Tube
A213 SA213 Seamless Carbon Steel Tubing / T11 Heat Exchanger And Condenser Tube
A213 SA213 Seamless Carbon Steel Tubing / T11 Heat Exchanger And Condenser Tube
A213 SA213 Seamless Carbon Steel Tubing / T11 Heat Exchanger And Condenser Tube
A213 SA213 Seamless Carbon Steel Tubing / T11 Heat Exchanger And Condenser Tube
A213 SA213 Seamless Carbon Steel Tubing / T11 Heat Exchanger And Condenser Tube
A213 SA213 Seamless Carbon Steel Tubing / T11 Heat Exchanger And Condenser Tube
A213 SA213 Seamless Carbon Steel Tubing / T11 Heat Exchanger And Condenser Tube
A213 SA213 Seamless Carbon Steel Tubing / T11 Heat Exchanger And Condenser Tube
Specifications
Brand Name :
Y & G
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
8000MT/Month
Delivery Time :
25-35 days
Packaging Details :
Exporting package/wooden box / per customers’ requirement
Material :
T5,T9,T11,T12,T22,T91
Standard :
A213/SA213
Type :
Seamless
OD :
19mm~88.9mm
Wall Thickness :
2mm~10mm
Application :
Boiler and superheater
Surface Treatment :
Varnish, Oil-dip, Passivation, Phosphating, Shot Blasting
Delivery Status :
Annealed, normalized, normalized+Tempered, etc
Description

A213 / SA213 Seamless Carbon Steel Tubing , T11 Heat Exchanger And Condenser Tubes

Alloy Steel ASTM A213 T11 Tubes are Ferritic alloy steel tubes that are available in multiple grades. Elements such as manganese, chromium, molybdenum, carbon, and sulfur are considered to form these grades of tubes. These tubes are generally convenient for flanging, bending and for fusion welding. These tubes may be cold drawn or hot finished throughout the finishing heat treatment procedure. The creep resistance of the tube is increased due to molybdenum content. These tubes possess superior ductility, hardness and tensile strength in tough climatic circumstances. Evermore these have great sturdiness, durability, and resistance consistency.

Product Standard: GB/T8163, DIN17175,SAME SA106/SA179/SA210 A1,C/SA213/SA335
Main steel grades: T5,T9,T11,T12,T22,T91

Application: For boiler and superheater, conveying water, oil, gas and other common fluids

Chemical Requirements & Mechanical Properties:

Standard Grade Chemical Composition Mechanical Properties
C Mn Si Mo Cr P.S TSMpa YSMpa
ASTM A213/ASME SA213 T11 0.05-0.15 0.3-0.60 0.5-1.0 1.0-1.5 0.5-1.0 ≤0.025 ≥415 ≥205
T12 0.05-0.15 0.3-0.61 ≤0.50 0.44-0.65 0.8-1.25 ≤0.025 ≥415 ≥220
T22 0.05-0.15 0.3-0.60 ≤0.50 0.87-1.13 1.9-2.6 ≤0.025 ≥415 ≥205

Delivery status: Annealed, normalized, normalized+Tempered, etc.
Inspection and Test: chemical composition test, mechanical properties test(tensile, yield, elongation), process properties test(flatting, flaring, bending, hardness, impact, etc.), appearance and size test, non-destructive inspection test, hydrostastic test.

Surface treatment: oil impregnation, paint, passivation, phosphating, shot blasting etc.

Packing: Exporting package/wooden box /as requirement.ASTM A213 T11 alloy pipes have to arrive safely, quickly and without damages at their destination in any part of the world. Packing is also an essential part of quality assurance.

Mark: As required.
