Carbon Steel / SS Stud Finned Tube 10-45mm Height For Heat Exchanger
Carbon Steel / SS Stud Finned Tube 10-45mm Height For Heat Exchanger
Carbon Steel / SS Stud Finned Tube 10-45mm Height For Heat Exchanger
Carbon Steel / SS Stud Finned Tube 10-45mm Height For Heat Exchanger
Carbon Steel / SS Stud Finned Tube 10-45mm Height For Heat Exchanger
Carbon Steel / SS Stud Finned Tube 10-45mm Height For Heat Exchanger
Carbon Steel / SS Stud Finned Tube 10-45mm Height For Heat Exchanger
Carbon Steel / SS Stud Finned Tube 10-45mm Height For Heat Exchanger
Carbon Steel / SS Stud Finned Tube 10-45mm Height For Heat Exchanger
Carbon Steel / SS Stud Finned Tube 10-45mm Height For Heat Exchanger
Specifications
Brand Name :
Y&G
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
8000MT per month
Delivery Time :
25~35days

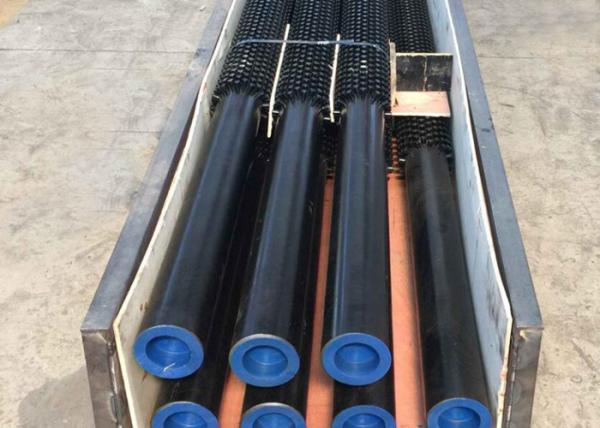

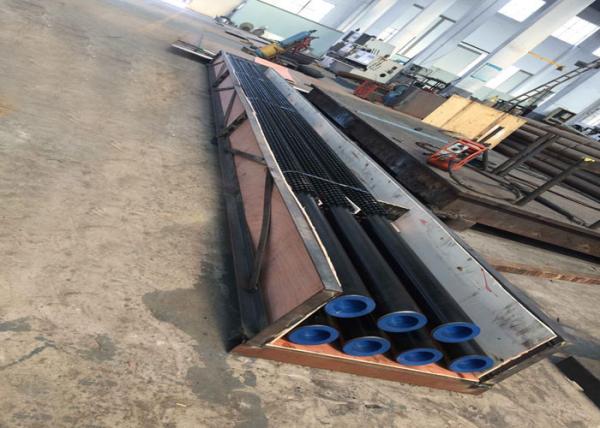

Packaging Details :
Strong Plywood Case With Steel Frame
Material :
SS, CS，Alloy steel ...
Type :
Stud Fin Tubes
Bare tube OD :
25-63mm
Type of Studs :
Cylindrical or elliptical
Stud Height :
10-45mm
Stud OD :
6-16mm
Packing :
Strong Plywood Case With Steel Frame
Description

Stud Finned Tube Stainless Steel Fin Tube For Heat Exchanger

Stud Fin Tube equipment by resistance welding the welding, the welding process is controlled by PLC program, and the indexing feed motor uses brake motor and the man-machine interface can set the stud number. Stud Fin Tube equipment by resistance welding the welding, the welding process is controlled by PLC program, and the indexing feed motor uses brake motor and the man-machine interface can set the stud number, indexing parameters and compensation coefficient, set according to technical requirements to ensure product quality and accuracy.

Surface Protection:

Oil dip, black coating or varnish.

Type of Studs:

Cylindrical or elliptical

Features: Indexing parameters and compensation coefficient, set according to technical requirements to ensure product quality and accuracy. Petrochemical industry application stud fin tube heating furnace convection chamber, can improve the heat transfer.

Size and Materials:

TYPE NAME BARE TUBE
MATERIAL		 FIN TUBE
MATERIAL		 BARE TUBE
DIAMETER(MM)		 FIN SPECIFICATION(MM)
FIN
PITCH		 FIN
HEIGHT		 FIN
THICK
WELDING STUDED FIN TUBE CARBON STEEL,ALLOY,STAINLESS STEEL CARBON STEEL,ALLOY,STAINLESS STEEL 25-219 8-30 5-35 θ5-20

Items General Materials Popular ASTM /ASME Materials
Core Tube Material

Carbon Steel

Alloy Steel

Heat Resistant Steel,

Stainless Steel

1. Carbon Steel: A106 Gr. B

2. Stainless Steel: TP304/304L,TP316/TP316L, TP347

3. Alloy Steel: P5,T5,P9,T9,T11,T22

Studs

Material

Carbon Steel

Stainless Steel

1. Carbon Steel

2. Stainless Steel:

TP409/410,TP304/304L,TP316/TP316L, TP321/TP321L

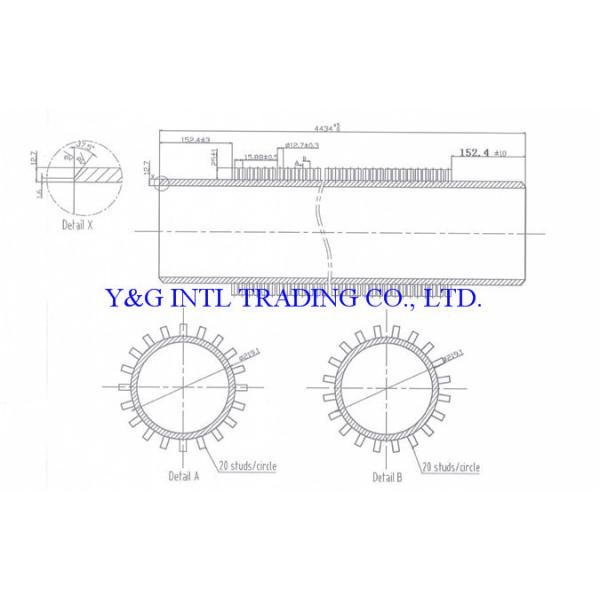

One of Reference Drawing:

Carbon Steel / SS Stud Finned Tube 10-45mm Height For Heat Exchanger

Application:

1.Furnace

2.Chemical

3.Petrochemical industry

4.Power station etc.

Carbon Steel / SS Stud Finned Tube 10-45mm Height For Heat Exchanger
