Specifications
Brand Name :
Y&G
MOQ :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
8000MT per month
Delivery Time :
25~35days

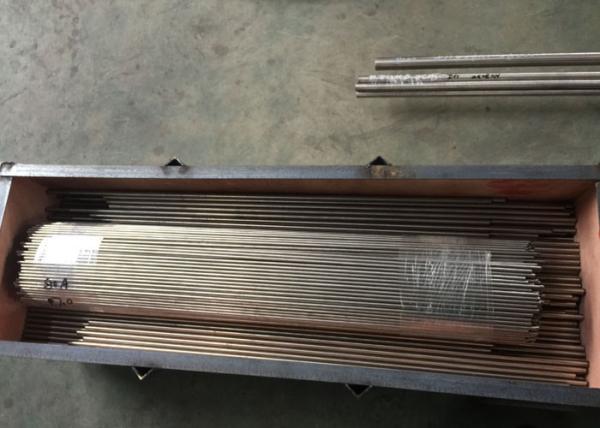

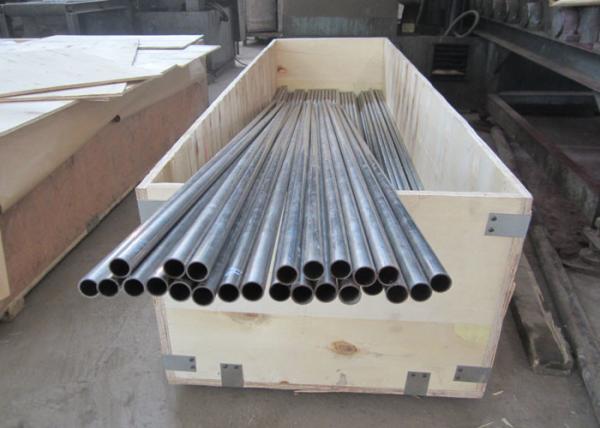

Packaging Details :
Wooden cases, weave strips,as requirement.
Price :
Negotiable
Material :
INCOLOY 800 / 800H / 800HT
Standard :
ASTM B407,B829
Type :
Seamless
Application :
Heat exchangers
OD :
6-500mm or customized
Wall thickness :
0.7-3mm or customized
Packing :
Exporting package/wooden box /as requirement.
Description

INCOLOY 800 / 800H / 800HT UNS N08800 / N08810 / N08811 Nickel Alloy Tube Chemical and Petrochemical Process Piping

Features: Incoloy 800 has good rupture and creep strength and excellent resistance to oxidation, carburization and sulfidation at temperatures up to 816℃. It also resists general corrosion by many aqueous media. For Applications requiring higher stress rupture and creep properties, especially at temperatures above 816℃, Incoloy 800H and 800HT are recommended. Incoloy 800 is readily formed, welded and machined.

Chemical Composition:

% Fe Ni Cr C Mn Si S Cu Al Ti
min 39.5 30.0 19.0 0.15 0.15
max 35.0 23.0 0.10 1.50 1.00 0.015 0.75 0.60 0.60

Product Types and Standards:

Form ASTM
Rod and bar B 408
Plate, sheet and strip A240, A480,B 409, B906
Seamless pipe and tube B 407, B829
Welded pipe B 514, B 775
Welded tube B 515, B 751
Welding fitting B 366
Forging B 564


Physical Properties:

Density 7.94 g/cm3
Melting range 1357-1385 ℃

Applications:Chemical and petrochemical process piping, heat exchangers, furnace components, carburizing equipment, heating-element sheathing, and nuclear power steam-generator tubing.

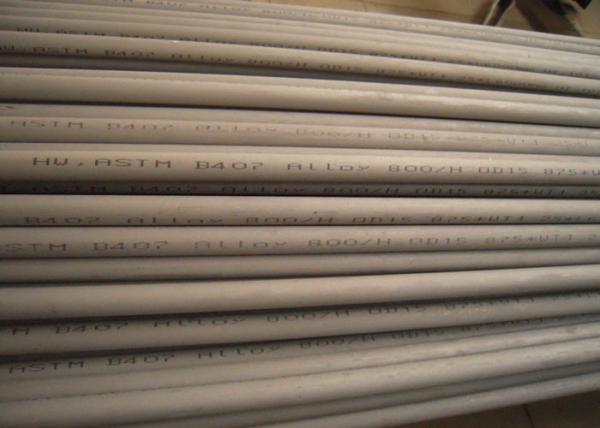

Mark: As required.
