Specifications
Brand Name :
Y&G
MOQ :
Negotiation
Price :
Negotiable
Supply Ability :
2000t per month
Delivery Time :
30days
Packaging Details :
In pallets, wooden cases or weave strips as required.
Material :
Stainless steel ,carbon steel
Dimensions :
Customzied
Color :
Metal
Type :
Structured Packing
Usage :
Desulfurization
Application :
Desulfurize tower packing
Description

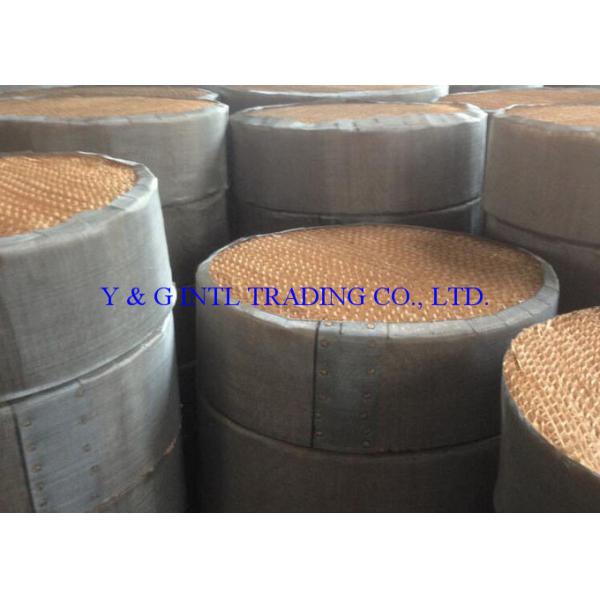

Metal Wire Mesh Structured Packing Column Without Channeling Of Liquid

Metal Wire Mesh structured columns packing consist of proprietary designed metal wire mesh with corrugated sheets which are aligned and placed vertically. The wire structures slopes are reversed in other sheets stacked with alternating 90 degree orientation of each layer resulting in inclined flow passages and a relatively high surface area. This allow thin liquid films to be continuously spread across the tower as liquid flows through the packing. Capillary action and high surface areas result in maximum exposure to high mass transfer efficiency.

Materials: Stainless Steel 304,304L, 316, 316L, other materials including Carbon steel, Aluminium, Copper bronze etc, further materials available on request.

Technical data:

TYPE

Peak height

mm

 Surface Area
(m2/m3)		 theoretical plate number 1/m Void (%)

(Pressure Drop)

Mpa/m

Dry packing
m/s

(kg/m3)0.5
GP-1 12 250 2.5-3.0 97 1.05×10-4 2.5-3.5
GP-2 6.3 500 4.5-5.5 95 3.0×10-4 2
GP-3 4.3 700 8-10 87 4.5-6.5×10-4 1.3-2.4
GP-4 Insert 1000 15.0-17.0 75 5.0-7.1×10-4 0.9-1.4

Application: Often used in the difficult separation of heat sensitive material, atmospheric distillation, vacuum distillation and absorption processes.

Metal Wire Mesh Structured Packing Column Without Channeling Of Liquid
