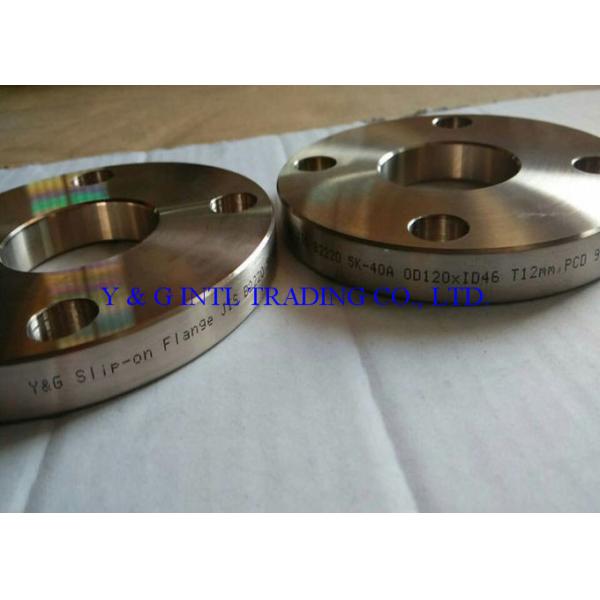

Fittings and Flanges Forged Slip on Flange Carbon Steel / Stainless Steel / Cu Ni Flange

Pipe flanges are protruding rims, edges, ribs, or collars used to make a connection between two pipes or between apipeand any type of fitting or equipment component. Pipe flanges are used for dismantling piping systems, temporary or mobile installations, transitions between dissimilar materials, and connections in environments not conducive to solvent cementingA.

Slip-on flanges are a popular type of pipe flanges. These are type of flanges that slide over the end of piping and then welded in place. These flanges are ideal for lower pressure applications. These are easily fitted and welded into different pipes. Welding reduces fabrication costs of these pipes. These are available in wide variety of sizes and applications.

Standard: ANSI B16.5,ANSI B16.47 A/B,BS 3293,BS 4504,JIS,HG,EN1092,DIN,GB9112,AWWA C207

JIS B2313...

Materials: Stainless Steel, Carbon Steel, Copper...

Size(Seamless): 1/2’’~ 48’’(DN15 ~ DN1200)

Pressures :150#,300#,400#,600#,900#,1500#,PN10,PN16,PN25,PN40;JIS 5K,JIS 10K.

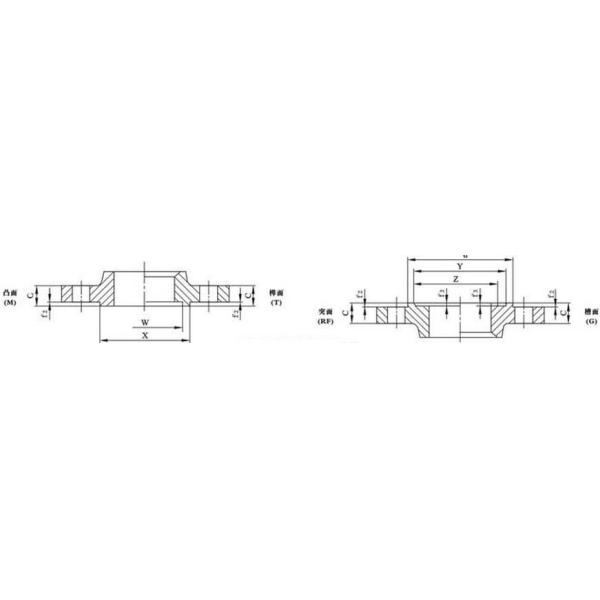

Drawing:

Features :
One size fits all pipe schedules.
Fabricators can more easily cut pipe to length for slip-on flanges.
The smaller thickness of this flange allows for easier alignment of bolting holes.
They are generally not preferred for high pressure temperature environments.

Advantages:
Low cost installation
Less time needed to spent on ensuring the accuracy of the cut pipe
they are somewhat easier to align
the slip-on flanges have low hub because the pipe slips into the flange before welding
the flange is welded both inside and outside to provide sufficient strength
they prevent leakage

Application: Due to its good comprehensive performance, flange is widely used in basic projects such as chemicals, construction, water supply, drainage, petroleum, heavy and heavy industries, refrigeration, hygiene, water heating, fire protection, electricity, aerospace, and shipbuilding.
