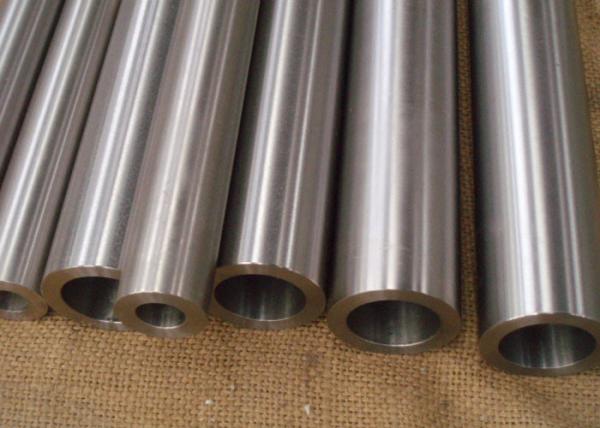

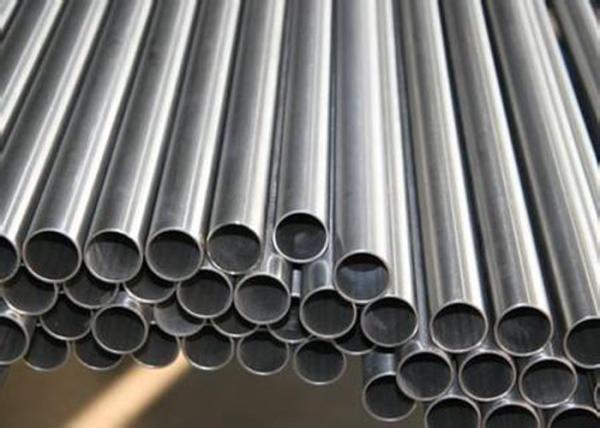

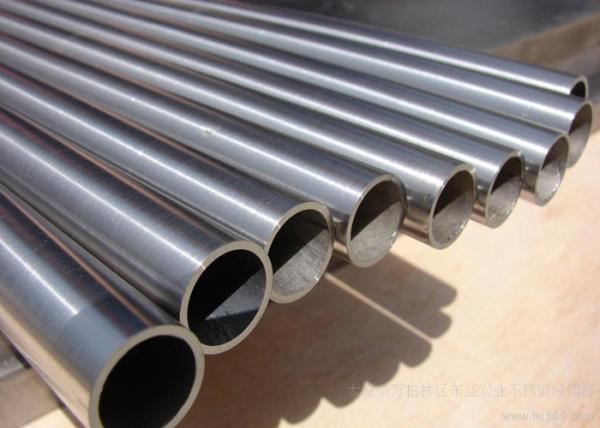

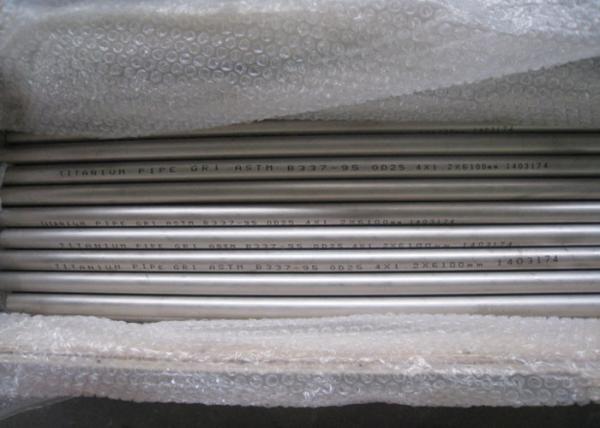

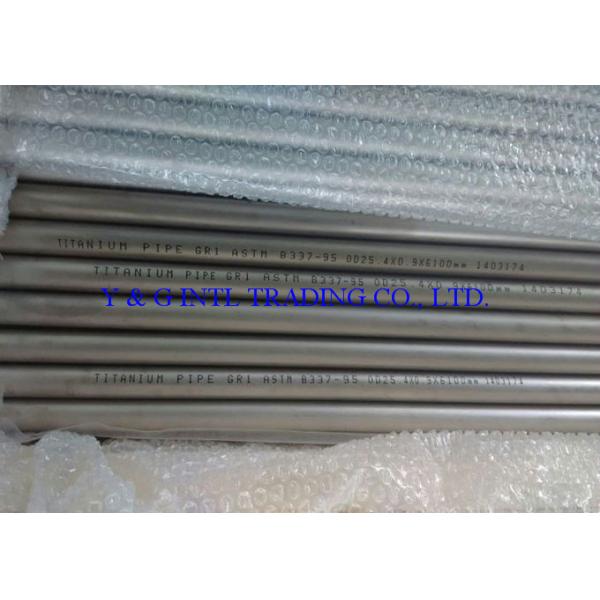

ASTM B337 B338 Titanium Alloy Pipe Seamless / Welded Grade 1 Condenser Pipe Thin Wall
ASTM B337 B338 Titanium Alloy Pipe Seamless / Welded Grade 1 Condenser Pipe Thin Wall
ASTM B337 B338 Titanium Alloy Pipe Seamless / Welded Grade 1 Condenser Pipe Thin Wall
ASTM B337 B338 Titanium Alloy Pipe Seamless / Welded Grade 1 Condenser Pipe Thin Wall
ASTM B337 B338 Titanium Alloy Pipe Seamless / Welded Grade 1 Condenser Pipe Thin Wall
ASTM B337 B338 Titanium Alloy Pipe Seamless / Welded Grade 1 Condenser Pipe Thin Wall
ASTM B337 B338 Titanium Alloy Pipe Seamless / Welded Grade 1 Condenser Pipe Thin Wall
ASTM B337 B338 Titanium Alloy Pipe Seamless / Welded Grade 1 Condenser Pipe Thin Wall
ASTM B337 B338 Titanium Alloy Pipe Seamless / Welded Grade 1 Condenser Pipe Thin Wall
ASTM B337 B338 Titanium Alloy Pipe Seamless / Welded Grade 1 Condenser Pipe Thin Wall
Specifications
Brand Name :
Y & G
MOQ :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
8000MT/Month
Delivery Time :
25-35 days
Packaging Details :
Exporting package/wooden box / per customers’ requirement
Price :
Negotiable
Material :
Titanium Gr. 1
Standard :
ASTM B337,B338
Technique :
Seamless,Welded
OD :
3~114mm
Wall Thickness :
1~6mm
Surface Treatment :
Varnish, Oil-dip, Passivation, Phosphating, Shot Blasting
Delivery Status :
Annealed, normalized, normalized+Tempered, etc
Description

ASTM B337 B338 Titanium Alloy Pipe Seamless / Welded Grade 1 Condenser Pipe Thin Wall

Product Standard: ASTM B337 B338 ASTM B 861-2005

Grades: Grade 1.

Characteristics:

Ti Grade 1 is the softest titanium with the highest ductility, good cold formability which gives Ti Grade 1 an excellent resistance from mild to high oxidization.

Application:

Chemical processing

Chlorate manufacturing

Dimensional stable anodes

Desalination

Architecture

Medical industry

Marine industry

Automotive parts

Airframe structure

Chemical composition & Mechanical properties:

Grade Chemical composition
1 O N C H Fe AL V Ni Mo Pd Others Residuals Ti
0.18Max. 0.03Max 0.08Max 0.015Max. 0.20Max 0. 4Max. Bal

Grade Tensile strenght (mpa, min) Yield strength (0.2% offset mpa, min) Elongation (%, min) Density / weight (g / cm3 / kg)
1

35 KSI min (240 MPa min )

25-45 KSI (170-310 MPa )

 24 /

Mark: As required.

Inspection and Test: chemical composition test, mechanical properties test(tensile, yield, elongation), process properties test(flatting, flaring, bending, hardness, impact, etc.), appearance and size test, non-destructive inspection test, hydrostastic test.

Delivery status: Annealed, normalized, normalized+Tempered, etc.

Surface treatment: oil impregnation, paint, passivation, phosphating, shot blasting etc.

Packing: Exporting package/wooden box /as requirement.

ASTM B337 B338 Titanium Alloy Pipe Seamless / Welded Grade 1 Condenser Pipe Thin Wall
