Big Diameter Cupro Nickel Tubes , Cu Ni 70 30 C71500 Polished Brass Tubing
Big Diameter Cupro Nickel Tubes , Cu Ni 70 30 C71500 Polished Brass Tubing
Big Diameter Cupro Nickel Tubes , Cu Ni 70 30 C71500 Polished Brass Tubing
Big Diameter Cupro Nickel Tubes , Cu Ni 70 30 C71500 Polished Brass Tubing
Big Diameter Cupro Nickel Tubes , Cu Ni 70 30 C71500 Polished Brass Tubing
Big Diameter Cupro Nickel Tubes , Cu Ni 70 30 C71500 Polished Brass Tubing
Big Diameter Cupro Nickel Tubes , Cu Ni 70 30 C71500 Polished Brass Tubing
Big Diameter Cupro Nickel Tubes , Cu Ni 70 30 C71500 Polished Brass Tubing
Big Diameter Cupro Nickel Tubes , Cu Ni 70 30 C71500 Polished Brass Tubing
Big Diameter Cupro Nickel Tubes , Cu Ni 70 30 C71500 Polished Brass Tubing
Specifications
Brand Name :
Y&G
MOQ :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
8000MT per month
Delivery Time :
25~35days
Packaging Details :
Wooden cases, weave strips,as requirement.
Price :
Negotiable
Material :
C71500
Standard :
B111, B466-18
Application :
Ferrules, Oil Well Pump Liner
Technique :
Seamless
OD :
5-350mm
Wall thickness :
0.5-50mm or Customised
Packing :
Exporting package/wooden box /as requirement.
Description

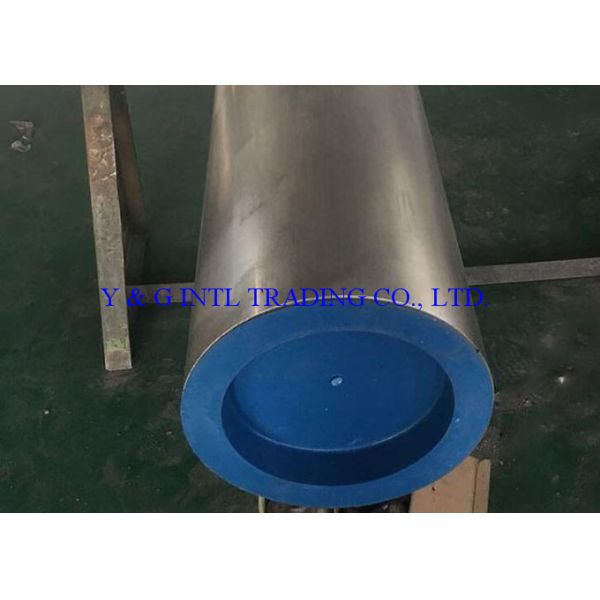

Copper - Nickel Alloy Tube CuNi30Fe1Mn Seamless Copper Nickel Pipe Cu Ni 70 30 C71500 Big Diameter Tube OD219.1mm​

Dimensions:

Outer diameter:5-350mm

Wall thickness: 0.5-50mm according to the buyers' requirements,

Standard: EEMUA 144, ASTM B466 B111, GB/T 26291 etc.

Copper Nickel Tube Symbol:

Grade USA UK Germany Japan
China GB UNS EN DIN No JIS
BFe 30-1-1 C71500 CuNi30Mn1Fe CW354H CuNi30Mn1Fe 2.8820 C7150

Chemical Composition & Mechanical Properties:

Standard Chemical Composition
Cn Sn Al As Ni Fe Mn Pb B P Si S C Zn Other
C71500 Rem 29.0-33.0 0.4-1.0 1.0 Max 0.05Max 1.0Max

Mechanical Properties Metric English
Density 8.94 g/cc 0.323 lb/in³
Tensile Strength min.- O61 -/- HR50 360 MPa -/- 495 MPa 52 ksi -/- 72 ksi
Yield Strength min.- O61 -/- HR50 125 MPa -/- 345 MPa 18 ksi -/- 50 ksi
CTE, linear 16.2 10-6/°C @ 20.0 – 300 °C 9.0 10-6/°F @ 70.0 – 570 °F
Specific Heat Capacity 0.09 cal/g-°C @ 20ºC 0.09 BTU/lb-°F @ 70ºF
Thermal Conductivity 29 W/m-K @ 20.0 °C 17 BTU/ft2/ft/h/°F @ 70.0 °F
Melting Point 1171 – 1238 °C 2140 – 2260 °F

Application: Copper-Nickel Alloy tube widely used for condenser and heat ex-changers, Water Evaporators, Boiler Blow down Heat Ex-changers, air coolers,Gland Steam Condensers, Steam Ejector, Turbine Oil Coolers, Fuel Oil Heaters,Compressed Air Inter and After Coolers, Ferrules, Oil Well Pump Liner, and Distiller etc.

Mark: As required.

Big Diameter Cupro Nickel Tubes , Cu Ni 70 30 C71500 Polished Brass Tubing
