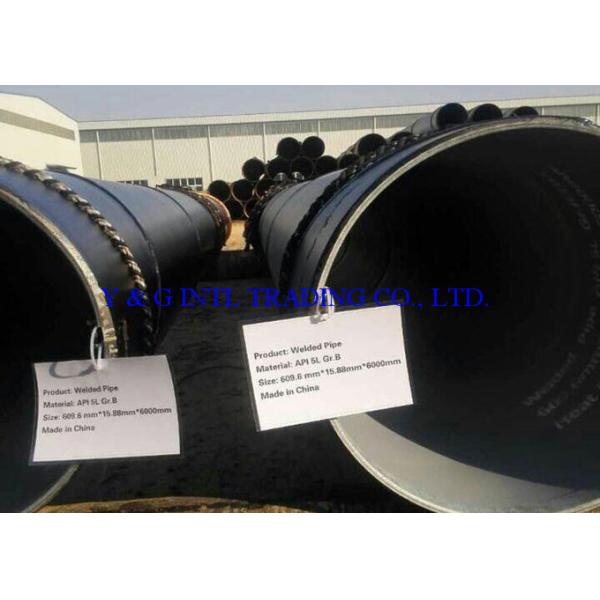

Anti Wear Carbon Steel Line Pipe API 5L Grade B For Petroleum Transportation
Anti Wear Carbon Steel Line Pipe API 5L Grade B For Petroleum Transportation
Anti Wear Carbon Steel Line Pipe API 5L Grade B For Petroleum Transportation
Anti Wear Carbon Steel Line Pipe API 5L Grade B For Petroleum Transportation
Anti Wear Carbon Steel Line Pipe API 5L Grade B For Petroleum Transportation
Anti Wear Carbon Steel Line Pipe API 5L Grade B For Petroleum Transportation
Anti Wear Carbon Steel Line Pipe API 5L Grade B For Petroleum Transportation
Anti Wear Carbon Steel Line Pipe API 5L Grade B For Petroleum Transportation
Anti Wear Carbon Steel Line Pipe API 5L Grade B For Petroleum Transportation
Anti Wear Carbon Steel Line Pipe API 5L Grade B For Petroleum Transportation
Specifications
Brand Name :
Y & G
MOQ :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
8000MT/Month
Delivery Time :
25-35 days
Packaging Details :
Exporting package/wooden box / per customers’ requirement
Price :
Negotiable
Material :
X60,X65,X70,X80
Standard :
API SPEC 5L, ISO 3183
OD :
10.29mm ~ 609mm
Wall Thickness :
SCH10-SCH140
Application :
Pipeline transportation systems in the petroleum and natural gas industries
Package :
Exporting package/ per customers’ requirement
Description

Steel Line Pipe Seamless Carbon Steel Line Pipes API 5L Grade B For Petroleum Transportation

Pipeline is the extraction of oil, gas and water from the ground through the pipeline to the oil and gas industry. Pipeline consists of seamless pipe and welded steel pipe with flat ends, threaded ends and socket ends. Way for the welding, coupling connections, socket connections.

Standard: API SPEC 5L, ISO 3183,GB/T 9711.1-199

Grades: A53,A25,A,B,X42,X46,X52,X56,X60,X65,X70,X80...

Product Specification Level: PSL-1,PSL-2

Size Range: 10.29 mm to 609mm.

NPS IN OD MM Sch10 Sch20 Sch30 STD Sch40 Sch60 Sch80 XS Sch100 Sch120 Sch140
1/8 10.29 - - - 1.73 1.73 - 2.41 2.41 - - -
1/4 13.72 - - - 1.73 1.73 - 3.02 3.02 - - -
3/8 17.14 - - - 2.31 2.31 - 3.2 3.2 - - -
1/2 21.34 - - - 2.77 2.77 - 3.73 3.73 - - -
3/4 26.67 - - - 2.87 2.87 - 3.91 3.91 - - -
1 33.4 - - - 3.38 3.38 - 4.55 4.55 - - -
1 1/4 42.16 - - - 3.56 3.56 - 4.85 4.85 - - -
1 1/2 48.26 - - - 3.68 3.68 - 5.08 5.08 - - -
2 60.32 - - - 3.91 3.91 - 5.54 5.54 - - -
2 1/2 73.02 - - - 5.16 5.16 - 7.01 7.01 - - -
3 88.9 - - - 5.49 5.49 - 7.62 7.62 - - -
3 1/2 101.6 - - - 5.74 5.74 - 8.08 8.08 - - -
4 114.3 - - - 6.02 6.02 - 8.56 8.56 - 11.12 -
5 141.3 - - - 6.55 6.55 - 9.53 9.53 - 12.7 -
6 168.3 - - - 7.11 7.11 - 10.97 10.97 - 14.27 -
8 219.1 - 6.35 7.04 8.18 8.18 10.31 12.7 12.7 15.09 18.26 20.62
10 273.1 - 6.35 7.8 9.27 9.27 12.7 12.7 12.7 18.26 21.44 25.4
12 323.9 - 6.35 8.38 9.52 10.3 14.27 12.7 12.7 21.44 25.4 28.58
14 355.6 6.35 7.92 9.52 9.52 11.13 15.09 12.7 12.7 23.83 27.79 31.75
16 406.4 6.35 7.92 9.52 9.52 12.7 16.66 12.7 12.7 26.19 30.96 36.52
18 457.2 6.35 7.92 11.12 9.52 14.27 19.05 12.7 12.7 29.36 34.92 39.47
20 508 6.35 7.92 12.7 9.52 15.09 20.62 12.7 12.7 32.54 38.1 44.45
22 558.8 6.35 7.92 12.7 9.52 - 22.22 12.7 12.7 34.92 41.28 47.62
24 609.6 6.35 7.92 14.27 9.52 17.48 24.61 12.7 12.7 38.89 46.02 52.37

Application: This is steel pipe for pipeline transportation systems in the petroleum and natural gas industries. API 5L is suitable for conveying gas, water, and oil.

Anti Wear Carbon Steel Line Pipe API 5L Grade B For Petroleum Transportation
