Corrosion Resistance 90 Mpa Bipolar Plate For Hydrogen Fuel Cell
Corrosion Resistance 90 Mpa Bipolar Plate For Hydrogen Fuel Cell
Specifications
Brand Name :
SGI
Model Number :
Customized products without models
Certification :
ISO , CE
Place of Origin :
china
MOQ :
10pcs
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
1000pcs per day
Delivery Time :
10-25 working day
Packaging Details :
wodden cartons or meet customers' requirements
C Content (%) :
99.9%
Material :
High Purity Graphtite
Thickness :
Customers' Demand
Application :
battery, fuel cell as bipolar plates
Description

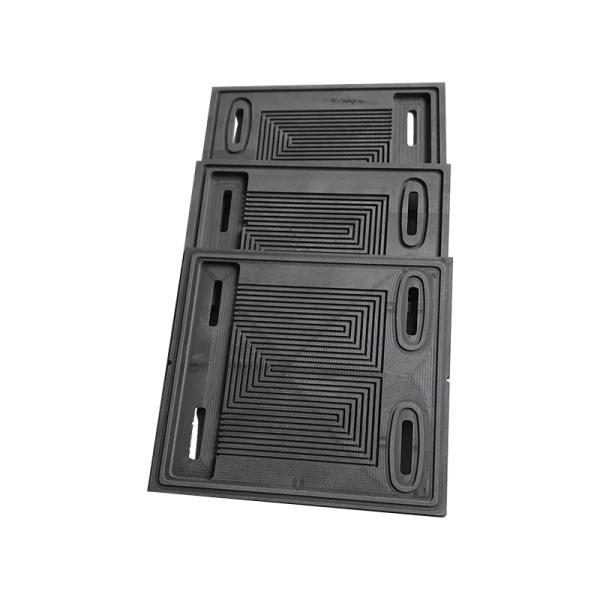

Graphite Bipolar Plate for Hydrogen Fuel Cell

We have developed cost- effective graphite bipolar plates for PEMFC which requires the use of advanced bipolar plates with high electrical conductivity and good mechanical strength. Our bipolar plates allow fuel cells to operate at high temperatures and have excellent electrical and thermal conductivity.

We offer the graphite material with impregnated resin in order to achieve gas impermeability and high strength. But the material retains the favorable properties of graphite in terms of high electrical conductivity and high thermal conductivity.

We can machine the bipolar plates on both sides with flow fields, or machine single side or provide unmachined blank plates as well. All graphite plates could be machined as per your detailed design.

Graphite Bipolar Plates Material Datasheet:

Material Bulk Density Flexural
Strength		 Compressive Strength Specific Resistivity Open Porosity
GRI-1 1.9 g/cc min a45 Mpa min 90 Mpa min 10.0 micro ohm.m max 5% max
More grades of graphite materials are available to select according to specific application.

Features:
- Impermeable to gases ( hydrogen and oxygen)
- Ideal electrical conductivity
- A balance between conductivity, strength, size and weight
- Resistance to corrosion
- Easy to produce in bulk Features:
- Cost-effective
