SHP Grade 5.8 Microns Graphite Electrode Rod For Making Arc Furnace
SHP Grade 5.8 Microns Graphite Electrode Rod For Making Arc Furnace
Specifications
Brand Name :
SGI-GRAPHITES
Place of Origin :
shanghai
Price :
negotiable
Model Number :
Customized products without models
Certification :
ISO , CE
MOQ :
10pcs
Payment Terms :
T/T
Supply Ability :
1000pcs per day
Delivery Time :
10-25 working day
Packaging Details :
wodden cartons or meet customers' requirements
Type :
Electrode Block
Application :
steel making arc furnace
Grade :
SHP (Super High Power )
Resistance :
4.8 to 5.8 microns
Thermal Expansion :
1.1 to 1.4
Flexural Strength :
10-14 mpa

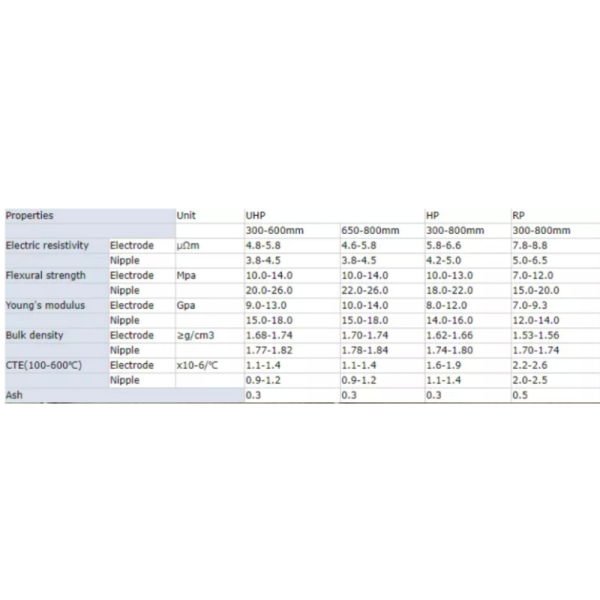

Description

High carbon upper and lower graphite electrodes

Model Number ultra-high pressure
Type Electrode Block
Application steel making arc furnace
Length 1500 mm to 2700 mm
Grade SHP (Super High Power )
Resistance 4.8 to 5.8 microns
Apparent Density (g/cm3 ) 1.68 to 1.75 grams per cubic centimeter
Thermal Expansion 1.1 to 1.4
Flexural Strength 10-14 mpa

Product Introduction

1.To Place the nipples, first use compressed air to clean the hole, then carefully screwed the nipples into it (do not damage the thread).

2.To connect the electrodes, when there's 20-30mm distance between the two electrodes, using compressed air to clean the two extremes.

3.Connector locations should be selected c-map.

4.When use the wrenches to connect electrodes, should be fully tighten to specified torque.

5.To avoid electrode broken, please remove the insulating material in the furnace.

6.To avoid electrode broken, pls. place the big block in the lower and smaller block at the upper. We can manafacture and export graphite electrodes in different grade ,shape and dimension.Whenever you need it ,please feel free to let us know.we promise you the top quality and lower price.
