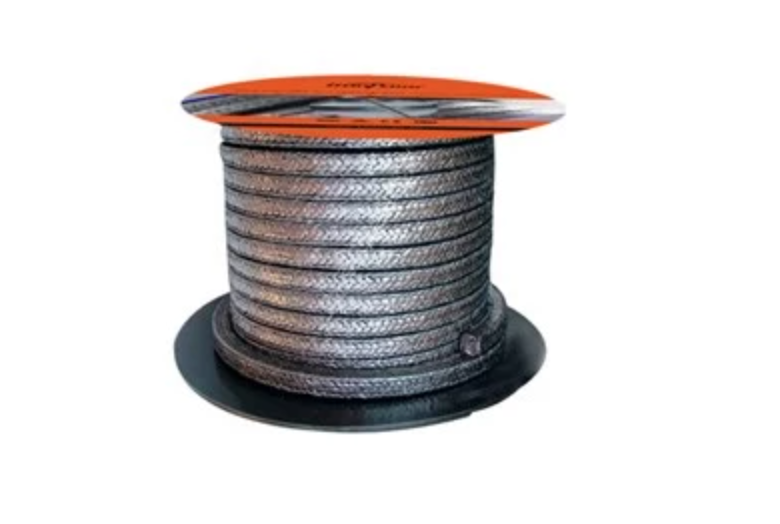

Flexible 400bar Graphite Rope Packing With Inconel Wire Mesh
Flexible 400bar Graphite Rope Packing With Inconel Wire Mesh
Specifications
Brand Name :
SGI-GRAPHITES
Place of Origin :
shanghai
Price :
negotiable
Model Number :
Customized products without models
Certification :
ISO , CE
MOQ :
10pcs
Payment Terms :
T/T
Supply Ability :
1000pcs per day
Delivery Time :
10-25 working day
Packaging Details :
wodden cartons or meet customers' requirements
Color :
Black
Density :
1.1-1.4g/cm3
Temperature :
550C
Pressure :
400bar
PH Value :
0-14
Application :
high temperature and high pressure
Description

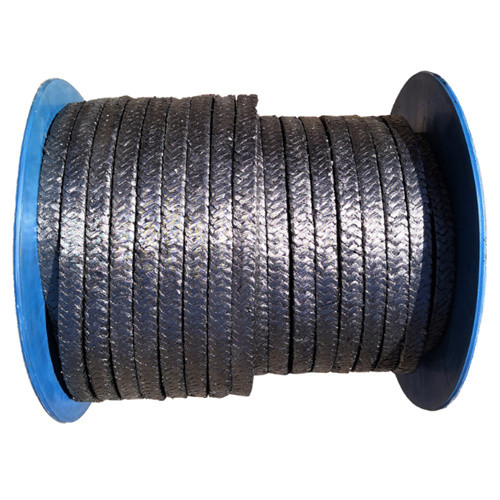

Stuffing Rope Graphite Packing Pure Flexible Graphite Gland Packing With Inconel Wire Mesh

Pure Flexible Graphite Gland Packing With Inconel Wire Mesh Description:

1. Braided from low-sulphur expanded graphite yarns, reinforced with Inconel wire.

2. It retains all the inherent benefits of 2060 pure graphite packing, good thermal and chemical resistance, very low friction.

3. The wire reinforcement also provides greater mechanical strength.'

4. Normal for valve with high pressure.

5. Other metal materials, nickel, stainless steel etc. on request.

Pure Flexible Graphite Gland Packing With Inconel Wire Mesh Specification:

Valves Agitators
Pressure 400 bar 50 bar
Shaft speed 2m/s 2m/s
Density 1.1~1.4g/cm3 (+3% for 2061K)
Temperature -220~+550°C (+650°C with steam)
PH range 0~14

Our Services

1. Your inquiry related to our products or prices will be replied within 24 hours

2. Well-trained and experienced staffs to answer all your inquiries in fluent English.

3. All our products have 1-year warranties.

4. Offering the support to solve the problem in the application or selling period.

5. Competitive prices based on same quality.

6. Guarantee samples quality same as mass production quality.

FAQ

1. What is your MOQ?

MOQ may vary by customer's special requirement; we try our best to meet your business requirement.

2. What's your payment terms?

We normally do T/T, and we can also offer western union account for transfer money.
And more flexible payment terms, welcome to have a discuss.

3. Can you provide samples?

A: Yes, we can offer samples, and some samples are free

4. Can you delivery by express?

Yes, we can delivery by any express.

5. When will the sample be ready?

Normally, the sample can be ready in 3 days.
