ACMCC Conductor Fittings Hydraulic Pressure Splice Protection Sleeve
ACMCC Conductor Fittings Hydraulic Pressure Splice Protection Sleeve
ACMCC Conductor Fittings Hydraulic Pressure Splice Protection Sleeve
ACMCC Conductor Fittings Hydraulic Pressure Splice Protection Sleeve
Specifications
Place of Origin :
Chinese Mainland
Brand Name :
Xinyuan Hengye
MOQ :
Custom requirements
Packaging Details :
wooden case packaging
Delivery Time :
According to the customer's minimum order quantity
Payment Terms :
L/C,T/T,D/A,D/P,Western Union
Supply Ability :
10000 Piece/Pieces per Month
Name :
Conductor Fittings
Material :
Aluminium Alloy
Key Benefits :
Lightweight, High strength, Corrosion Resistant
Applications :
Power transmission, High-voltage applications
Description

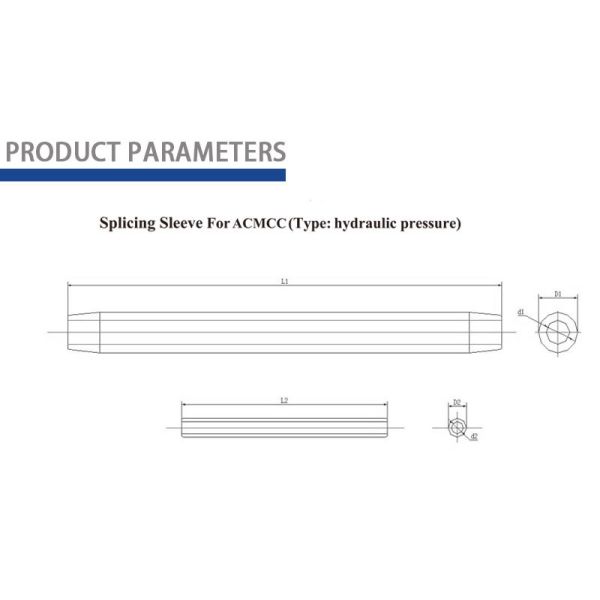

Splicing Sleeve For ACMCC (Type: hydraulic Pressure)
Guangdong Xinyuan Hengye Power Transmission Device Co., Ltd. is South China’s first high-tech enterprise specializing in high-voltage power transmission equipment. Established in November 2009, we have spent over a decade advancing from manufacturing excellence to craftsmanship in R&D and innovation, with a focus on advanced solutions such as Aluminum Conductor Multi-Strand Carbon Fiber Core (ACMCC) and overhead transmission line fittings.
Key Performance Benefits
  • Simple Structure: The special tension clamps and splicing sleeves used for ACMCC conductors are highly consistent in structural style with those for ACSR conductors.
  • Strong Versatility of Crimping Process: The hydraulic crimping process and crimping dies for the tension clamps and splicing sleeves of ACMCC conductors are identical to those of ACSR conductors, requiring no additional special tools.
  • High Current - Bearing Capacity: The aluminum sleeve adopted for ACMCC conductors has a larger outer diameter than that used for ordinary ACSR conductors, allowing it to carry a larger transmission current. When necessary, a double - plate reinforced drainage plate can also be adopted to further improve the current - carrying capacity of the product.
  • Low Stress Concentration on Conductors at the pipe opening: Conductors at the outlet of ordinary aluminum sleeves are prone to stress concentration, which may lead to problems such as fatigue fracture and insufficient gripping force. The pipe opening of our products are designed with long slopes. During crimping, these slopes help disperse the stress on the conductor in the outlet area of the aluminum sleeve and reduce the stress concentration on the conductor at the pipe opening.
Target Industries & Applications: Power transmission and distribution systems, grid modernization upgrades, long-span crossings, high-voltage applications, large cross-section conductor requirements
Product Specifications
Brand
Guangdong Xinyuan Hengye Power Transmission Device Co.,Ltd.
FOB Unit
Custom quotation available
Minimum Order Quantity
Custom requirements
Packaging & Delivery
Custom solutions
