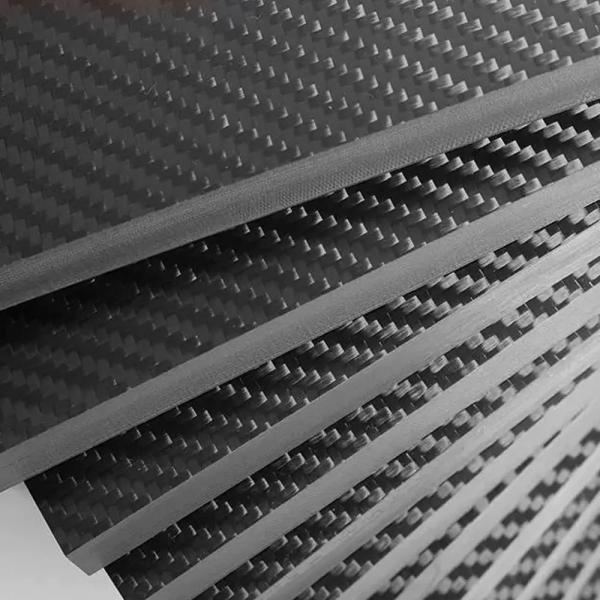

High Quality 1000 mm x 1000 mm x 1.5 mm Thick Carbon Fiber Plate
High Quality 1000 mm x 1000 mm x 1.5 mm Thick Carbon Fiber Plate
High Quality 1000 mm x 1000 mm x 1.5 mm Thick Carbon Fiber Plate
High Quality 1000 mm x 1000 mm x 1.5 mm Thick Carbon Fiber Plate
High Quality 1000 mm x 1000 mm x 1.5 mm Thick Carbon Fiber Plate
High Quality 1000 mm x 1000 mm x 1.5 mm Thick Carbon Fiber Plate
High Quality 1000 mm x 1000 mm x 1.5 mm Thick Carbon Fiber Plate
High Quality 1000 mm x 1000 mm x 1.5 mm Thick Carbon Fiber Plate
Specifications
Brand Name :
Tanku
Model Number :
TM_340mm_410mm_2.5mm
Certification :
SGS, ROHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, PayPal,Western Union , L/C
Supply Ability :
1500pcs month
Delivery Time :
7 working days after receiving Order Payment
Packaging Details :
Normal Corrugated Carton Packing for International Shipment
Product :
Thick Carbon Fiber Plate
Thickness :
0.25mm-4mm
Material :
3K Carbon Fiber
Surface :
Glossy/Matte
Weave :

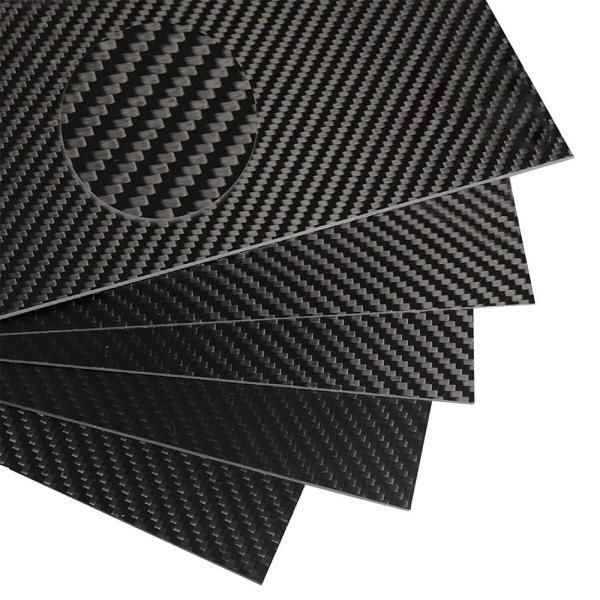

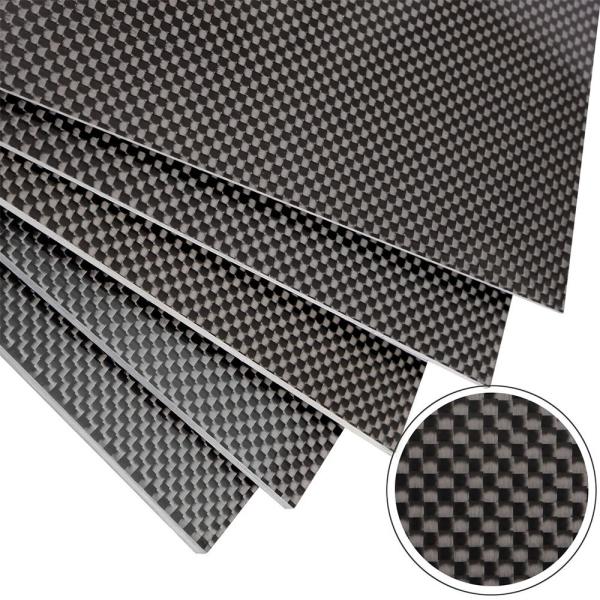

Twill/Plain
Tensile Strength :
3200Mpa
Product Type :
Carbon Fiber Board/ Panels
Features :
Lightweight and Durable
Description

High Quality 1000 mm x 1000 mm x 1.5 mm Thick Carbon Fiber Plate

High-quality carbon fiber sheet made from carbon fiber and epoxy resins. The sheet is made from 100% carbon fiber (also known as full carbon), recommended in particular for construction purposes where high bending strength and stiffness are crucial.

Advantages

  • Sheet made with advanced infusion technology (in vacuum) that ensures stiffness improved by approximately 30% compared to manually produced sheets.
  • Made from high-quality 100% carbon fiber.
  • Mirror-like perfect gloss of the top layer.
  • Extraordinary appearance, without any defects related to air micro bubbles (pinholes) – widespread in the case of manually produced sheets.
  • Low weight – only ~ 2.19 kg (5.35 lb).
  • The sheet is cured in production at 50 °C to improve bending strength, stiffness, and thermal resistance up to 70 °C.
  • Cut to dimensions with a CNC machining center, which ensures stable and precise dimensions.
  • Easily cutting with traditional tools such as a scroll saw, blade, or grinder.

Carbon fiber sheet with two different finishes: one of perfect mirror-like gloss and smoothness and the other is a matt side that is perfect for adhesive bonding.

  • Dimensions: 1000 mm x 1000 mm (1 x 1 meter) / 39.4 inch x 39.4 inch.
  • Thickness: 1.5 mm / 0.059 inch (+0.2 mm tolerance).
  • Thickness tolerance: 0.2mm thickness tolerance ensured by infusion technology. Consequently, the sheet 1.5 mm may be from 1.5 mm to 1.7 mm thick.
  • Fiber orientation: 2/2.
  • Finish: one-sided gloss, protection against UV, mat reverse side with surface ready for assembly with adhesive bonding.

Features

  • Choosing Toray or Tairyfil carbon fiber material, which is from Japan or Taiwan.
  • Every carbon fiber Veneer is fabricated with a single layer of high-strength 100% carbon fiber prepreg with 0/90 fiber orientation.
  • 45 degrees is available based on your needs.
  • Special technology ensures the flawless Gloss on both sides.
  • Offer CNC cut service based on your drawing, and sign an NDA agreement to keep the secret of your design.

We are the professional carbon fiber sheets manufacturer in China, the thickness straight carbon fiber sheets plates we can manufacture is more than 60mm. Meanwhile various size can be offered,such as 2'X4' / 4'X8' / 12''X12'' / 24''X24'' / 24''X48'' / 48''X96'' carbon fiber laminated sheets.​All these rigid carbon fiber plate panels can be cut to size based on your requirements.

​

Carbon Fiber Sheet Plate Specification:

Item Name

Thickness

Length & Width

Weave

Finish

SKU Code

N.W.

Regular MOQ

1st Order MOQ

Ship From

05005060, Full CF Plate, Plain Weave,6K, Matte, TT

5

500mm*600mm

Twill

Glossy

TG05005060PLTFCF3KTT

2.48

5

1

China factory

04005060, Full CF Plate, Plain Weave,5K, Matte, TT

4

500mm*600mm

Twill

Glossy

TG04005060PLTFCF3KTT

1.94

5

1

China factory

03005060, Full CF Plate, Plain Weave,4K, Matte, TT

3

500mm*600mm

Twill

Glossy

TG03005060PLTFCF3KTT

1.46

5

1

China factory

02505060, Full CF Plate, Plain Weave,3K, Matte, TT

2.5

500mm*600mm

Twill

Glossy

TG02505060PLTFCF3KTT

0

5

1

China factory

02005060, Full CF Plate, Plain Weave,3K, Matte, TT

2

500mm*600mm

Twill

Glossy

TG02005060PLTFCF3KTT

0.96

5

1

China factory

01505060, Full CF Plate, Plain Weave,3K, Matte, TT

1.5

500mm*600mm

Twill

Glossy

TG01505060PLTFCF3KTT

0.73

5

1

China factory

01005060, Full CF Plate, Plain Weave,3K, Matte, TT

1

500mm*600mm

Twill

Glossy

TG01005060PLTFCF3KTT

0.53

5

1

China factory

High Quality 1000 mm x 1000 mm x 1.5 mm Thick Carbon Fiber PlateHigh Quality 1000 mm x 1000 mm x 1.5 mm Thick Carbon Fiber PlateHigh Quality 1000 mm x 1000 mm x 1.5 mm Thick Carbon Fiber PlateHigh Quality 1000 mm x 1000 mm x 1.5 mm Thick Carbon Fiber PlateHigh Quality 1000 mm x 1000 mm x 1.5 mm Thick Carbon Fiber Plate
